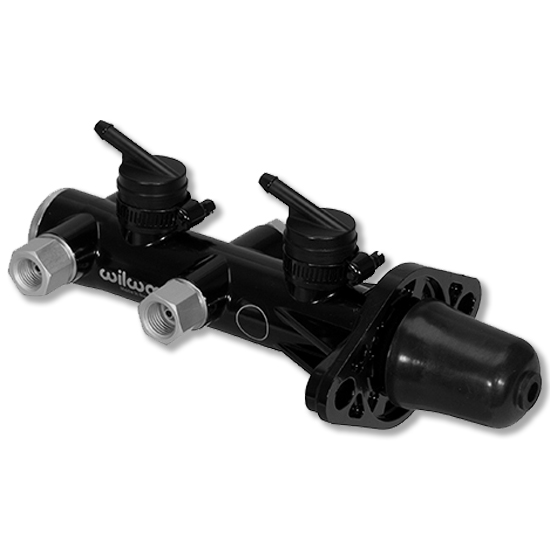

Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black
Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black

Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black

Disc/Drum Brake System Type, Tandem/Both Sides Outlet Count, Remote Reservoir Type, Black

0 Reviews | 0 Answered Questions
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black
Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black
Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black
Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black
Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black
Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black
X
Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black
Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black
Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black
Wilwood 260-14243-BK Remote Tandem Master Cylinder, Black
Zoomed In Image
Wilwood estimates this item will ship on or before April 15th.
Part # 83526014243BK
Save 7%
$259.21
$279.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Features a 1” bore that can be used in manual and power assisted applications and does not come with a pushrod
  • The mounting flanges measure from 3.22" to 3.40"
  • Will fit most domestic cars and trucks from the mid-1960s to present
  • There are fluid ports located on both sides of the bore
  • It is fully machined of high-pressure die castings and has a black e-coat finish for added protection

Details

Brake System Type:
Disc/Drum
Outlet Count:
Tandem/Both Sides
Reservoir Type:
Remote
Master Cylinder Bore Size:
1 Inch
Stroke:
1.12"
Master Cylinder Material:
Aluminum
Finish:
Black E-Coat
Color:
Black
Reservoir Included:
Yes
Number of Mounting Holes:
2
Reservoir Material:
ABS Plastic
Reservoir Size (cu in):
12.6
Fluid Capacity:
7.0 oz.
Area:
0.78 sq. in.
Master Cylinder Cap Included:
Yes
Hardware Included:
No
Pushrods Included:
Yes
Mounting Bracket Included:
Yes
Outlet Fitting:
3/8"-24 IFF or 1/2"-20 IFF
Outlet Fitting 2:
3/8-24 IF or 9/16-18 IF
Overall Length:
7.16"
Mounted Length:
6.56"
Centerline of Holes:
3.22"
Hose ID:
0.25"
MFG. Part #:
260-14243-BK
Sold in Quantity:
Kit
GTIN Code:
889545078152

Info

Wilwood’s Remote Black Tandem Master Cylinder features a 1” bore that can be used in manual and power assisted applications and does not come with a pushrod. The mounting flanges measure from 3.22" to 3.40" which is common for domestic cars and trucks from the mid-1960s to present.

  • Fluid Ports located on both sides of the bore
  • Machined of high-pressure die castings
  • Sold each

Wilwood Master Cyliner Instructions

Specs

Overall Length(in): 7.16"

Flange to End Length (in): 6.56"

Inlet Size (in): .87" or 11/16"-20

Inlet Fit (in): 1/4" Hose

Outlet Size 1 (in): 1/2"-20

Outlet Fit 1 (in): 3/8"-24 IF or 1/2"-20 IF

Outlet Size 2 (in): 1/2"-20

Outlet Fit 2 (in): 3/8"-24 IF or 9/16"-18 IF
