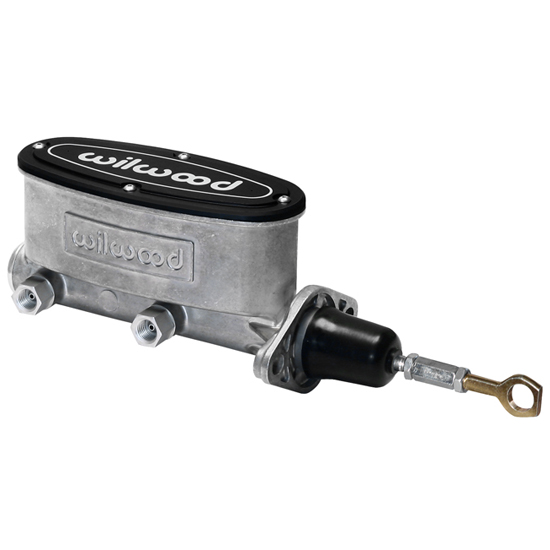

Wilwood 260-14157 Aluminum Master Cylinder, Mustang 64-72 Mustang
Wilwood 260-14157 Aluminum Master Cylinder, Mustang 64-72 Mustang

Wilwood 260-14157 Aluminum Master Cylinder, Mustang 64-72 Mustang

Firewall Position, Disc Brake System Type, Tandem Outlet Count, Integral Reservoir Type, Bare

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 260-14157 Aluminum Master Cylinder, Mustang 64-72 Mustang
Wilwood 260-14157 Aluminum Master Cylinder, Mustang 64-72 Mustang
Wilwood 260-14157 Aluminum Master Cylinder, Mustang 64-72 Mustang
Wilwood 260-14157 Aluminum Master Cylinder, Mustang 64-72 Mustang
X
Wilwood 260-14157 Aluminum Master Cylinder, Mustang 64-72 Mustang
Wilwood 260-14157 Aluminum Master Cylinder, Mustang 64-72 Mustang
Zoomed In Image
We estimate this item will ship on or before May 17th.
Part # 83526014157
Save 5%
$216.61
$229.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Firewall
Brake System Type:
Disc
Outlet Count:
Tandem
Reservoir Type:
Integral
Master Cylinder Bore Size:
1-1/8 Inch
Stroke:
1.1"
Master Cylinder Material:
Aluminum
Finish:
Bare
Color:
Natural
Reservoir Included:
Yes
Number of Mounting Holes:
2
Reservoir Material:
Aluminum
Reservoir Size (cu in):
14.4 or 8.7
Fluid Capacity:
8.0 / 4.8 fl oz.
Area:
0.69 sq. in.
Pushrods Included:
Yes
Outlet Fitting:
3/8-24 IF or 1/2-20 IF
Outlet Fitting 2:
3/8-24 IF or 9/16-18 IF
Overall Length:
13.65"
Mounted Length:
8.15"
Centerline of Holes:
3.2"
MFG. Part #:
260-14157
Sold in Quantity:
Each
GTIN Code:
889545076851

Info

Wilwood’s Tandem Aluminum Master Cylinder for Mustangs comes with the correct pushrod; a 15/16" bore, and is available in 3 finishes; plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They’re designed for mount flanges from 3.22” to 3.40”, which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore.

The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders.

  • Aluminum construction
  • Natural Finish
  • Fits 1964-72 Mustangs

Charts

Installation Instructions (PDF)

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 6 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
