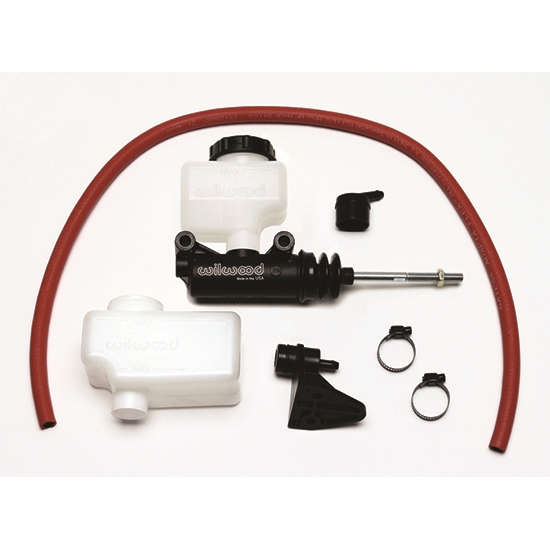

Wilwood 260-13625 Remote Side Mount Master Cylinder Kit, 1 In Bore
Universal Fit, Frame Position, Disc Brake System Type, Single Outlet Count, EDP Coated, Black
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Details
Info
This new version of Wilwood’s Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
- 1 Inch bore size
- 1.12" stroke
- .87 (cu in.) volume
- 3/8"-24 banjo outlet
- 11/16"-20 internal threads
- Aluminum/plastic material
- Remote reservoir
Wilwood 260-13625 Master Cylinder Instruction/Data Sheet (PDF)
Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.
Tech Tip: The bigger the master cylinder, the more fluid you get...But you'll have less pressure at the caliper.
