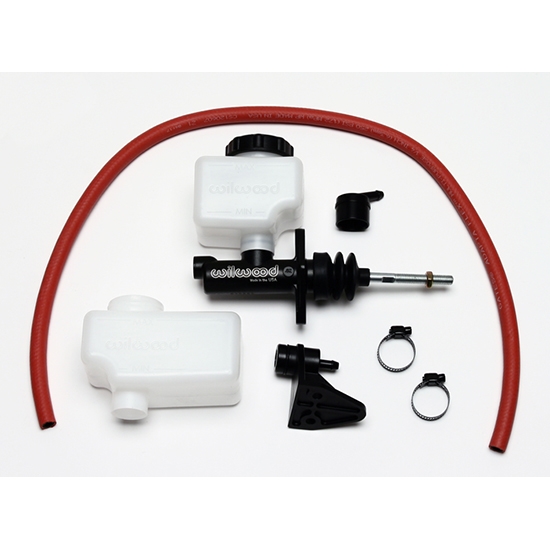

Wilwood 260-13620 Remote Flange Mount Master Cyl. Kit, 13/16"Bore

#83526013620

Wilwood 260-13620 Remote Flange Mount Master Cyl. Kit, 13/16"Bore

Name: Wilwood 260-13620 Remote Flange Mount Master Cyl. Kit, 13/16"Bore
Brand: Wilwood
SKU: 83526013620
Price: 122.1 USD
Availability: InStock

Write a Review

Ask a Question

Bore Size:

13/16 Inch

5/8 Inch 3/4 Inch1-1/8 Inch

$122.10

/each

Factory Shipped

$127.41

Save $5.31

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Firewall Position, Single Outlet Count

See more details

Key Specs

MFG. Part #	260-13620
Brand	Wilwood
Master Cylinder Bore Size	13/16 Inch
Master Cylinder Material	Aluminum
Finish	EDP Coated

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 260-13620 Details

This new version of Wilwood’s Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 banjo fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

13/16 Inch bore size
1.12" stroke
.58 (cu in.) volume
3/8"-24 banjo outlet
11/16"-20 internal threads
Aluminum/plastic material
Remote reservoir

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article.Brake System Selection.

Tech Tip: The bigger the master cylinder, the more fluid you get...But you'll have less pressure at the caliper.

Charts

Wilwood 260-13620 Master Cylinder Instruction/Data Sheet (PDF)

Guides & Documents

Master Cylinders Installation Instructions (83526013620)

Wilwood 260-13620 Specifications

KEY SPECS
MFG. Part #	260-13620
Brand	Wilwood
Master Cylinder Bore Size	13/16 Inch
Master Cylinder Material	Aluminum
Finish	EDP Coated

GENERAL
Position	Firewall
Brake System Type	Disc
Outlet Count	Single
Reservoir Type	Remote/Adjustable
Stroke	1.12"
Color	Black
Reservoir Included	Yes
Reservoir Material	ABS Plastic
Reservoir Size (cu in)	18.0 or 12.6
Fluid Capacity	10.0 / 7.0 fl oz.
Area	0.52 sq. in.
Volume	0.58 fl. oz.
Outlet Fitting	3/8"-24 Banjo
Overall Length	7.8"
Mounted Length	3.37"
Sold in Quantity	Kit
GTIN Code	889545067323
