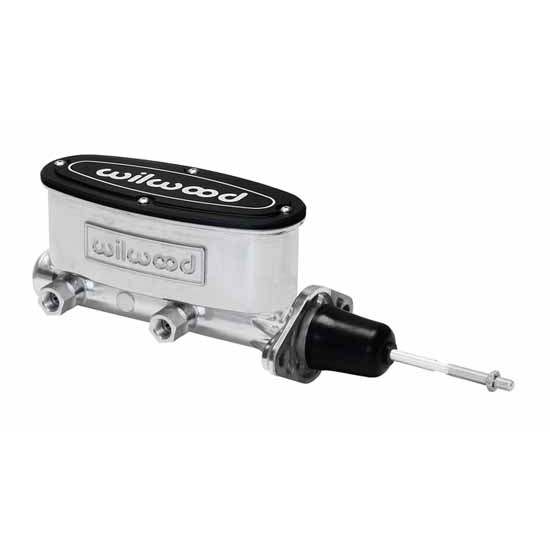

Wilwood 260-13375-P High Volume Tandem Master Cylinder, 15/16 In. Bore
Wilwood 260-13375-P High Volume Tandem Master Cylinder, 15/16 In. Bore

Wilwood 260-13375-P High Volume Tandem Master Cylinder, 15/16 In. Bore

Universal Fit, Firewall Position, Disc Brake System Type, Tandem Outlet Count, Polished

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 260-13375-P High Volume Tandem Master Cylinder, 15/16 In. Bore
Wilwood 260-13375-P High Volume Tandem Master Cylinder, 15/16 In. Bore
Wilwood 260-13375-P High Volume Tandem Master Cylinder, 15/16 In. Bore
Wilwood 260-13375-P High Volume Tandem Master Cylinder, 15/16 In. Bore
X
Wilwood 260-13375-P High Volume Tandem Master Cylinder, 15/16 In. Bore
Wilwood 260-13375-P High Volume Tandem Master Cylinder, 15/16 In. Bore
Zoomed In Image
We estimate this item will ship on or before April 23rd.
Part # 83526013375P
Save 7%
$239.95
$259.14
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Firewall
Brake System Type:
Disc
Outlet Count:
Tandem
Reservoir Type:
Integral
Master Cylinder Bore Size:
15/16 Inch
Stroke:
1.1"
Master Cylinder Material:
Aluminum
Finish:
Polished
Reservoir Included:
Yes
Reservoir Material:
Aluminum
Reservoir Size (cu in):
14.4 or 8.7
Fluid Capacity:
8.0 / 4.8 fl oz.
Area:
0.69 sq. in.
Outlet Fitting:
3/8"-24 IF or 1/2"-20 IF
Outlet Fitting 2:
3/8"-24 IF or 9/16"-18 IF
Overall Length:
12.26"
Mounted Length:
8.15"
MFG. Part #:
260-13375-P
Sold in Quantity:
Each
GTIN Code:
889545067217

Info

Wilwood's 7/8" or 15/16" bore Tandem Aluminum Master Cylinders available in 3 finishes, plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include a pushrod. They're designed for mount flanges from 3.22" to 3.40" , common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit.

Charts

Installation Instructions (PDF)

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 5 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
