Part # 83526012388

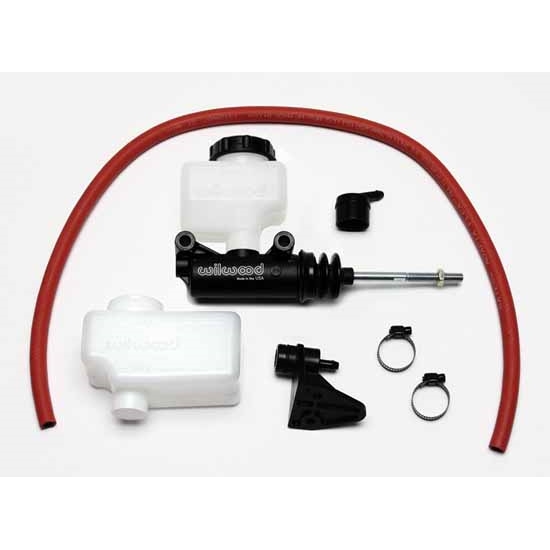

Wilwood 260-12388 Short Remote Side Mount Master Cylinder Kit, 1 Inch

by

|

  • Master cylinders are designed for limited space applications requiring the output capacity of a full size master cylinder
  • Features an ultra short 3.37" compact body provides 2.16" of additional clearance between the mounting boss and the fluid outlet
  • A new body design incorporates integral side mounting lugs with a 3.00" center to distance and no traditional mounting flange

$92.33

each

In Stock


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, Firewall/Frame Position, EDP Coated

  • Master cylinders are designed for limited space applications requiring the output capacity of a full size master cylinder
  • Features an ultra short 3.37" compact body provides 2.16" of additional clearance between the mounting boss and the fluid outlet
  • A new body design incorporates integral side mounting lugs with a 3.00" center to distance and no traditional mounting flange
  • 1.12" piston stroke meets or exceeds the stroke capacity of most full size cylinders
  • Includes a 1/8" NPT fluid outlet port located at the top radius of the cylinder bore to reduce the chances for trapped air

Key Specs

MFG. Part #260-12388
PositionFirewall/Frame
Brake System TypeDisc
Outlet CountSingle
Reservoir TypeRemote/Adjustable

Need To Know

Free Shipping on Orders Over $99

Need help? Call 800.979.0122

Quick and Easy Returns

Details

Wilwood's Compact Combination (Side Mount) Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37" compact body provides 2.16" of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3.00" center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12" of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8" NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

Charts

Specifications

KEY SPECS
MFG. Part #260-12388
BrandWilwood
PositionFirewall/Frame
Brake System TypeDisc
Outlet CountSingle
Reservoir TypeRemote/Adjustable
GENERAL
Master Cylinder Bore Size1 Inch
Stroke1.12"
Master Cylinder MaterialAluminum
FinishEDP Coated
ColorBlack
Reservoir IncludedYes
Reservoir MaterialABS Plastic
Reservoir Size (cu in)18.0 or 12.6
Fluid Capacity10.0 / 7.0 fl oz.
Area0.78 sq. in.
Volume0.87 cu. in.
Outlet Fitting1/8"-27 NPT
Overall Length8.84"
Mounted Length3.37"
Sold in QuantityKit
GTIN Code889545067026
