#8351605843

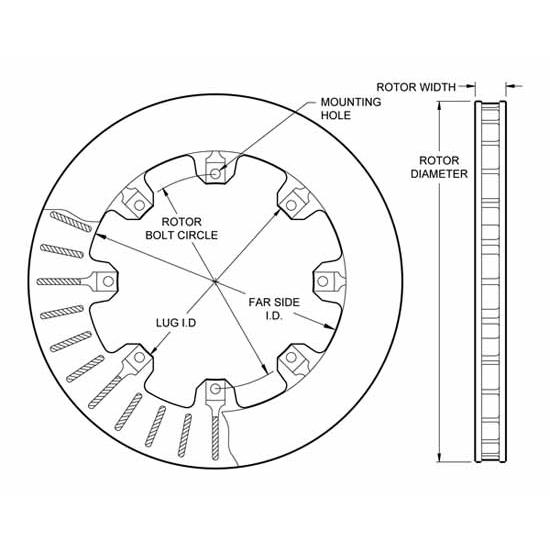

Wilwood 160-5843 Ultralite HP 32 Vane Vented Iron Rotor, 12.19 x .810
$117.50
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 23rd.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Round Rotor Shape, Vented Rotor Type
See more details
Key Specs
| Rotor Shape | Round |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Rotor Style | Plain Face |
| Rotor Material Type | Iron |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 160-5843 Details
Wilwood 160-5843 Details
Ultra-Light ULHP-32 straight vane rotors provide an excellent balance of efficient cooling and lower rotating mass on hard braking dirt tracks or rear axle service on pavement cars. UL rotors are cast from premium grade, long grain carbon iron for long wear, high thermal stability, and resistance to distortion. ULHP-32 rotors offered the added performance and smoother operation of precision turned faces with less than .001" variation in flatness, parallelism, or run-out.
- Premium grade, medium weight castings.
- Suitable for moderate temperature racing to street use.
Wilwood 160-5843 Specifications
Wilwood 160-5843 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 160-5843 |
| Brand | Wilwood |
| Rotor Shape | Round |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Rotor Style | Plain Face |
| Rotor Material Type | Iron |
| GENERAL | |
| Rotor Finish | Plain |
| Rotor Thickness | 0.81" |
| Vane Count | 32 Straight Vane |
| Rotor Hat Bolt Pattern | 8 x 7.00" |
| Bedded | No |
| Balanced | No |
| Lug ID | 6.38" |
| Inside Diameter | 8.56" |
| Weight | 8.9 lbs. |
| Sold in Quantity | Each |
| GTIN Code | 889545039733 |
