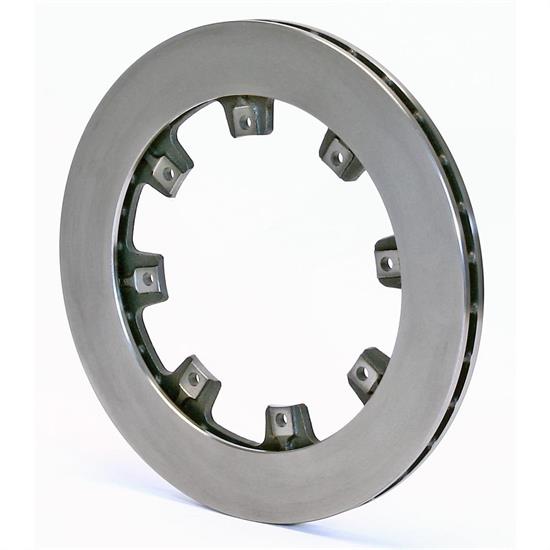

Wilwood 160-0277 Ultralite 32 Vane Vented Iron Rotor, 12.19 x .810 In.

#8351600277

Wilwood 160-0277 Ultralite 32 Vane Vented Iron Rotor, 12.19 x .810 In.

Name: Wilwood 160-0277 Ultralite 32 Vane Vented Iron Rotor, 12.19 x .810 In.
Brand: Wilwood
SKU: 8351600277
Price: 64.74 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

It is suitable for moderate temperature racing to street use
Rotor is cast from premium grade, long grain carbon iron
The 32 straight vane casting provides superior heat management and long service life

Type:

Plain Face Ultralite 32

Plain Face Ultralite HP-32 Race Drilled Ultralite 32SRP Drilled/Slotted L/H Plain Face HD 36 R/H Plain Face HD 36 L/H Plain Face Ultralite 32 (Scalloped)

$64.74

/each

In Stock

$67.55

Save $2.81

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, Round Rotor Shape, Vented Rotor Type

It is suitable for moderate temperature racing to street use
Rotor is cast from premium grade, long grain carbon iron
The 32 straight vane casting provides superior heat management and long service life
Manufactured to very close tolerances on face and vane thickness
Provides long wear, high thermal stability, and excellent resistance to distortion in high heat

See more details

Key Specs

Rotor Diameter	12.19 Inch
Rotor Style	Plain Face
Rotor Material Type	Iron
Rotor Thickness	0.81"
Rotor Hat Bolt Pattern	8 x 7.00"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Wilwood 160-0277 Details

Suitable for moderate temperature racing to street use
Cast from premium grade, long grain carbon iron
Long wear, high thermal stability, and excellent resistance to distortion in high heat
Close tolerances on face and vane thickness
32 straight vane casting provides superior heat management and long service life
Low rotating and unsprung weight
Left or right hand mounting locations
Inboard mounted (Sprints)
Threads: Thru
Weight: 9.1 lbs
Face: solid

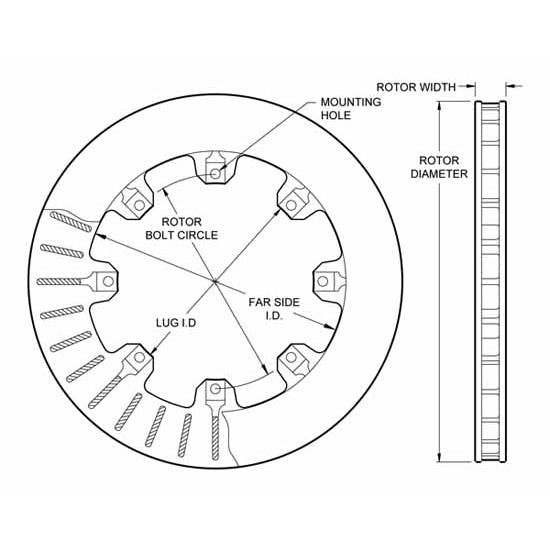

Rotor Mount Hole Size: .326"
Lug ID / Registration: 6.38"
Far Side Inside Diameter: 8.56"

Item Details

0.81 X 12.19
8 x 7" B.C.

IMCA Approved.

Charts

Ultralite Rotor Application Chart (GIF)

Guides & Documents

Brake Rotors Technical Information (8351600277)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 160-0277 Specifications

KEY SPECS
MFG. Part #	160-0277
Brand	Wilwood
Rotor Diameter	12.19 Inch
Rotor Style	Plain Face
Rotor Material Type	Iron
Rotor Thickness	0.81"
Rotor Hat Bolt Pattern	8 x 7.00"

GENERAL
Position	Rear
Rotor Shape	Round
Rotor Type	Vented
Rotor Finish	Plain
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Lug ID	6.38"
Inside Diameter	8.56"
Weight	8.9 lbs.
Sold in Quantity	Each
GTIN Code	889545037463

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

This works grate on my pinion brake

5.0

12 years ago

Fred1979

Williston, ND 58801, USA

Verified

Using it on my 2.5ton rock wells in a bronco fits my kit good

Would Recommend
