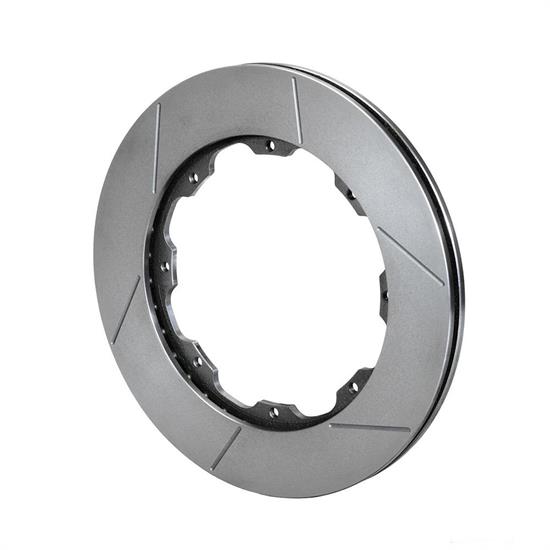

Wilwood 160-12294 GT 36 Curved Vane Spec 37 Iron Rotor, 12.19 Inch
Wilwood 160-12294 GT 36 Curved Vane Spec 37 Iron Rotor, 12.19 Inch

Wilwood 160-12294 GT 36 Curved Vane Spec 37 Iron Rotor, 12.19 Inch

Universal Fit, Left Position, Round Rotor Shape, 12.19 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 160-12294 GT 36 Curved Vane Spec 37 Iron Rotor, 12.19 Inch
Wilwood 160-12294 GT 36 Curved Vane Spec 37 Iron Rotor, 12.19 Inch
X
Zoomed In Image
We estimate this item will ship on or before May 21st.
Part # 83516012294
Save 7%
$152.99
$164.93
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Left
Rotor Shape:
Round
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Rotor Style:
Slotted
Rotor Material Type:
Spec-37 Iron
Rotor Finish:
Plain
Rotor Thickness:
0.81"
Vane Count:
36 Curved Vane
Rotor Hat Bolt Pattern:
8 x 7.62"
Bedded:
No
Balanced:
Yes
Lug ID:
7.13"
Inside Diameter:
8.34"
Weight:
9.3 lbs.
MFG. Part #:
160-12294
Sold in Quantity:
Each
GTIN Code:
889545038484

Info

Wilwood's GT 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available.
  • Spec-37 Heavy wall Castings
  • Suitable for high temperature racing to street use.
Some parts are not legal for use in California or other states with similar laws/regulations
