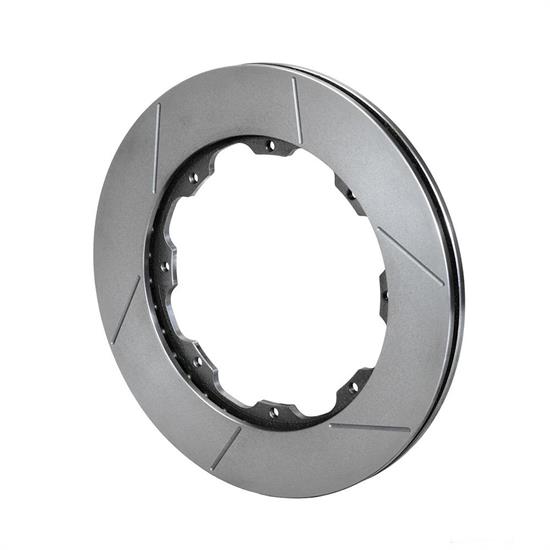

Wilwood 160-12293 GT 36 SPC-37 Curved Vane RH Rotor, 12.19 x .810 Inch
$231.52
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before December 27th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Right Position, Round Rotor Shape, Plain
See more details
Key Specs
Position | Right |
Rotor Shape | Round |
Rotor Diameter | 12.19 Inch |
Rotor Type | Vented |
Rotor Style | Slotted |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 160-12293 Details
Wilwood 160-12293 Details
Wilwood's GT 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available.
- Spec-37 Heavy wall Castings
- Suitable for high temperature racing to street use.
Wilwood 160-12293 Specifications
Wilwood 160-12293 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 160-12293 |
Brand | Wilwood |
Position | Right |
Rotor Shape | Round |
Rotor Diameter | 12.19 Inch |
Rotor Type | Vented |
Rotor Style | Slotted |
Rotor Material Type | Spec-37 Iron |
GENERAL | |
Rotor Finish | Plain |
Rotor Thickness | 0.81" |
Vane Count | 36 Curved Vane |
Rotor Hat Bolt Pattern | 8 x 7.62" |
Bedded | No |
Balanced | Yes |
Lug ID | 7.13" |
Inside Diameter | 8.34" |
Weight | 9.3 lbs. |
Sold in Quantity | Each |
GTIN Code | 889545038477 |
