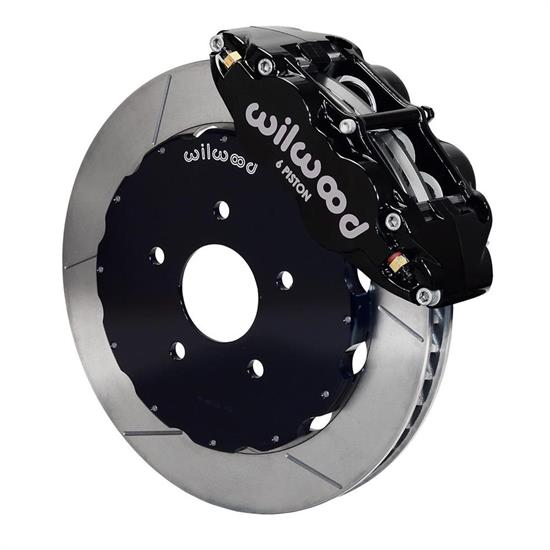

Wilwood 140-8921 FNSL6R Front Disc Brake Kit, 04-Up Corvette/Cadillac
Wilwood 140-8921 FNSL6R Front Disc Brake Kit, 04-Up Corvette/Cadillac

Wilwood 140-8921 FNSL6R Front Disc Brake Kit, 04-Up Corvette/Cadillac

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 13.06 Inch Rotor Diameter, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-8921 FNSL6R Front Disc Brake Kit, 04-Up Corvette/Cadillac
Wilwood 140-8921 FNSL6R Front Disc Brake Kit, 04-Up Corvette/Cadillac
Wilwood 140-8921 FNSL6R Front Disc Brake Kit, 04-Up Corvette/Cadillac
Wilwood 140-8921 FNSL6R Front Disc Brake Kit, 04-Up Corvette/Cadillac
Wilwood 140-8921 FNSL6R Front Disc Brake Kit, 04-Up Corvette/Cadillac
X
Wilwood 140-8921 FNSL6R Front Disc Brake Kit, 04-Up Corvette/Cadillac
Wilwood 140-8921 FNSL6R Front Disc Brake Kit, 04-Up Corvette/Cadillac
Wilwood 140-8921 FNSL6R Front Disc Brake Kit, 04-Up Corvette/Cadillac
Zoomed In Image
We estimate this item will ship on or before April 27th.
Part # 8351408921
Save 10%
$1,494.99
$1,674.39
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
13.06 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
No
MFG. Part #:
140-8921
Minimum Recommended Wheel Diameter:
17 Inch
Rotor Thickness:
1.25"
Stud Diameter:
0.52"
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
Total Piston Area:
4.04 sq. in.
Piston Type:
Stainless
Pad Area:
8.20 sq. in.
Pad Volume:
3.8 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Slotted
Caliper Type:
Forged Narrow Superlite 6R
Rotor Finish:
Natural
Rotor Material Type:
Spec-37 Iron
Vane Count:
48 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Big Brake Hat - Short Offset
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
5 x 4.75
Hat Material Type:
Aluminum
Hat Offset Dimension:
0.29"
GTIN Code:
889545030167
Front Rotor Included:
Yes
Front Rotor Diameter:
13.06 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
6
Front Caliper Finish:
Powder Coated Black
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13"-14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Wheel Clearance Diagram

Application

2004 Cadillac XLR All
2005 Cadillac XLR All
2005 Chevrolet Corvette C-6
2006 Cadillac XLR All
2006 Chevrolet Corvette C-6
2006 Chevrolet Corvette C-6 - Z06
2007 Cadillac XLR All
2007 Chevrolet Corvette C-6
2007 Chevrolet Corvette C-6 - Z06
2008 Cadillac XLR All
2008 Chevrolet Corvette C-6
2008 Chevrolet Corvette C-6 - Z06
2009 Cadillac XLR All
2009 Chevrolet Corvette C-6
2009 Chevrolet Corvette C-6 - Z06
2010 Chevrolet Corvette C-6
2010 Chevrolet Corvette C-6 - Z06
2011 Chevrolet Corvette C-6
2011 Chevrolet Corvette C-6 - Z06
2012 Chevrolet Corvette C-6
2012 Chevrolet Corvette C-6 - Z06
2013 Chevrolet Corvette C-6
2013 Chevrolet Corvette C-6 - Z06
