$183 Off
$183 Off
|
#8351408921D
$2,231.16
/each
Factory Shipped
$2,414.40
Save $183.24
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Front Position, 13.06 Inch Rotor Diameter, Black
| MFG. Part # | 140-8921-D |
| Position | Front |
| Rotor Diameter | 13.06 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyThe unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13"-14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Kit is applicable to both the C5 and C6 Corvette
Application
Charts
Installation Instructions (PDF)

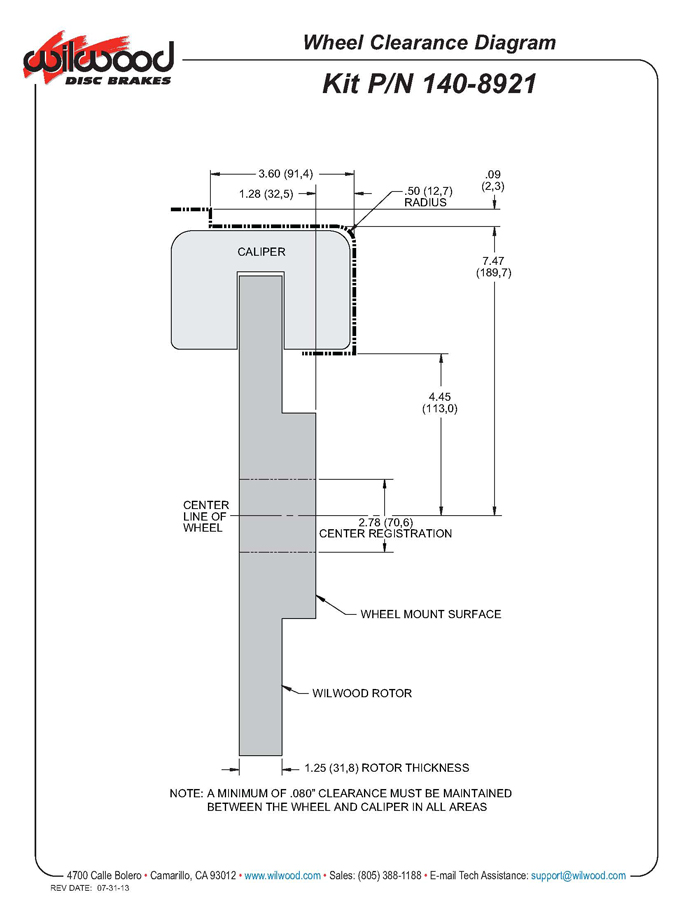

Wheel Clearance Diagram (JPG)
Specs
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-8921-D |
| Brand | Wilwood |
| Position | Front |
| Rotor Diameter | 13.06 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 17 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Factory Disc Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 13.06 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Black |
| Front Caliper Piston Quantity | 6 |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545030174 |
| Rotor Thickness | 1.25" |
| Stud Diameter | 0.52" |
| Mount Type | Radial |
| Total Piston Area | 4.04 sq. in. |
| Piston Type | Stainless |
| Pad Area | 8.20 sq. in. |
| Pad Volume | 3.8 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Radial |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Spec-37 Iron |
| Vane Count | 48 Curved Vane |
| Bedded | No |
| Balanced | No |
| Hat Type | Big Brake Hat - Short Offset |
| Hat Finish | Black E-Coat |
| Hat Material Type | Aluminum |
| Hat Offset Dimension | 0.29" |
| Brake Lines Included | No |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
| Hat Bolt Circle 1 | 5 x 4.75 |
Be the first to ask a question.
2004-2009 Cadillac XLR
1997-2013 Chevy Corvette
