$183 Off

Wilwood 140-8797 FNSL6R 13.06 Inch Front Disc Brake Kit, 1995-01 BMW

$183 Off

#8351408797

Wilwood 140-8797 FNSL6R 13.06 Inch Front Disc Brake Kit, 1995-01 BMW

Name: Wilwood 140-8797 FNSL6R 13.06 Inch Front Disc Brake Kit, 1995-01 BMW
Brand: Wilwood
SKU: 8351408797
Price: 2231.16 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Undrilled

Drilled Drilled / Red Undrilled / Red

$2,231.16

/each

Factory Shipped

$2,414.40

Save $183.24

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 13.06 Inch Rotor Diameter, Black

See more details

Key Specs

MFG. Part #	140-8797
Position	Front
Rotor Diameter	13.06 Inch
Rotor Type	Vented
Caliper Pistons	Six

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-8797 Details

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13"-14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Application

1995 BMW M3 From 10/95
1996 BMW M3 All
1997 BMW M3 All
1998 BMW M3 All
1998 BMW Z3 M Roadster 3.2 L Liter
1999 BMW M3 All
1999 BMW Z3 M Roadster 3.2 L Liter
2000 BMW Z3 M Roadster 3.2 L Liter
2001 BMW Z3 M Roadster 3.2 L Liter

Charts

Installation Instructions (PDF)

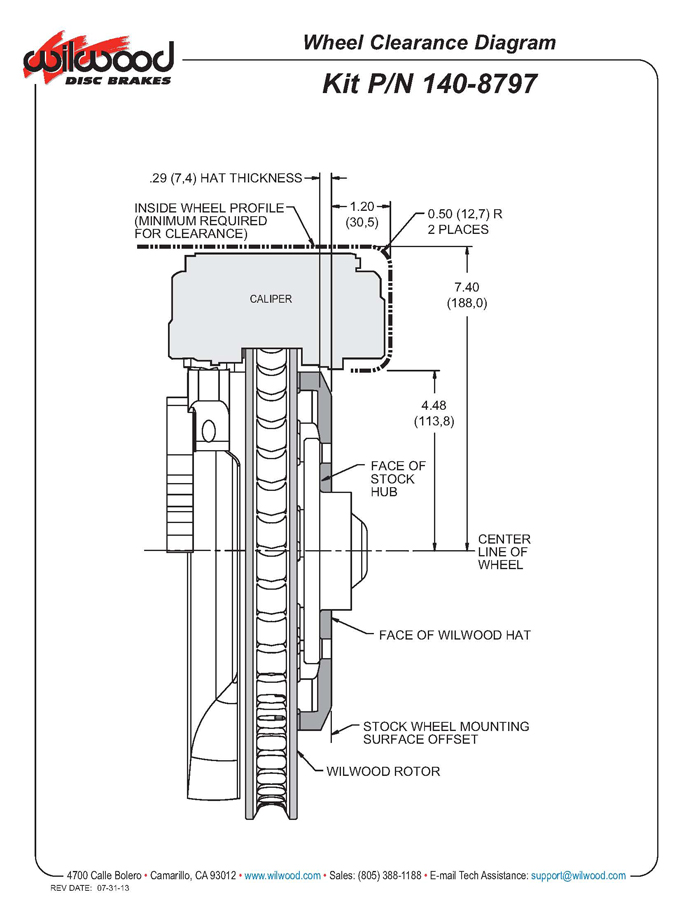

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (8351408797)

Wilwood 140-8797 Specifications

KEY SPECS
MFG. Part #	140-8797
Brand	Wilwood
Position	Front
Rotor Diameter	13.06 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	17 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	13.06 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Black
Bolt Pattern	5 on 120mm
Front Caliper Piston Quantity	6
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545030020
Rotor Thickness	1.25"
Stud Diameter	0.52"
Mount Type	Radial
Total Piston Area	4.04 sq. in.
Piston Type	Stainless
Pad Area	8.20 sq. in.
Pad Volume	3.8 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Natural
Rotor Material Type	Spec-37 Iron
Vane Count	48 Curved Vane
Bedded	No
Balanced	Yes
Hat Type	Big Brake Hat - Short Offset
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	0.56"
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	5 x 4.75

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1995-1999 BMW M3

1998-2001 BMW Z3
