Wilwood 140-8797-DR FNSL6R 13.06 Inch Front Disc Brake Kit, 95-01 BMW
- Will fit 1995-2001 BMW M3 and Z3
- 13" rotor will with 17"-up wheels
- Features red powdercoated six piston calipers
$2,155.71
/each
Factory Shipped
$2,414.40
Save $258.69
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 13.06 Inch Rotor Diameter, Red
- Will fit 1995-2001 BMW M3 and Z3
- 13" rotor will with 17"-up wheels
- Features red powdercoated six piston calipers
- Rotors are drilled and slotted for enhanced cooling and reduced brake fade
- 5 on 4.75" bolt pattern
Key Specs
| MFG. Part # | 140-8797-DR |
| Position | Front |
| Rotor Diameter | 13.06 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-8797-DR Details
Wilwood 140-8797-DR Details
The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13"-14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Charts
Installation Instructions (PDF)

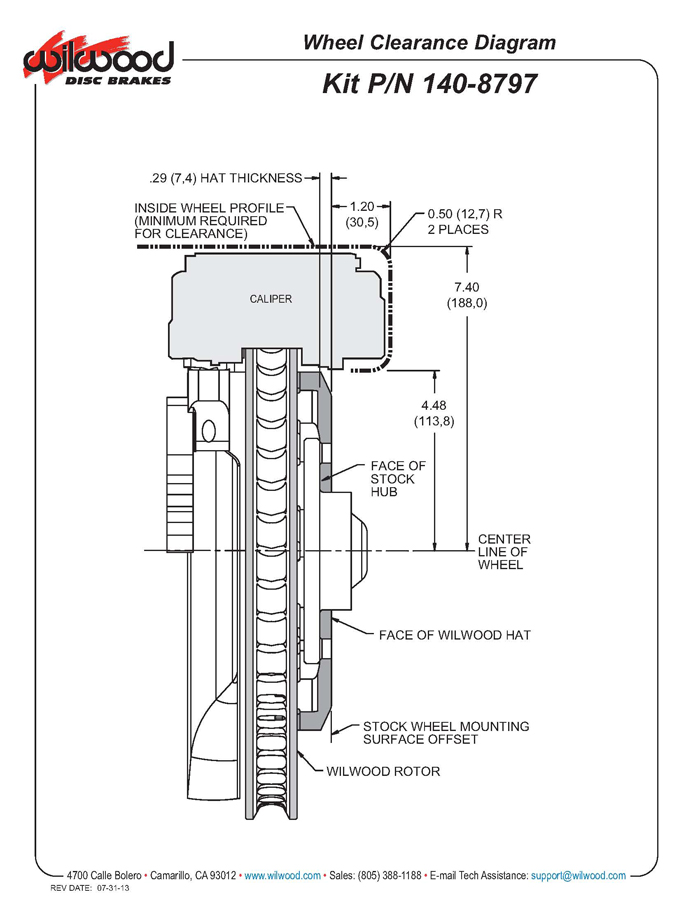

Wheel Clearance Diagram (JPG)
Specs
Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.
Guides & Documents
Wilwood 140-8797-DR Specifications
Wilwood 140-8797-DR Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-8797-DR |
| Brand | Wilwood |
| Position | Front |
| Rotor Diameter | 13.06 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 17 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Factory Disc Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 13.06 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Red |
| Bolt Pattern | 5 on 4.75" |
| Front Caliper Piston Quantity | 6 |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545030044 |
| Rotor Thickness | 1.25" |
| Stud Diameter | 0.52" |
| Mount Type | Radial |
| Total Piston Area | 4.04 sq. in. |
| Piston Type | Stainless |
| Pad Area | 8.20 sq. in. |
| Pad Volume | 3.8 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Radial |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Spec-37 Iron |
| Vane Count | 48 Curved Vane |
| Bedded | No |
| Balanced | No |
| Hat Type | Big Brake Hat - Short Offset |
| Hat Finish | Black E-Coat |
| Hat Material Type | Aluminum |
| Hat Offset Dimension | 0.56" |
| Brake Lines Included | No |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
| Hat Bolt Circle 1 | 5 x 4.75 |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
Be the first to ask a question.
Fitment
Fitment
1995-1999 BMW M3
1998-2001 BMW Z3
