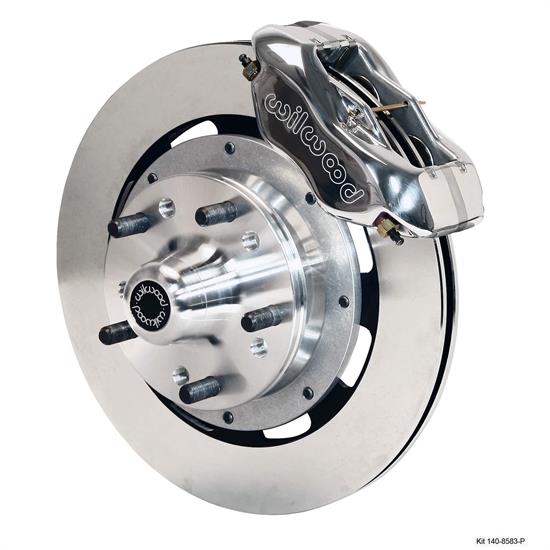

Wilwood 140-8583-P FDLI 12.19 Inch Front Disc Brake Kit, 1937-49 Ford

Name: Wilwood 140-8583-P FDLI 12.19 Inch Front Disc Brake Kit, 1937-49 Ford
Brand: Wilwood
SKU: 8351408583P
Price: 1187.24 USD
Availability: InStock

Write a Review

Ask a Question

$1,187.24

each

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before December 21st.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 5 on 4.5" Bolt Pattern, Polished

See more details

Key Specs

Position	Front
Bolt Pattern	5 on 4.5"
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-8583-P Details

FDLI Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Application

1937 Ford 1 Ton Pickup Base
1937 Ford 1/2 Ton Pickup Base
1937 Ford 3/4 Ton Pickup Base
1937 Ford Model 74 Base All Tudor / Fordor / SW
1937 Ford Model 78 Base All Tudor / Fordor / SW
1937 Ford Sedan Delivery Base
1938 Ford 1 Ton Pickup Base
1938 Ford 1/2 Ton Pickup Base
1938 Ford 3/4 Ton Pickup Base
1938 Ford Model 81 A All Tudor / Fordor / SW
1938 Ford Model 82 A All Tudor / Fordor / SW
1938 Ford Model 85 Base
1938 Ford Sedan Delivery Base
1939 Ford 1 Ton Pickup Base
1939 Ford 1/2 Ton Pickup Base
1939 Ford 3/4 Ton Pickup Base
1939 Ford Deluxe Base All Tudor & Fordor (922A)
1939 Ford Sedan Delivery Base
1939 Ford Standard Base
1940 Ford 1 Ton Pickup Base
1940 Ford 1/2 Ton Pickup Base
1940 Ford 3/4 Ton Pickup Base
1940 Ford Deluxe Base
1940 Ford Pickup Base
1940 Ford Sedan Delivery Base
1940 Ford Standard Base
1941 Ford 1 Ton Pickup Base
1941 Ford 1/2 Ton Pickup Base
1941 Ford 3/4 Ton Pickup Base
1941 Ford Deluxe Base
1941 Ford Model 1 GA Truck Base
1941 Ford Model 11 A Base
1941 Ford Sedan Delivery Base
1941 Ford Super Deluxe Base
1942 Ford 1 Ton Pickup Base
1942 Ford 1/2 Ton Pickup Base
1942 Ford 3/4 Ton Pickup Base
1942 Ford Model 2 GA Special Base
1942 Ford Model 21 A Deluxe Base
1942 Ford Sedan Delivery Base
1942 Ford Super Deluxe Base
1943 Ford 1 Ton Pickup Base
1943 Ford 1/2 Ton Pickup Base
1943 Ford 3/4 Ton Pickup Base
1944 Ford 1 Ton Pickup Base
1944 Ford 1/2 Ton Pickup Base
1944 Ford 3/4 Ton Pickup Base
1945 Ford 1 Ton Pickup Base
1945 Ford 1 Ton Pickup Base
1945 Ford 1/2 Ton Pickup Base
1945 Ford 1/2 Ton Pickup Base
1945 Ford 3/4 Ton Pickup Base
1946 Ford 1 Ton Pickup Base
1946 Ford 1/2 Ton Pickup Base
1946 Ford 3/4 Ton Pickup Base
1946 Ford Anglia Base
1946 Ford Deluxe Base
1946 Ford Prefect Base
1946 Ford Sedan Delivery Base
1946 Ford Super Deluxe Base
1947 Ford 1 Ton Pickup Base
1947 Ford 1/2 Ton Pickup Base
1947 Ford 3/4 Ton Pickup Base
1947 Ford Anglia Base
1947 Ford Deluxe Base
1947 Ford Prefect Base
1947 Ford Sedan Delivery Base
1947 Ford Super Deluxe Base
1948 Ford Anglia Base
1948 Ford Deluxe Base
1948 Ford F Series Base
1948 Ford F1 Base
1948 Ford F2 Base
1948 Ford F3 Base
1948 Ford F4 Base
1948 Ford Prefect Base
1948 Ford Super Deluxe Base
1948 Ford Taunus Base
1949 Ford Anglia Base
1949 Ford F Series Base
1949 Ford F1 Base
1949 Ford F2 Base
1949 Ford F3 Base
1949 Ford F4 Base
1949 Ford Ford Base
1949 Ford Prefect Base

Charts

Installation Instructions (PDF)

Wheel Clearance Diagram (JPG)

Guides & Documents

Disc Brake Kits Instruction Sheet (8351408583P)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-8583-P Specifications

KEY SPECS
MFG. Part #	140-8583-P
Brand	Wilwood
Position	Front
Bolt Pattern	5 on 4.5"
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Polished
Color	Natural
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Hardware Included	Yes
Spindle Type	Factory Drum Spindle
Rotor Style	Plain Face
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Front Caliper Piston Quantity	4
Front Caliper Finish	Polished
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Rear Rotor Included	No

GENERAL
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Front Suspension Type	Straight Axle
Mount Type	Lug
Total Piston Area	4.12 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Natural
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Stud Diameter 2	1/2-20
GTIN Code	889545024845
Brake Lines Included	No
Caliper Color	Polished
Caliper Material Type	Forged Aluminum
