$1,038.79
$927.99

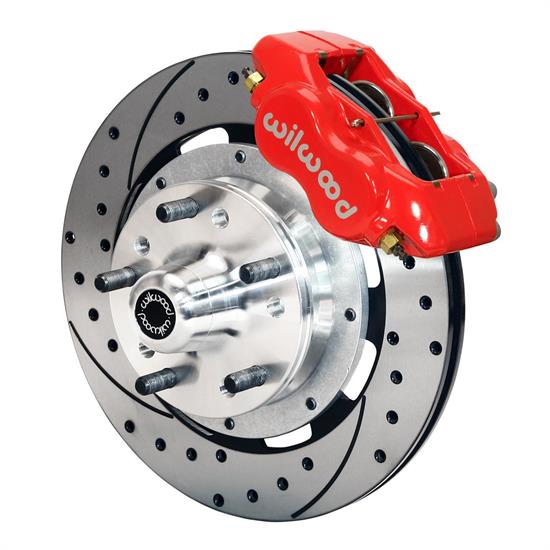

Wilwood 140-8583-DR FDLI 12.19 Inch Front Disc Brake Kit, 1937-49 Ford
Wilwood 140-8583-DR FDLI 12.19 Inch Front Disc Brake Kit, 1937-49 Ford

Wilwood 140-8583-DR FDLI 12.19 Inch Front Disc Brake Kit, 1937-49 Ford

Front Position, 5 on 4.5" Bolt Pattern, 12.19 Inch Rotor Diameter, Vented Rotor Type, Red

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-8583-DR FDLI 12.19 Inch Front Disc Brake Kit, 1937-49 Ford
Wilwood 140-8583-DR FDLI 12.19 Inch Front Disc Brake Kit, 1937-49 Ford
X
Zoomed In Image
Part # 8351408583DR
Save 10%
$927.99
$1,038.79
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Position:
Front
Bolt Pattern:
5 on 4.5"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Red
MFG. Part #:
140-8583-DR
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
0.81"
Stud Diameter:
1/2-20"
Spindle Type:
Factory Drum Spindle
Mount Type:
Lug
Total Piston Area:
4.80 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Forged Dynalite
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545024838

Info

FDLI Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Installation Instructions (PDF)

Wheel Clearance Diagram

Application

1937 Ford 1 Ton Pickup Base
1937 Ford 1/2 Ton Pickup Base
1937 Ford 3/4 Ton Pickup Base
1937 Ford Model 74 Base All Tudor / Fordor / SW
1937 Ford Model 78 Base All Tudor / Fordor / SW
1937 Ford Sedan Delivery Base
1938 Ford 1 Ton Pickup Base
1938 Ford 1/2 Ton Pickup Base
1938 Ford 3/4 Ton Pickup Base
1938 Ford Model 81 A All Tudor / Fordor / SW
1938 Ford Model 82 A All Tudor / Fordor / SW
1938 Ford Model 85 Base
1938 Ford Sedan Delivery Base
1939 Ford 1 Ton Pickup Base
1939 Ford 1/2 Ton Pickup Base
1939 Ford 3/4 Ton Pickup Base
1939 Ford Deluxe Base All Tudor & Fordor (922A)
1939 Ford Sedan Delivery Base
1939 Ford Standard Base
1940 Ford 1 Ton Pickup Base
1940 Ford 1/2 Ton Pickup Base
1940 Ford 3/4 Ton Pickup Base
1940 Ford Deluxe Base
1940 Ford Pickup Base
1940 Ford Sedan Delivery Base
1940 Ford Standard Base
1941 Ford 1 Ton Pickup Base
1941 Ford 1/2 Ton Pickup Base
1941 Ford 3/4 Ton Pickup Base
1941 Ford Deluxe Base
1941 Ford Model 1 GA Truck Base
1941 Ford Model 11 A Base
1941 Ford Sedan Delivery Base
1941 Ford Super Deluxe Base
1942 Ford 1 Ton Pickup Base
1942 Ford 1/2 Ton Pickup Base
1942 Ford 3/4 Ton Pickup Base
1942 Ford Model 2 GA Special Base
1942 Ford Model 21 A Deluxe Base
1942 Ford Sedan Delivery Base
1942 Ford Super Deluxe Base
1943 Ford 1 Ton Pickup Base
1943 Ford 1/2 Ton Pickup Base
1943 Ford 3/4 Ton Pickup Base
1944 Ford 1 Ton Pickup Base
1944 Ford 1/2 Ton Pickup Base
1944 Ford 3/4 Ton Pickup Base
1945 Ford 1 Ton Pickup Base
1945 Ford 1 Ton Pickup Base
1945 Ford 1/2 Ton Pickup Base
1945 Ford 1/2 Ton Pickup Base
1945 Ford 3/4 Ton Pickup Base
1946 Ford 1 Ton Pickup Base
1946 Ford 1/2 Ton Pickup Base
1946 Ford 3/4 Ton Pickup Base
1946 Ford Anglia Base
1946 Ford Deluxe Base
1946 Ford Prefect Base
1946 Ford Sedan Delivery Base
1946 Ford Super Deluxe Base
1947 Ford 1 Ton Pickup Base
1947 Ford 1/2 Ton Pickup Base
1947 Ford 3/4 Ton Pickup Base
1947 Ford Anglia Base
1947 Ford Deluxe Base
1947 Ford Prefect Base
1947 Ford Sedan Delivery Base
1947 Ford Super Deluxe Base
1948 Ford Anglia Base
1948 Ford Deluxe Base
1948 Ford F Series Base
1948 Ford F1 Base
1948 Ford F2 Base
1948 Ford F3 Base
1948 Ford F4 Base
1948 Ford Prefect Base
1948 Ford Super Deluxe Base
1948 Ford Taunus Base
1949 Ford Anglia Base
1949 Ford F Series Base
1949 Ford F1 Base
1949 Ford F2 Base
1949 Ford F3 Base
1949 Ford F4 Base
1949 Ford Ford Base
1949 Ford Prefect Base
Some parts are not legal for use in California or other states with similar laws/regulations
