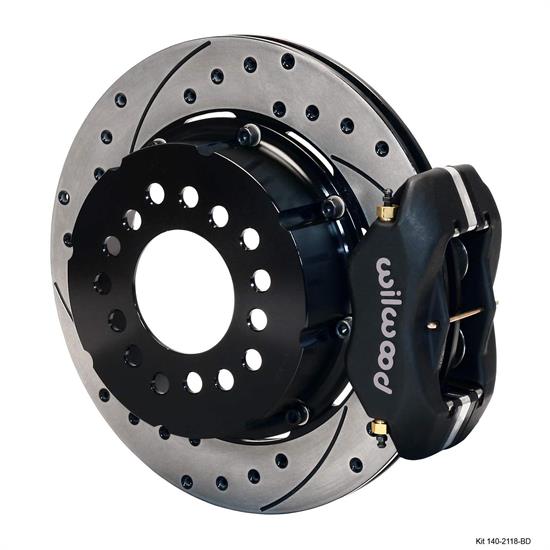

Wilwood 140-2118-BD FDLI Rear Brake Kit, New Big Ford 2.50 Off

1 Question

Engineered to provide a complete solution for popular muscle car rear axles on applications where individual wheel parking brake assemblies are not required
The high friction pads provide optimized and balanced braking for all types of applications
Calipers can be optioned with a full range of finishes to reflect personalized style

$955.11

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before December 8th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Rear Position, 12.19 Inch Rotor Diameter

Engineered to provide a complete solution for popular muscle car rear axles on applications where individual wheel parking brake assemblies are not required
The high friction pads provide optimized and balanced braking for all types of applications
Calipers can be optioned with a full range of finishes to reflect personalized style
Rotors have a 12.19" diameter and will fit 15"-up wheels
A drilled and slotted design ensure proper heat dissipation

See more details

Key Specs

Position	Rear
Bolt Pattern	Multi: 5 on 4.5" \| 4.75" \| 5"
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

Wilwood 140-2118-BD Details

FDLI Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications where individual wheel parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of off-road, competition, and other customized applications. FDLI calipers can be optioned with a full range of finishes to reflect personalized style. Rotor choices provide options for high-tech show winning style, or heavy weight durability and cooling capacity for high heat competition.

Charts

Installation Instructions (PDF)

Guides & Documents

Disc Brake Kits Instruction Sheet (8351402118BD)

Everything You Need to Know About Converting Drum Brakes to Disc

CA Prop 65

Wilwood 140-2118-BD Specifications

KEY SPECS
MFG. Part #	140-2118-BD
Brand	Wilwood
Position	Rear
Bolt Pattern	Multi: 5 on 4.5" \| 4.75" \| 5"
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Color	Black
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Style	Drilled
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Rear Rotor Included	Yes

GENERAL
Speedway Motors Catalog Part #	835-1402118BD
Rotor Thickness	0.81"
Axle Flange Offset	2.50"
Mount Type	Lug
Total Piston Area	3.00 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.10 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Forged Dynalite
Rotor Finish	Black E-Coat
Rotor Material Type	Cast Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Hat Type	Pro-Street Hat - Standard
Hat Finish	Black E-Coat
Hat Bolt Circle 3	5 x 5.00
Hat Bolt Circle 2	5 x 4.75
Hat Bolt Circle 1	5 x 4.50
Hat Material Type	Aluminum
Hat Offset Dimension	2.00"
GTIN Code	889545022124
Ford Bearing End Style	Big Ford New Style (Torino)
