Wilwood 140-2118-B Rear Brake Kit - New Big Bearing Ford, 2.5 Offset

$114 Off

Wilwood 140-2118-B Rear Brake Kit - New Big Bearing Ford, 2.5 Offset
Wilwood

|

#8351402118

Wilwood 140-2118-B Rear Brake Kit - New Big Bearing Ford, 2.5 Offset

  • Rotor has a diameter of 12.19" and will clear 15"-up wheels
  • Forged billet Dynalite four-piston calipers are powder coated black for added protection
  • Brake hat used in this kit works with 5 x 4-1/2”, 5 x 4-3/4”, and 5 x 5” bolt patterns
See More

Rotor / Caliper Type:

Undrilled

Drilled / BlackDrilled / PolishedDrilled / RedUndrilled / PolishedUndrilled / Red

$946.13

/each

Factory Shipped

$1,059.66

Save $113.53


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Rear Position, 12.19 Inch Rotor Diameter

  • Rotor has a diameter of 12.19" and will clear 15"-up wheels
  • Forged billet Dynalite four-piston calipers are powder coated black for added protection
  • Brake hat used in this kit works with 5 x 4-1/2”, 5 x 4-3/4”, and 5 x 5” bolt patterns
  • High friction pads provide optimized and balanced braking for all types of customized applications
  • Rotors are vented for excellent heat dissipation qualities
See more details

Key Specs

MFG. Part #140-2118-B
PositionRear
Wheel Bolt Pattern (in.)5x4.5 in. | 5x4.75 in.
Wheel Bolt Pattern (mm)5x114.3 mm | 5x120.65 mm
Rotor Diameter12.19 Inch
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-2118-B Details

Wilwood FDLI Pro-Series rear disc brake kits provide a complete solution for the popular Ford big bearing rear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of customized applications.

These kits do not have emergency brake provisions.

Item Details

Big Ford, new style, 2-1/2" offsetThe brake hat used in this kit works with 5 x 4-1/2", 5 x 4-3/4", and 5 x 5" bolt circle patterns.The brake hat used in this kit works with 5 x 4-1/2", 5 x 4-3/4", and 5 x 5" bolt circle patterns.

Charts

Specs

  • Ultralite HP 32 Curved Vane Vented Rotor - 12.19" x .810"
  • Aluminum hat
  • Forged billet Dynalite four-piston calipers
    • Piston Area (in²): 3
    • 1/8" NPT inlet
  • Minimum Wheel Diameter (in): 15
  • BP-10 Smart pads
  • Aluminum mounting brackets and hardware

Wilwood 140-2118-B Specifications

KEY SPECS
MFG. Part #140-2118-B
BrandWilwood
PositionRear
Wheel Bolt Pattern (in.)5x4.5 in. | 5x4.75 in.
Wheel Bolt Pattern (mm)5x114.3 mm | 5x120.65 mm
Rotor Diameter12.19 Inch
Rotor TypeVented
Caliper PistonsFour
Caliper FinishPowder Coated
Parking Brake ProvisionNo
Minimum Recommended Wheel Diameter15 Inch
Rotor ShapeRound
Hardware IncludedYes
Rotor StylePlain Face
Front Rotor IncludedNo
Front Caliper IncludedNo
Rear Caliper IncludedYes
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
Brake Hoses IncludedYes

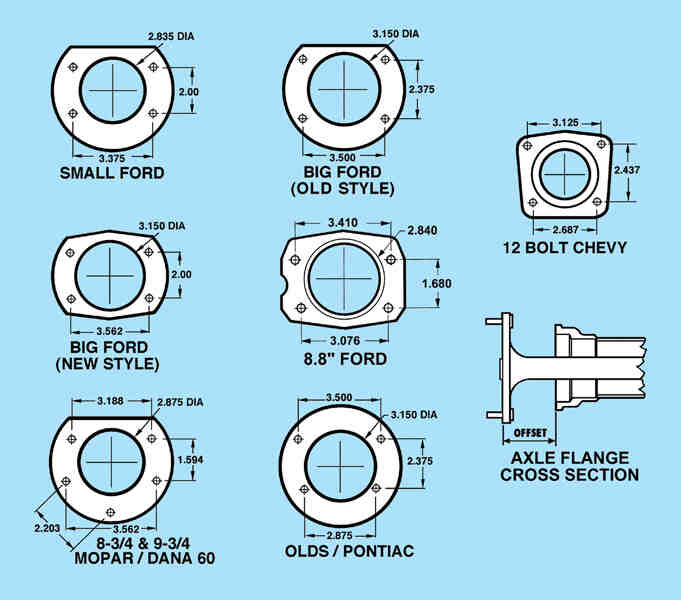

Ford Bearing End StyleBig Ford New Style (Torino)
Rear Rotor IncludedYes
ColorBlack
Bolt Pattern5 on 4.5" | 4.75"
GENERAL
Sold in QuantityKit
NotesIncludes rotors, rotor hats, caliper brackets, calipers, pads, and hardware.
GTIN Code889545022117
Rotor Thickness0.81"
Axle Flange Offset2.50"
Caliper TypeLug
Rotor Material TypeIron
Brake Lines IncludedNo
Caliper ColorBlack
Caliper Material TypeForged Aluminum
