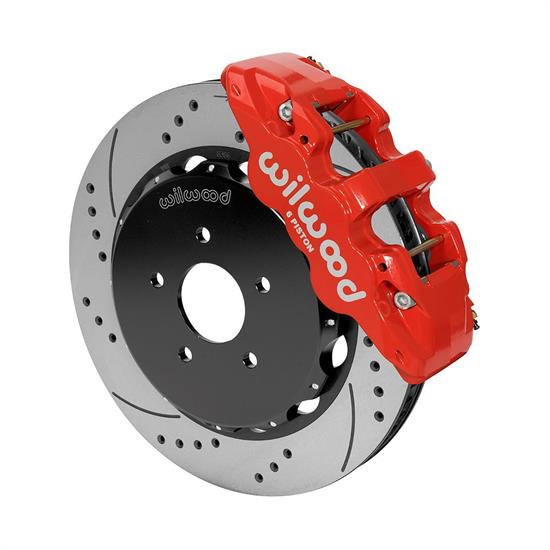

Wilwood 140-14819-DR AERO6 Big Brake Front Brake Kit, 14 In, Red
Wilwood 140-14819-DR AERO6 Big Brake Front Brake Kit, 14 In, Red

Wilwood 140-14819-DR AERO6 Big Brake Front Brake Kit, 14 In, Red

14 Inch Rotor Diameter, Vented Rotor Type, Single Caliper Pistons, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-14819-DR AERO6 Big Brake Front Brake Kit, 14 In, Red
Wilwood 140-14819-DR AERO6 Big Brake Front Brake Kit, 14 In, Red
Zoomed In Image
We estimate this item will ship on or before December 21st.
Part # 83514014819DR
$1,979.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Rotor Diameter:
14 Inch
Rotor Type:
Vented
Caliper Pistons:
Single
Caliper Finish:
Powder Coated
MFG. Part #:
140-14819-DR
Minimum Recommended Wheel Diameter:
18 Inch
Rotor Thickness:
1.25"
Stud Diameter:
0.52"
Sold in Quantity:
Kit
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
Total Piston Area:
4.04 sq. in.
Piston Type:
Stainless
Pad Area:
11.1 sq. in.
Pad Volume:
5.2 cu. in.
Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
6 - Red Powder Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
72 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Big Brake Hat - Short Offset
Hat Finish:
Black E-Coat

Info

These AERO6 calipers from Wilwood were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function.

*NOTE-Kit may fit 18" wheels, check with clearance diagram in kit installation instructions before purchase.

Schematic (JPEG)

Installation Instructions (PDF)

Kit Summary:

  • Spindle Type: Factory Disc Spindle
  • Mount Type: Radial
  • Caliper Type: 6 Type III Ano Colored Powder Coated
  • Rotor Diameter: 14 Inch
  • Wheel Diameter: 18 Inch
  • Brake Line Included: Yes

Calipers- 120-13290-RD , 120-13289-RD

  • Type: AERO6
  • Finish: Red Powder Coat
  • Piston Count: 6
  • Piston Type: Stainless
  • Mount Type: Radial
  • Pad Compound: BP-10

Rotors- 160-8397-BK , 160-8396-BK

  • Type: SRP Drilled Rotor
  • Style: SRP Drilled & Slotted
  • Surface Finish: Black E-Coat
  • Material: Spec-37 Iron
  • Outside Diameter: 14"
  • Width: 1.25"
  • Vane Count: 72 CV
  • Design Type: SRP-BLK
  • Dynamically Balanced: Yes
  • Bedded: No

Rotor Hats - 170-9289

  • Type: Big Brake Dynamic Hat - Short Offset
  • Material: Aluminum
  • Finish Color: Black E-Coat
  • Hat Offset: 0.54"
  • Bolt Circle 1: 5 x 4.50"
  • Stud Diameter BC 1: 0.52"

Application

This brake kit is compatible with the following vehicles:

  • Infiniti G35 2007-2008 G35 4 Door RWD
  • Infiniti G37 2009-2013 2 Door, Except Brembo Brakes
  • Infiniti G37 2009-2013 4 Door, Except Brembo Brakes
  • Infiniti G37 2008-2013 Brembo Brakes
  • Infiniti G37 2008 Except Brembo Brakes
  • Nissan 370Z 2009-2013 w/ Sport Package
  • Nissan 370Z 2009-2013 w/o Sport Package

Notes

*Note-This hub offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle. Check the wheel clearance diagram in the installation instructions below to verify you have adequate wheel clearance for this kit.

Some parts are not legal for use in California or other states with similar laws/regulations
