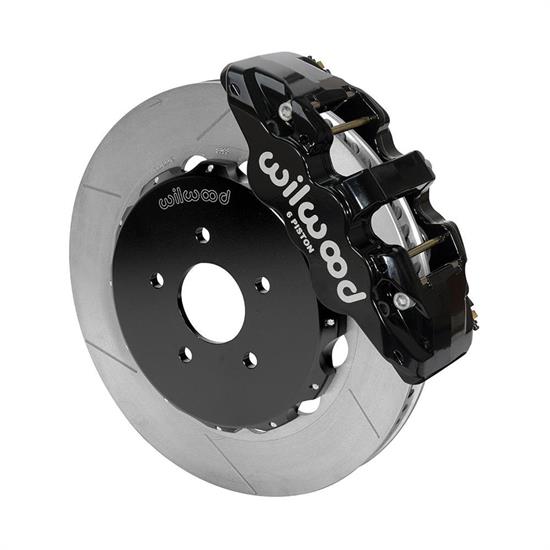

Wilwood 140-14819 AERO6 Big Brake Front Brake Kit, 14 Inch, Black

$320 Off

Wilwood 140-14819 AERO6 Big Brake Front Brake Kit, 14 Inch, Black
Wilwood

|

#83514014819

Wilwood 140-14819 AERO6 Big Brake Front Brake Kit, 14 Inch, Black

Rotor / Caliper Type:

Undrilled

DrilledDrilled / RedUndrilled / Red

$2,668.18

/kit

Factory Shipped

$2,988.36

Save $320.18


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 14 Inch Rotor Diameter, Powder Coated

    See more details

    Key Specs

    MFG. Part #140-14819
    PositionFront
    Rotor Diameter14 Inch
    Rotor TypeVented
    Caliper PistonsSix
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-14819 Details

    Wilwood 140-14819 AERO6 Big Brake Front Brake Kit, 14 Inch, BlackWilwoodDisc Brake Kits140-14819

    Application

    This brake kit is compatible with the following vehicles:

    • Infiniti G35 2007-2008 G35 4 Door RWD
    • Infiniti G37 2009-2013 2 Door, Except Brembo Brakes
    • Infiniti G37 2009-2013 4 Door, Except Brembo Brakes
    • Infiniti G37 2008-2013 Brembo Brakes
    • Infiniti G37 2008 Except Brembo Brakes
    • Nissan 370Z 2009-2013 w/ Sport Package
    • Nissan 370Z 2009-2013 w/o Sport Package

    Charts

    Specs

    Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

    Wilwood 140-14819 Specifications

    KEY SPECS
    MFG. Part #140-14819
    BrandWilwood
    PositionFront
    Rotor Diameter14 Inch
    Rotor TypeVented
    Caliper PistonsSix
    Caliper FinishPowder Coated
    Parking Brake ProvisionNo
    Minimum Recommended Wheel Diameter18 Inch
    Rotor ShapeRound
    Hardware IncludedYes
    Rotor StyleSlotted
    Spindle TypeFactory Disc Spindle
    Front Rotor IncludedYes
    Front Rotor Diameter14 Inch
    Front Caliper IncludedYes
    Rear Caliper IncludedNo
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Brake Hoses IncludedYes
    Rear Rotor IncludedNo
    Bolt Pattern5 on 4.5"
    ColorBlack
    Front Caliper Piston Quantity6
    Front Caliper FinishPowder Coated
    GENERAL
    GTIN Code889545084160
    Rotor Thickness1.25"
    Stud Diameter0.52"
    Mount TypeRadial
    Total Piston Area4.04 sq. in.
    Piston TypeStainless
    Pad Area11.1 sq. in.
    Pad Volume5.2 cu. in.
    Brake Pad CompoundBP-20
    Caliper TypeRadial
    Rotor FinishPlain
    Rotor Material TypeSpec-37 Iron
    Vane Count72 Straight Vane
    BeddedNo
    BalancedYes
    Hat TypeBig Brake Hat - Short Offset
    Hat FinishBlack E-Coat
    Hat Offset Dimension0.54"
    Brake Lines IncludedYes
    Caliper ColorBlack
    Caliper Material TypeForged Aluminum
    Hat Bolt Circle 15 x 4.50
    Rotor Hat MaterialAluminum
