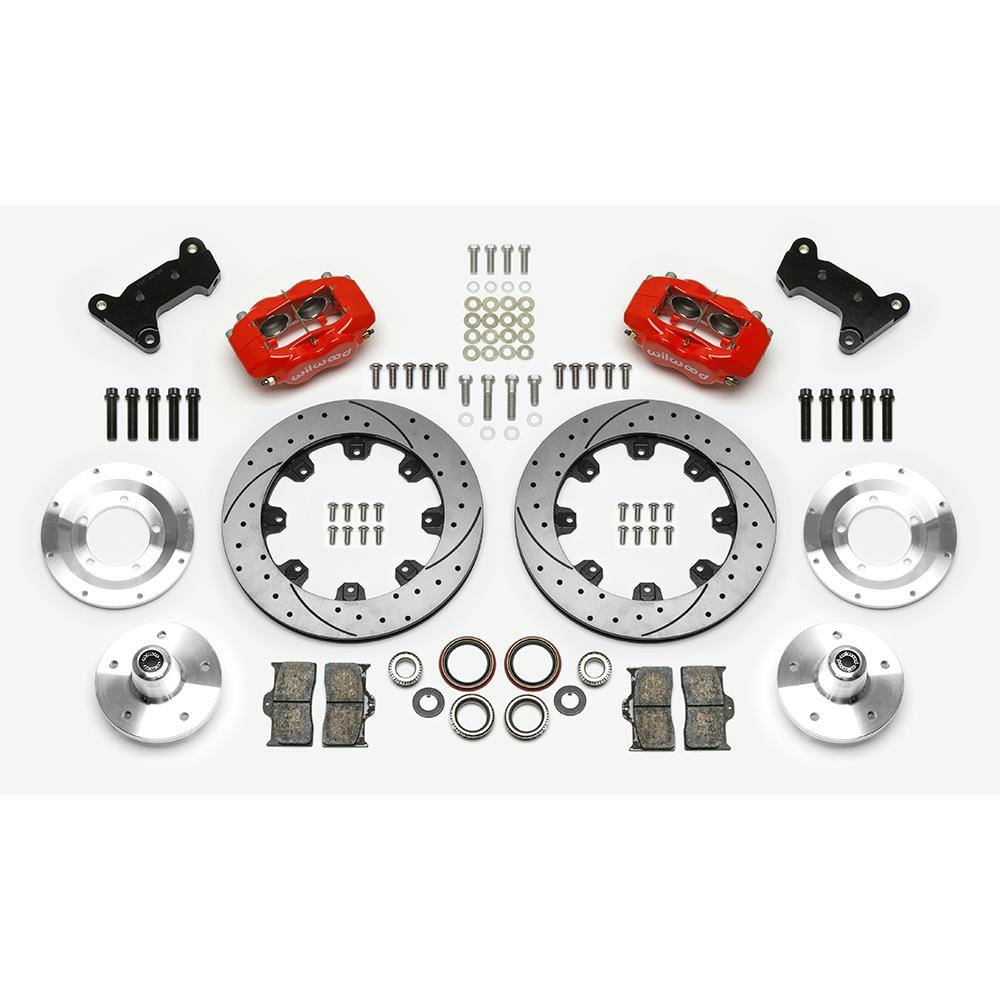

Wilwood 140-14530-DR Forged Dynalite Big Brake Front Kit

$157 Off

#83514014530DR

Wilwood 140-14530-DR Forged Dynalite Big Brake Front Kit

For 1974-1980 Pinto / 1974-1978 Mustang II Spindle

Rotor / Caliper Type:

Drilled / Red

$1,911.21

Factory Shipped

$2,068.18

Save $156.97

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Red

For 1974-1980 Pinto / 1974-1978 Mustang II Spindle

See more details

Key Specs

MFG. Part #	140-14530-DR
Position	Front
Wheel Bolt Pattern (in.)	5x5 in.
Wheel Bolt Pattern (mm)	5x127 mm
Rotor Diameter	12.19 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-14530-DR Details

Wilwood 140-14530-DR Forged Dynalite Big Brake Front KitWilwoodDisc Brake Kits140-14530-DR

For 1974-1980 Pinto / 1974-1978 Mustang II Spindle

Charts

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514014530DR)

Everything You Need to Know About Converting Drum Brakes to Disc

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 140-14530-DR Specifications

KEY SPECS
MFG. Part #	140-14530-DR
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x5 in.
Wheel Bolt Pattern (mm)	5x127 mm
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Drop Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Red
Bolt Pattern	5 on 5"
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545080858
Rotor Thickness	0.81"
Brake Pad Material	BP-10
Mount Type	Lug
Total Piston Area	4.8 sq. in.
Piston Type	Stainless
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1974-1978 Ford Mustang II

1974-1980 Ford Pinto

1975-1980 Mercury Bobcat
