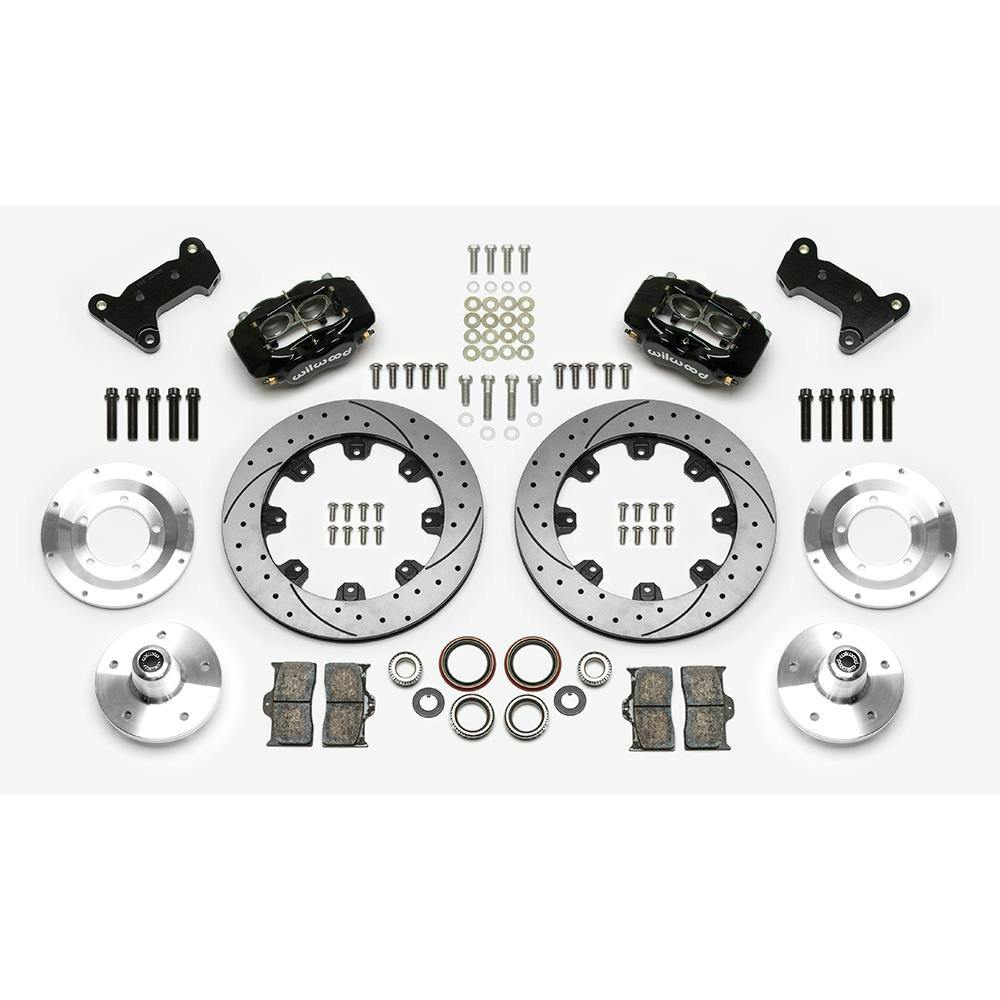

Wilwood 140-14530-D Forged Dynalite Big Brake Front, 5 x 5 Hub
- For 1974-1980 Pinto / 1974-1978 Mustang II Spindle
$1,846.59
/kit
Factory Shipped
$2,068.18
Save $221.59
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 12.19 Inch Rotor Diameter, Black, Black
- For 1974-1980 Pinto / 1974-1978 Mustang II Spindle
Key Specs
| MFG. Part # | 140-14530-D |
| Position | Front |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-14530-D Details
Wilwood 140-14530-D Details
Wilwood 140-14530-D Forged Dynalite Big Brake Front, 5 x 5 HubWilwoodDisc Brake Kits140-14530-D
For 1974-1980 Pinto / 1974-1978 Mustang II Spindle
Charts
Specs
Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.
Guides & Documents
Wilwood 140-14530-D Specifications
Wilwood 140-14530-D Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-14530-D |
| Brand | Wilwood |
| Position | Front |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Color | Black |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Drop Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 12.19 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Rear Rotor Included | No |
| Bolt Pattern | 5 on 5" |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545080841 |
| Rotor Thickness | 0.81" |
| Brake Pad Material | BP-10 |
| Mount Type | Lug |
| Total Piston Area | 4.8 sq. in. |
| Piston Type | Stainless |
| Caliper Type | Lug |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Iron |
| Bedded | No |
| Balanced | No |
| Brake Lines Included | No |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
1974-1978 Ford Mustang II
1974-1980 Ford Pinto
1975-1980 Mercury Bobcat
