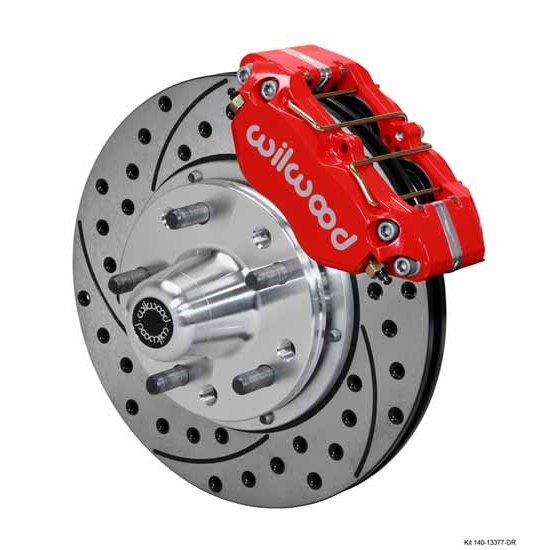

Wilwood 140-13377-DR DP-DB Front Brake Kit, 1974-80 Pinto/Mustang II

Wilwood 140-13377-DR DP-DB Front Brake Kit, 1974-80 Pinto/Mustang II
Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 11 Inch Rotor Diameter, Vented Rotor Type
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle




Wilwood 140-13377-DR DP-DB Front Brake Kit, 1974-80 Pinto/Mustang II
X



We estimate this item will ship on or before March 16th.
Part # 83514013377DR
$954.99
$965.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Specially designed for the 1974-80 Pinto/Mustang II platform
- Rotors have a 11" diameter and will fit 14" and up wheels
- Calipers have a total of 4 pistons and are powder coated red for added protection
- A drilled and slotted design ensures that maximum heat dissipation is achieved
Details
Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
No
MFG. Part #:
140-13377-DR
Minimum Recommended Wheel Diameter:
14 Inch
Rotor Thickness:
0.81"
Stud Diameter:
1/2-20"
Spindle Type:
Drop & Factory Disc Spindles
Mount Type:
Lug
OE Hub Offset:
0"
Total Piston Area:
4.80 sq. in.
Piston Type:
Aluminum
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Dynapro Dust Boot
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
30 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545020250
Front Rotor Included:
Yes
Front Rotor Diameter:
11 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
4
Front Caliper Finish:
Powder Coated Red
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Info
Wilwood's new limited offset DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable forged billet Dynapro Dust Boot caliper, these kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.
Application
- 1974-78 Ford Mustang II
- 1974-80 Ford Pinto
- 1975-80 Mercury Bobcat
- Magnum Force 3.50" Drop Spindle (74-78 Mustang II)
- Magnum Force 1.50" Drop Spindle (74-78 Mustang II)
Charts
Important Messages
- This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
