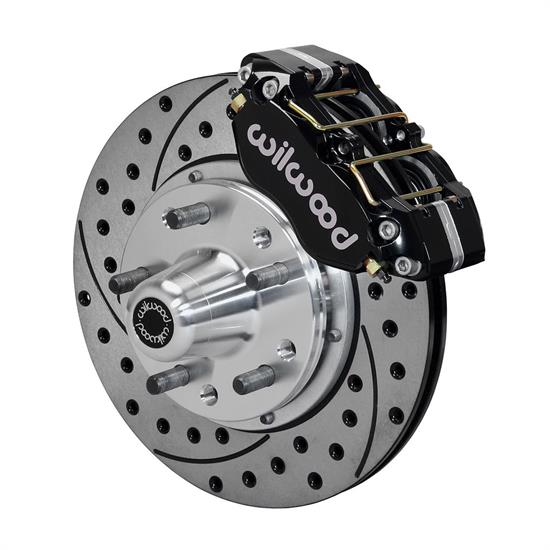

Wilwood 140-13377-D DP-DB 11 Front Brake Kit, 1974-80 Pinto/Mustang II

$108 Off

#83514013377D

Wilwood 140-13377-D DP-DB 11 Front Brake Kit, 1974-80 Pinto/Mustang II

Name: Wilwood 140-13377-D DP-DB 11 Front Brake Kit, 1974-80 Pinto/Mustang II
Brand: Wilwood
SKU: 83514013377D
Price: 1317.51 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled

UndrilledDrilled / Red Undrilled / Red

$1,317.51

/each

Factory Shipped

$1,425.72

Save $108.21

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-13377-D
Position	Front
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-13377-D Details

Wilwood's new limited offset DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable forged billet Dynapro Dust Boot caliper, these kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.

Application

1974-78 Ford Mustang II
1974-80 Ford Pinto
1975-80 Mercury Bobcat
Magnum Force 3.50" Drop Spindle (74-78 Mustang II)
Magnum Force 1.50" Drop Spindle (74-78 Mustang II)

Charts

Installation Instructions (PDF)

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514013377D)

Wilwood 140-13377-D Specifications

KEY SPECS
MFG. Part #	140-13377-D
Brand	Wilwood
Position	Front
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Drop & Factory Disc Spindles
Front Rotor Included	Yes
Front Rotor Diameter	11 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Black
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545020236
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Mount Type	Lug
OE Hub Offset	0"
Total Piston Area	4.80 sq. in.
Piston Type	Aluminum
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	30 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Stud Diameter 2	1/2-20

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1974-1978 Ford Mustang II

1974-1980 Ford Pinto

1975-1980 Mercury Bobcat
