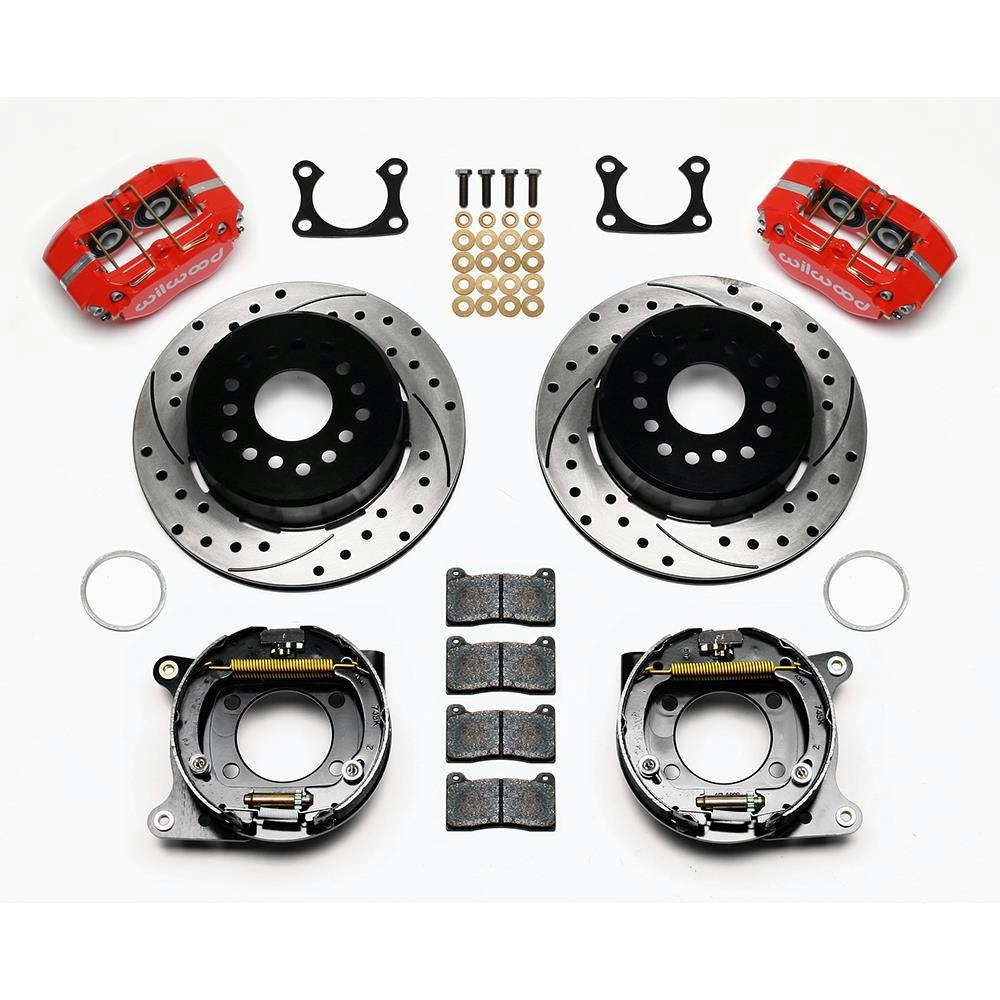

Wilwood 140-13204-DR Dynapro Dust-Boot Rear E-Brake Kit

$150 Off

Wilwood 140-13204-DR Dynapro Dust-Boot Rear E-Brake Kit
Wilwood

|

#83514013204DR

Wilwood 140-13204-DR Dynapro Dust-Boot Rear E-Brake Kit

  • DP-DB Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake
  • Dynapro Dustboot calipers
  • One-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines
See More

Rotor / Caliper Type:

Drilled / Red

DrilledUndrilledUndrilled / Red

$1,253.44

/each

Factory Shipped

$1,403.85

Save $150.41


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Rear Position, 12.19 Inch Rotor Diameter

  • DP-DB Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake
  • Dynapro Dustboot calipers
  • One-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines
  • These kits were developed for applications or locations that require or prefer a dust-sealed piston
  • Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments
See more details

Key Specs

MFG. Part #140-13204-DR
PositionRear
Rotor Diameter12.19 Inch
Rotor TypeVented
Caliper PistonsFour
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-13204-DR Details

  • DP-DB Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake
  • Dynapro Dustboot calipers, 12
  • 19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines
  • These kits were developed for applications or locations that require or prefer a dust-sealed piston
  • Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments
  • The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
  • Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application

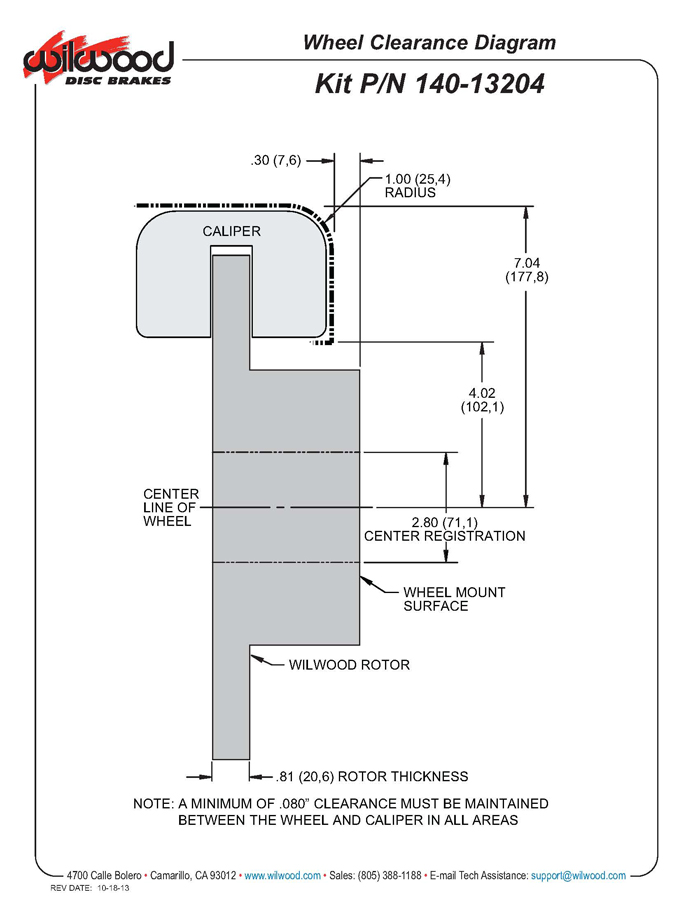

Charts

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Wilwood 140-13204-DR Specifications

KEY SPECS
MFG. Part #140-13204-DR
BrandWilwood
PositionRear
Rotor Diameter12.19 Inch
Rotor TypeVented
Caliper PistonsFour
Caliper FinishPowder Coated
ColorRed
Parking Brake ProvisionYes
Minimum Recommended Wheel Diameter15 Inch
Rotor ShapeRound
Hardware IncludedYes
Rotor StyleDrilled & Slotted
Front Rotor IncludedNo
Front Caliper IncludedNo
Rear Caliper IncludedYes
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
Brake Hoses IncludedNo
Ford Bearing End StyleBig Ford (Old Style)
Rear Rotor IncludedYes
Bolt Pattern5 on 4.5" | 4.75"
GENERAL
Sold in QuantityKit
GTIN Code889545019247
NotesFits 5 x 4.50 in./5 x 4.75 in./5 x 5 in. bolt patterns.
Rotor Thickness0.81"
Axle Flange Offset2.36"
Mount TypeLug
Total Piston Area3 sq. in.
Piston TypeAluminum
Pad Area6.36 sq. in.
Pad Volume2.1 cu. in.
Brake Pad CompoundBP-10
Caliper TypeLug
Rotor FinishBlack E-Coat
Rotor Material TypeIron
Vane Count32 Straight Vane
BeddedNo
BalancedNo
Brake Lines IncludedNo
Caliper ColorRed
Caliper Material TypeForged Aluminum
Parking Brake StyleInternal Drum
Rear Caliper ColorRed
Rear Caliper MaterialForged Billet Aluminum
Rear Caliper Piston QuantityFour
Rear Rotor ConstructionVented
Rear Rotor Diameter12.19"
Rear Rotor StyleDrilled and Slotted
Rear Rotor Thickness0.81"
