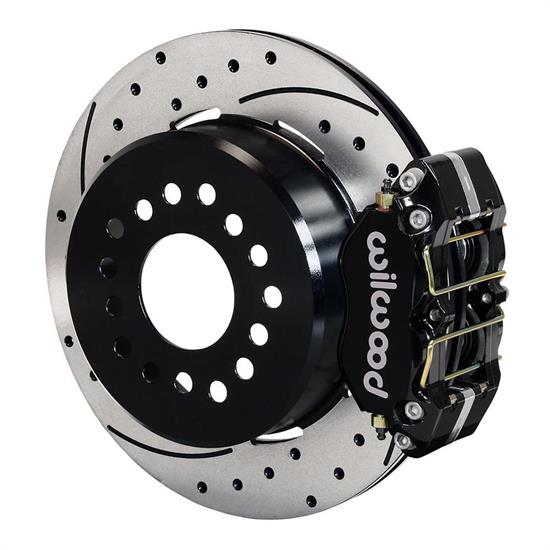

Wilwood 140-13204-D DP-DB Rear Parking Brake Kit, Big Ford 2.36 Inch

$107 Off

#83514013204D

Wilwood 140-13204-D DP-DB Rear Parking Brake Kit, Big Ford 2.36 Inch

Name: Wilwood 140-13204-D DP-DB Rear Parking Brake Kit, Big Ford 2.36 Inch
Brand: Wilwood
SKU: 83514013204D
Price: 1297.31 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled

UndrilledDrilled / Red Undrilled / Red

$1,297.31

/each

Factory Shipped

$1,403.85

Save $106.54

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Rear Position, 12.19 Inch Rotor Diameter

See more details

Key Specs

MFG. Part #	140-13204-D
Position	Rear
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Wheel Bolt Pattern (mm)	5x114.3 mm \| 5x120.65 mm
Rotor Diameter	12.19 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-13204-D Details

DP-DB Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynapro Dust Boot calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. These kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Charts

Installation Instructions (PDF)

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514013204D)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-13204-D Specifications

KEY SPECS
MFG. Part #	140-13204-D
Brand	Wilwood
Position	Rear
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Wheel Bolt Pattern (mm)	5x114.3 mm \| 5x120.65 mm
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	Yes
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Ford Bearing End Style	Big Ford (Old Style)
Rear Rotor Included	Yes
Color	Black
Bolt Pattern	5 on 4.5" \| 4.75"

GENERAL
GTIN Code	889545019230
Rotor Thickness	0.81"
Axle Flange Offset	2.36"
Mount Type	Lug
Total Piston Area	3 sq. in.
Piston Type	Aluminum
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1966-1986 Ford Bronco

1957-1959 Ford Club

1962-1967 Ford Club Wagon

1957-1974 Ford Country Sedan

1957-1974 Ford Country Squire

1957-1960 Ford Courier Sedan Delivery

1957-1972 Ford Custom

1957-1960 Ford Custom 300

1964-1977 Ford Custom 500

1957-1958 Ford Del Rio Wagon

1968-1983 Ford E-100 Econoline

1975-1983 Ford E-100 Econoline Club Wagon

1975-1987 Ford E-150 Econoline

1975-1987 Ford E-150 Econoline Club Wagon

1968-1974 Ford E-200 Econoline

1963-1967 Ford Econoline

1957-1983 Ford F-100

1975-1986 Ford F-150

1957-1970 Ford Fairlane

1959-1967 Ford Galaxie

1962-1974 Ford Galaxie 500

1972-1976 Ford Gran Torino

1975-1980 Ford Granada

1965-1978 Ford LTD

1977-1979 Ford LTD II

1965-1973 Ford Mustang

1957-1974 Ford Ranch Wagon

1957-1979 Ford Ranchero

1957-1959 Ford Skyliner

1957-1960 Ford Sunliner

1957-1979 Ford Thunderbird

1968-1976 Ford Torino

1957-1960 Ford Victoria

1977-1980 Lincoln Versailles

1967 Mercury Brougham

1964-1967 Mercury Caliente

1957-1974 Mercury Colony Park

1966-1969 Mercury Comet

1957-1968 Mercury Commuter

1967-1979 Mercury Cougar

1959-1963 Mercury Country Cruiser

1966-1971 Mercury Cyclone

1975-1978 Mercury Grand Marquis

1963-1970 Mercury Marauder

1967-1978 Mercury Marquis

1961-1963 Mercury Meteor

1975-1980 Mercury Monarch

1957-1968 Mercury Montclair

1968-1976 Mercury Montego

1957-1974 Mercury Monterey

1958-1968 Mercury Park Lane

1966-1967 Mercury Villager
