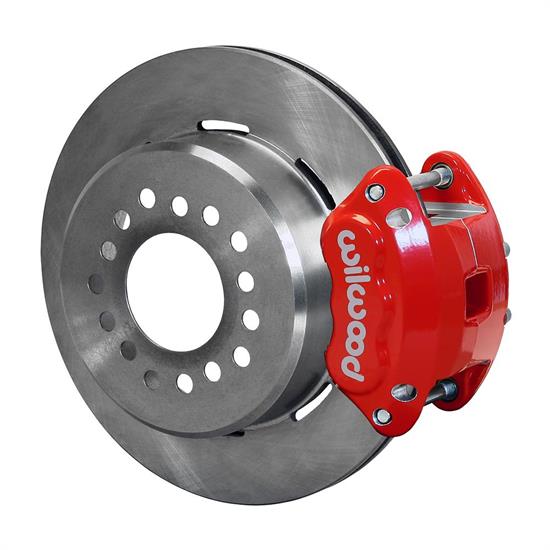

Wilwood 140-12569-R D154 Pro Series Rear Brake Kit,63-87 GM Pickup/SUV
Wilwood 140-12569-R D154 Pro Series Rear Brake Kit,63-87 GM Pickup/SUV

Wilwood 140-12569-R D154 Pro Series Rear Brake Kit,63-87 GM Pickup/SUV

Rear Position, Multi: 5 on 5" | 4.75" | 4.50" Bolt Pattern, 12.19 Inch Rotor Diameter, Red

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-12569-R D154 Pro Series Rear Brake Kit,63-87 GM Pickup/SUV
Wilwood 140-12569-R D154 Pro Series Rear Brake Kit,63-87 GM Pickup/SUV
Zoomed In Image
We estimate this item will ship on or before December 21st.
Part # 83514012569R
Save 7%
$694.99
$750.39
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Rear
Bolt Pattern:
Multi: 5 on 5" | 4.75" | 4.50"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Two
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
Yes
MFG. Part #:
140-12569-R
Rotor Thickness:
0.81"
Offset:
2.42"
Mount Type:
Floating
Total Piston Area:
1.98 sq. in.
Pad Area:
8.70 sq. in.
Pad Volume:
2.90 cu. in.
Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
D154
Rotor Finish:
Plain
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
GTIN Code:
889545016949

Info

D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.

Installation Instructions (PDF)

Application

1963 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1964 Chevrolet C10 Pickup Drum Brake Spindle
4 x 2
1964 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1964 Chevrolet C10 Surburban Drum Brake Spindle
4 x 2
1964 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1964 GMC Suburban 1500 Drum Brake Spindle
4 x 2
1964 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
5 Lug only
1965 Chevrolet C10 Pickup Drum Brake Spindle
4 x 2
1965 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1965 Chevrolet C10 Surburban Drum Brake Spindle
4 x 2
1965 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1965 GMC Suburban 1500 Drum Brake Spindle
4 x 2
1965 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
5 Lug only
1966 Chevrolet C10 Pickup Drum Brake Spindle
4 x 2
1966 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1966 Chevrolet C10 Surburban Drum Brake Spindle
4 x 2
1966 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1966 GMC C1500 Pickup Drum Brake Spindle
4 x 2
1966 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1966 GMC Suburban 1500 Drum Brake Spindle
4 x 2
1966 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
5 Lug only
1967 Chevrolet C10 Pickup Drum Brake Spindle
4 x 2
1967 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1967 Chevrolet C10 Surburban Drum Brake Spindle
4 x 2
1967 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1967 GMC C1500 Pickup Drum Brake Spindle
4 x 2
1967 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1967 GMC Suburban 1500 Drum Brake Spindle
4 x 2
1967 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
5 Lug only
1968 Chevrolet C10 Pickup Drum Brake Spindle
4 x 2
1968 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1968 Chevrolet C10 Surburban Drum Brake Spindle
4 x 2
1968 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1968 GMC C1500 Pickup Drum Brake Spindle
4 x 2
1968 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1969 Chevrolet C10 Pickup Drum Brake Spindle
4 x 2
1969 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1969 Chevrolet C10 Surburban Drum Brake Spindle
4 x 2
1969 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1969 GMC C1500 Pickup Drum Brake Spindle
4 x 2
1969 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1969 GMC Suburban 1500 Drum Brake Spindle
4 x 2
1969 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
5 Lug only
1970 Chevrolet C10 Pickup Drum Brake Spindle
4 x 2
1970 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1970 Chevrolet C10 Surburban Drum Brake Spindle
4 x 2
1970 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1970 GMC C1500 Pickup Drum Brake Spindle
4 x 2
1970 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1970 GMC Suburban 1500 Drum Brake Spindle
4 x 2
1970 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
5 Lug only
1971 Chevrolet Blazer 4 x 2 w/ OE Disc Brake Spindle
1971 Chevrolet C10 Pickup 4 x 2 w/ OE Disc Brake Spindle
1971 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1971 Chevrolet C10 Suburban 4 x 2 w/ OE Disc Brake Spindle
1971 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1971 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
1971 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1971 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
1971 GMC P15 Series 4 x 2 w/ OE Disc Brake Spindle
1972 Chevrolet Blazer 4 x 2 w/ OE Disc Brake Spindle
1972 Chevrolet C10 Pickup 4 x 2 w/ OE Disc Brake Spindle
1972 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1972 Chevrolet C10 Suburban 4 x 2 w/ OE Disc Brake Spindle
1972 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1972 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
1972 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1972 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
1972 GMC P15 Series 4 x 2 w/ OE Disc Brake Spindle
1973 Chevrolet Blazer 4 x 2
OE Disc Brake Spindle
1973 Chevrolet C10 Pickup 4 x 2
OE Disc Brake Spindle
1973 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1973 Chevrolet C10 Suburban 4 x 2
OE Disc Brake Spindle
1973 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1973 Chevrolet G10 Van All
1973 Chevrolet G20 Van All
1973 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
1973 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1973 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
1973 GMC P15 Series All
1974 Chevrolet Blazer 4 x 2
OE Disc Brake Spindle
1974 Chevrolet C10 Pickup 4 x 2
OE Disc Brake Spindle
1974 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1974 Chevrolet C10 Suburban 4 x 2
OE Disc Brake Spindle
1974 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1974 Chevrolet G10 Van All
1974 Chevrolet G20 Van All
1974 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
1974 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1974 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
1974 GMC P15 Series All
1975 Chevrolet Blazer 4 x 2
OE Disc Brake Spindle
1975 Chevrolet C10 Pickup 4 x 2
OE Disc Brake Spindle
1975 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1975 Chevrolet C10 Suburban 4 x 2
OE Disc Brake Spindle
1975 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1975 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
1975 GMC P15 Series All
1976 Chevrolet Blazer 4 x 2
OE Disc Brake Spindle
1976 Chevrolet C10 Pickup 4 x 2
OE Disc Brake Spindle
1976 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1976 Chevrolet C10 Suburban 4 x 2
OE Disc Brake Spindle
1976 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1976 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
1976 GMC P15 Series All
1977 Chevrolet Blazer 4 x 2
OE Disc Brake Spindle
1977 Chevrolet C10 Pickup 4 x 2
OE Disc Brake Spindle
1977 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1977 Chevrolet C10 Suburban 4 x 2
OE Disc Brake Spindle
1977 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1977 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
1977 GMC P15 Series All
1978 Chevrolet Blazer 4 x 2
OE Disc Brake Spindle
1978 Chevrolet C10 Pickup 4 x 2
OE Disc Brake Spindle
1978 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1978 Chevrolet C10 Suburban 4 x 2
OE Disc Brake Spindle
1978 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1978 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
1978 GMC P15 Series All
1979 Chevrolet Blazer 4 x 2
OE Disc Brake Spindle
1979 Chevrolet C10 Pickup 4 x 2
OE Disc Brake Spindle
1979 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1979 Chevrolet C10 Suburban 4 x 2
OE Disc Brake Spindle
1979 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1979 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
1979 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1979 GMC C1500 Suburban 4 x 2 w/ OE Disc Brake Spindle
1979 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1979 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
1979 GMC P15 Series All
1980 Chevrolet Blazer 4 x 2
OE Disc Brake Spindle
1980 Chevrolet C10 Pickup 4 x 2
OE Disc Brake Spindle
1980 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1980 Chevrolet C10 Suburban 4 x 2
OE Disc Brake Spindle
1980 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1980 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
1980 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1980 GMC C1500 Suburban 4 x 2 w/ OE Disc Brake Spindle
1980 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1980 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
1980 GMC P15 Series All
1981 Chevrolet Blazer 4 x 2
1981 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1981 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1981 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1981 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1981 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1981 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1981 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1981 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1981 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1981 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1981 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1981 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1981 GMC Jimmy 4 x 2
1982 Chevrolet Blazer 4 x 2
1982 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1982 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1982 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1982 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1982 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1982 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1982 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1982 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1982 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1982 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1982 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1982 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1982 GMC Jimmy 4 x 2
1983 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1983 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1983 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1983 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1983 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1983 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1983 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1983 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1983 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1983 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1983 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1983 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1984 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1984 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1984 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1984 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1984 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1984 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1984 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1984 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1984 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1984 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1984 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1984 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1985 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1985 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1985 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1985 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1985 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1985 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1985 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1985 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1985 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1985 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1985 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1985 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1986 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1986 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1986 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1986 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1986 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1986 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1986 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1986 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1986 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1986 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1986 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1986 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
5 Lug only
1987 Chevrolet R10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1987 Chevrolet R10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1987 Chevrolet R10 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1987 Chevrolet R10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1987 Chevrolet R10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
1987 GMC R1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
1987 GMC R1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
1987 GMC R1500 Pickup Vehicles using CPP 2 Drop Spindle
5 Lug only
1987 GMC R1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
1987 GMC R1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor

Some parts are not legal for use in California or other states with similar laws/regulations

More Like This

Reviews

Q & A

Videos & Articles

You May Also Like

Suggestions
Error
Note
Ok
