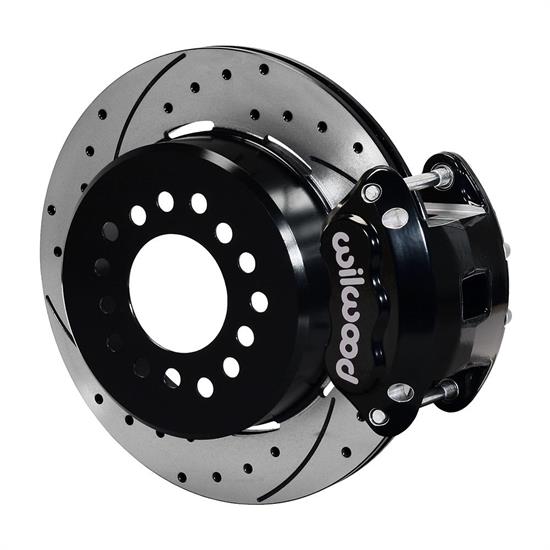

Product Summary

Rear Position, 12.19 Inch Rotor Diameter, Powder Coated

    Key Specs

    MFG. Part #140-12569-D
    BrandWilwood
    PositionRear
    Rotor Diameter12.19 Inch
    Rotor TypeVented

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.

    Application

    1963 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1964 Chevrolet C10 Pickup Drum Brake Spindle
    4 x 2
    1964 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1964 Chevrolet C10 Surburban Drum Brake Spindle
    4 x 2
    1964 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1964 GMC Suburban 1500 Drum Brake Spindle
    4 x 2
    1964 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1965 Chevrolet C10 Pickup Drum Brake Spindle
    4 x 2
    1965 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1965 Chevrolet C10 Surburban Drum Brake Spindle
    4 x 2
    1965 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1965 GMC Suburban 1500 Drum Brake Spindle
    4 x 2
    1965 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1966 Chevrolet C10 Pickup Drum Brake Spindle
    4 x 2
    1966 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1966 Chevrolet C10 Surburban Drum Brake Spindle
    4 x 2
    1966 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1966 GMC C1500 Pickup Drum Brake Spindle
    4 x 2
    1966 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1966 GMC Suburban 1500 Drum Brake Spindle
    4 x 2
    1966 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1967 Chevrolet C10 Pickup Drum Brake Spindle
    4 x 2
    1967 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1967 Chevrolet C10 Surburban Drum Brake Spindle
    4 x 2
    1967 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1967 GMC C1500 Pickup Drum Brake Spindle
    4 x 2
    1967 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1967 GMC Suburban 1500 Drum Brake Spindle
    4 x 2
    1967 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1968 Chevrolet C10 Pickup Drum Brake Spindle
    4 x 2
    1968 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1968 Chevrolet C10 Surburban Drum Brake Spindle
    4 x 2
    1968 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1968 GMC C1500 Pickup Drum Brake Spindle
    4 x 2
    1968 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1969 Chevrolet C10 Pickup Drum Brake Spindle
    4 x 2
    1969 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1969 Chevrolet C10 Surburban Drum Brake Spindle
    4 x 2
    1969 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1969 GMC C1500 Pickup Drum Brake Spindle
    4 x 2
    1969 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1969 GMC Suburban 1500 Drum Brake Spindle
    4 x 2
    1969 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1970 Chevrolet C10 Pickup Drum Brake Spindle
    4 x 2
    1970 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1970 Chevrolet C10 Surburban Drum Brake Spindle
    4 x 2
    1970 Chevrolet C10 Surburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1970 GMC C1500 Pickup Drum Brake Spindle
    4 x 2
    1970 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1970 GMC Suburban 1500 Drum Brake Spindle
    4 x 2
    1970 GMC Suburban 1500 Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1971 Chevrolet Blazer 4 x 2 w/ OE Disc Brake Spindle
    1971 Chevrolet C10 Pickup 4 x 2 w/ OE Disc Brake Spindle
    1971 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1971 Chevrolet C10 Suburban 4 x 2 w/ OE Disc Brake Spindle
    1971 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1971 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
    1971 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1971 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
    1971 GMC P15 Series 4 x 2 w/ OE Disc Brake Spindle
    1972 Chevrolet Blazer 4 x 2 w/ OE Disc Brake Spindle
    1972 Chevrolet C10 Pickup 4 x 2 w/ OE Disc Brake Spindle
    1972 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1972 Chevrolet C10 Suburban 4 x 2 w/ OE Disc Brake Spindle
    1972 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1972 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
    1972 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1972 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
    1972 GMC P15 Series 4 x 2 w/ OE Disc Brake Spindle
    1973 Chevrolet Blazer 4 x 2
    OE Disc Brake Spindle
    1973 Chevrolet C10 Pickup 4 x 2
    OE Disc Brake Spindle
    1973 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1973 Chevrolet C10 Suburban 4 x 2
    OE Disc Brake Spindle
    1973 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1973 Chevrolet G10 Van All
    1973 Chevrolet G20 Van All
    1973 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
    1973 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1973 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
    1973 GMC P15 Series All
    1974 Chevrolet Blazer 4 x 2
    OE Disc Brake Spindle
    1974 Chevrolet C10 Pickup 4 x 2
    OE Disc Brake Spindle
    1974 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1974 Chevrolet C10 Suburban 4 x 2
    OE Disc Brake Spindle
    1974 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1974 Chevrolet G10 Van All
    1974 Chevrolet G20 Van All
    1974 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
    1974 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1974 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
    1974 GMC P15 Series All
    1975 Chevrolet Blazer 4 x 2
    OE Disc Brake Spindle
    1975 Chevrolet C10 Pickup 4 x 2
    OE Disc Brake Spindle
    1975 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1975 Chevrolet C10 Suburban 4 x 2
    OE Disc Brake Spindle
    1975 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1975 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
    1975 GMC P15 Series All
    1976 Chevrolet Blazer 4 x 2
    OE Disc Brake Spindle
    1976 Chevrolet C10 Pickup 4 x 2
    OE Disc Brake Spindle
    1976 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1976 Chevrolet C10 Suburban 4 x 2
    OE Disc Brake Spindle
    1976 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1976 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
    1976 GMC P15 Series All
    1977 Chevrolet Blazer 4 x 2
    OE Disc Brake Spindle
    1977 Chevrolet C10 Pickup 4 x 2
    OE Disc Brake Spindle
    1977 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1977 Chevrolet C10 Suburban 4 x 2
    OE Disc Brake Spindle
    1977 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1977 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
    1977 GMC P15 Series All
    1978 Chevrolet Blazer 4 x 2
    OE Disc Brake Spindle
    1978 Chevrolet C10 Pickup 4 x 2
    OE Disc Brake Spindle
    1978 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1978 Chevrolet C10 Suburban 4 x 2
    OE Disc Brake Spindle
    1978 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1978 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
    1978 GMC P15 Series All
    1979 Chevrolet Blazer 4 x 2
    OE Disc Brake Spindle
    1979 Chevrolet C10 Pickup 4 x 2
    OE Disc Brake Spindle
    1979 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1979 Chevrolet C10 Suburban 4 x 2
    OE Disc Brake Spindle
    1979 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1979 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
    1979 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1979 GMC C1500 Suburban 4 x 2 w/ OE Disc Brake Spindle
    1979 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1979 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
    1979 GMC P15 Series All
    1980 Chevrolet Blazer 4 x 2
    OE Disc Brake Spindle
    1980 Chevrolet C10 Pickup 4 x 2
    OE Disc Brake Spindle
    1980 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1980 Chevrolet C10 Suburban 4 x 2
    OE Disc Brake Spindle
    1980 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1980 GMC C1500 Pickup 4 x 2 w/ OE Disc Brake Spindle
    1980 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1980 GMC C1500 Suburban 4 x 2 w/ OE Disc Brake Spindle
    1980 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1980 GMC Jimmy 4 x 2 w/ OE Disc Brake Spindle
    1980 GMC P15 Series All
    1981 Chevrolet Blazer 4 x 2
    1981 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1981 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1981 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1981 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1981 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1981 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1981 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1981 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1981 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1981 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1981 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1981 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1981 GMC Jimmy 4 x 2
    1982 Chevrolet Blazer 4 x 2
    1982 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1982 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1982 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1982 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1982 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1982 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1982 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1982 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1982 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1982 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1982 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1982 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1982 GMC Jimmy 4 x 2
    1983 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1983 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1983 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1983 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1983 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1983 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1983 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1983 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1983 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1983 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1983 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1983 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1984 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1984 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1984 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1984 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1984 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1984 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1984 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1984 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1984 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1984 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1984 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1984 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1985 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1985 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1985 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1985 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1985 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1985 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1985 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1985 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1985 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1985 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1985 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1985 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1986 Chevrolet C10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1986 Chevrolet C10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1986 Chevrolet C10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1986 Chevrolet C10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1986 Chevrolet C10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1986 Chevrolet C10 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1986 GMC C1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1986 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1986 GMC C1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1986 GMC C1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1986 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1986 GMC C1500 Suburban Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1987 Chevrolet R10 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1987 Chevrolet R10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1987 Chevrolet R10 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1987 Chevrolet R10 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1987 Chevrolet R10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor
    1987 GMC R1500 Pickup 4 x 2 w/ 1.00 Wide Front Rotor
    1987 GMC R1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor
    1987 GMC R1500 Pickup Vehicles using CPP 2 Drop Spindle
    5 Lug only
    1987 GMC R1500 Suburban 4 x 2 w/ 1.00 Wide Front Rotor
    1987 GMC R1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor

    Charts

    Specifications

    KEY SPECS
    MFG. Part #140-12569-D
    BrandWilwood
    PositionRear
    Rotor Diameter12.19 Inch
    Rotor TypeVented
    GENERAL
    Bolt PatternMulti: 5 on 4.5" | 4.75" | 5"
    Caliper PistonsTwo
    Caliper FinishPowder Coated
    ColorBlack
    Parking Brake ProvisionYes
    Minimum Recommended Wheel Diameter16 Inch
    Rotor Thickness0.81"
    Offset2.42"
    Mount TypeFloating
    Total Piston Area1.98 sq. in.
    Piston TypeStainless
    Pad Area8.70 sq. in.
    Pad Volume2.90 cu. in.
    Brake Pad CompoundBP-10
    Rotor StyleDrilled and Slotted
    Caliper TypeD154
    Rotor FinishBlack E-Coat
    Rotor Material TypeCast Iron
    Vane Count32 Straight Vane
    BeddedNo
    BalancedNo
    GTIN Code889545016925
    Front Rotor IncludedNo
    Rear Rotor IncludedYes
    Front Caliper IncludedNo
    Rear Caliper IncludedYes
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
