Front Position, 12.19 Inch Rotor Diameter, Red
| MFG. Part # | 140-12297-R |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Rotor Diameter | 12.19 Inch |
Need help?
855.313.9176Quick and Easy Returns

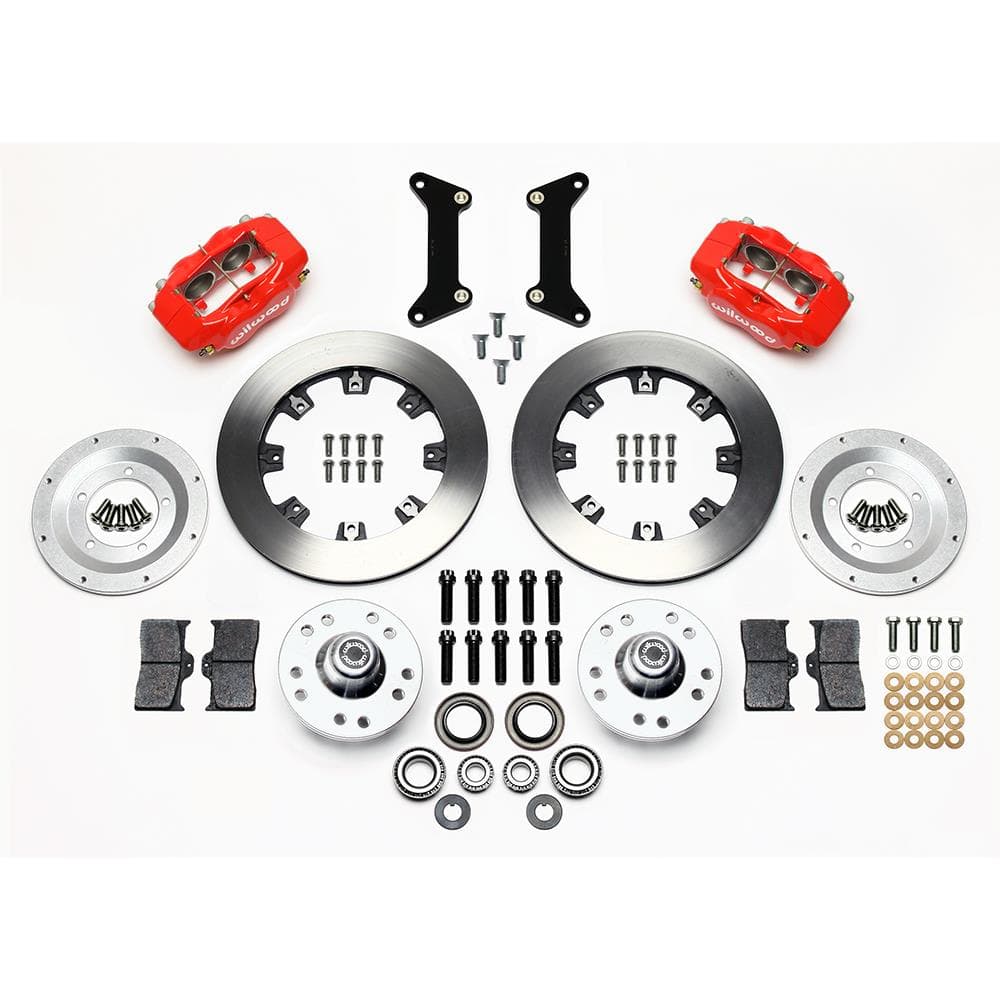

Return PolicyWilwood's 140-12297-R is a Forged Dynalite Big Brake front hub kit built for traditional non-ABS spindles on American muscle cars and vintage rods. This kit uses forged billet Dynalite calipers, 12.19-inch rotors, and Wilwood high-performance brake pads to deliver a substantial upgrade in stopping power for custom street, strip, and show applications.
This kit is easy to position as a classic front brake upgrade that combines larger rotor diameter, proven Wilwood caliper performance, and a bold red powder-coated finish. It is a strong match for builds that need both braking confidence and a high-detail under-wheel appearance.
Application
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-12297-R |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Plain Face |
| Spindle Type | Factory Disc Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 12.19 in./309.63mm |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | Yes |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Red |
| GENERAL | |
| Sold in Quantity | Each |
| GTIN Code | 889545016062 |
| Rotor Thickness | 0.81" |
| Stud Diameter | 1/2-20 |
| Mount Type | Lug |
| OE Hub Offset | 0" |
| Total Piston Area | 4.80 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.1 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Natural |
| Rotor Material Type | Iron |
| Vane Count | 32 Straight Vane |
| Bedded | No |
| Balanced | No |
| Brake Lines Included | No |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
Be the first to ask a question.
1979-1981 Buick Century
1984-1987 Buick Grand National
1979-1987 Buick Regal
1995-1997 Chevy Blazer
1979-1987 Chevy El Camino
1979-1983 Chevy Malibu
1979-1988 Chevy Monte Carlo
1982-2002 Chevy S10
1983-1994 Chevy S10 Blazer
1991 GMC Jimmy
1982-1990 GMC S15
1983-1991 GMC S15 Jimmy
1996-2000 Isuzu Hombre
1979-1987 Oldsmobile Cutlass
1981-1983 Oldsmobile Cutlass Cruiser
1982-1988 Oldsmobile Cutlass Supreme
1982-1986 Pontiac Bonneville
1979-1980 Pontiac Grand Am
1979-1987 Pontiac Grand Prix
1979-1981 Pontiac LeMans
