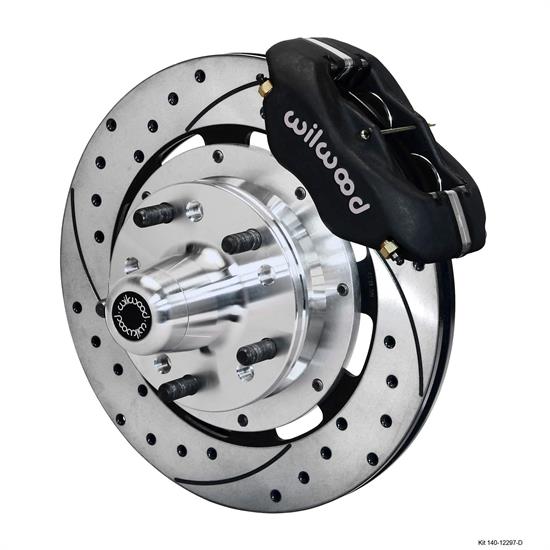

Wilwood 140-12297-D FDLI Front Disc Brake Kit, 1979-02 GM G-Body/S-10
Wilwood 140-12297-D FDLI Front Disc Brake Kit, 1979-02 GM G-Body/S-10

Wilwood 140-12297-D FDLI Front Disc Brake Kit, 1979-02 GM G-Body/S-10

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 12.19 Inch Rotor Diameter, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-12297-D FDLI Front Disc Brake Kit, 1979-02 GM G-Body/S-10
Wilwood 140-12297-D FDLI Front Disc Brake Kit, 1979-02 GM G-Body/S-10
Wilwood 140-12297-D FDLI Front Disc Brake Kit, 1979-02 GM G-Body/S-10
Wilwood 140-12297-D FDLI Front Disc Brake Kit, 1979-02 GM G-Body/S-10
Wilwood 140-12297-D FDLI Front Disc Brake Kit, 1979-02 GM G-Body/S-10
X
Wilwood 140-12297-D FDLI Front Disc Brake Kit, 1979-02 GM G-Body/S-10
Wilwood 140-12297-D FDLI Front Disc Brake Kit, 1979-02 GM G-Body/S-10
Wilwood 140-12297-D FDLI Front Disc Brake Kit, 1979-02 GM G-Body/S-10
Zoomed In Image
We estimate this item will ship on or before August 21st.
Part # 83514012297D
$927.49
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Fits the 1979-2002 GM G-bodies/S10's
  • 12.19" diameter rotors is designed to work with 15"-up wheels
  • Four piston rotors are powder coated black for added corrosion protection and style
  • Features dual 5 on 4.5"/4.75" bolt pattern
  • Drilled and slotted rotors provide great heat dissipation

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
MFG. Part #:
140-12297-D
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
0.81"
Stud Diameter:
1/2-20"
Spindle Type:
Factory Disc Spindle
Mount Type:
Lug
OE Hub Offset:
0"
Total Piston Area:
4.80 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Forged Dynalite
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545016048

Info

FDLI Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Wheel Clearance Diagram

Application

1979 Buick Century All
1979 Buick Regal All
1979 Chevrolet El Camino All
1979 Chevrolet Malibu All
1979 Chevrolet Monte Carlo All
1979 Oldsmobile Cutlass All
1979 Pontiac Grand Am All
1979 Pontiac Grand Prix All
1979 Pontiac LeMans All
1980 Buick Century All
1980 Buick Regal All
1980 Chevrolet El Camino All
1980 Chevrolet Malibu All
1980 Chevrolet Monte Carlo All
1980 Oldsmobile Cutlass All
1980 Oldsmobile Cutlass Cruiser All
1980 Pontiac Grand Am All
1980 Pontiac Grand Prix All
1980 Pontiac LeMans All
1981 Buick Century All
1981 Buick Regal All
1981 Chevrolet El Camino All
1981 Chevrolet Malibu All
1981 Chevrolet Monte Carlo All
1981 Oldsmobile Cutlass All
1981 Oldsmobile Cutlass Cruiser All
1981 Pontiac Grand Prix All
1981 Pontiac LeMans All (Canada)
1982 Buick Regal All
1982 Buick Regal Grand National All
1982 Chevrolet El Camino All
1982 Chevrolet Malibu All
1982 Chevrolet Monte Carlo All
1982 Chevrolet S10 Pickup All
1982 GMC S15 Pickup All
1982 Oldsmobile Cutlass Cruiser All
1982 Oldsmobile Cutlass Supreme RWD only
1982 Pontiac Bonneville All
1982 Pontiac Grand Prix All
1983 Buick Regal All
1983 Buick Regal Grand National All
1983 Chevrolet El Camino All
1983 Chevrolet Malibu All
1983 Chevrolet Monte Carlo All
1983 Chevrolet S10 Blazer 4 x 2
1983 Chevrolet S10 Pickup 4 x 2
1983 GMC S15 Jimmy 4 x 2
1983 GMC S15 Pickup 4 x 2
1983 Oldsmobile Cutlass Cruiser All
1983 Oldsmobile Cutlass Supreme RWD only
1983 Pontiac Bonneville All
1983 Pontiac Grand Prix All
1984 Buick Regal All
1984 Buick Regal Grand National All
1984 Chevrolet El Camino All
1984 Chevrolet Monte Carlo All
1984 Chevrolet S10 Blazer 4 x 2
1984 Chevrolet S10 Pickup 4 x 2
1984 GMC S15 Jimmy 4 x 2
1984 GMC S15 Pickup 4 x 2
1984 Oldsmobile Cutlass Supreme RWD only
1984 Pontiac Bonneville All
1984 Pontiac Grand Prix All
1985 Buick Regal All
1985 Buick Regal Grand National All
1985 Chevrolet El Camino All
1985 Chevrolet Monte Carlo All
1985 Chevrolet S10 Blazer 4 x 2
1985 Chevrolet S10 Pickup 4 x 2
1985 GMC S15 Jimmy 4 x 2
1985 GMC S15 Pickup 4 x 2
1985 Oldsmobile Cutlass Supreme RWD only
1985 Pontiac Bonneville All
1985 Pontiac Grand Prix All
1986 Buick Regal All
1986 Buick Regal Grand National All
1986 Chevrolet El Camino All
1986 Chevrolet Monte Carlo All
1986 Chevrolet S10 Blazer 4 x 2
1986 Chevrolet S10 Pickup 4 x 2
1986 GMC S15 Jimmy 4 x 2
1986 GMC S15 Pickup 4 x 2
1986 Oldsmobile Cutlass Supreme RWD only
1986 Pontiac Bonneville All
1986 Pontiac Grand Prix All
1987 Buick Regal All
1987 Buick Regal Grand National All
1987 Chevrolet El Camino All
1987 Chevrolet Monte Carlo All
1987 Chevrolet S10 Blazer 4 x 2
1987 Chevrolet S10 Pickup 4 x 2
1987 GMC S15 Jimmy 4 x 2
1987 GMC S15 Pickup 4 x 2
1987 Oldsmobile Cutlass Supreme RWD only
1987 Pontiac Bonneville All
1987 Pontiac Grand Prix All
1988 Chevrolet Monte Carlo All
1988 Chevrolet S10 Blazer 4 x 2
1988 Chevrolet S10 Pickup 4 x 2
1988 GMC S15 Jimmy 4 x 2
1988 GMC S15 Pickup 4 x 2
1988 Oldsmobile Cutlass Supreme RWD only
1989 Chevrolet S10 Blazer 4 x 2
1989 Chevrolet S10 Pickup 4 x 2
1989 GMC S15 Jimmy 4 x 2
1989 GMC S15 Pickup 4 x 2
1990 Chevrolet S10 Blazer 4 x 2
1990 Chevrolet S10 Pickup 4 x 2
1990 GMC S15 Jimmy 4 x 2
1990 GMC S15 Pickup 4 x 2
1991 Chevrolet S10 Blazer 4 x 2
1991 Chevrolet S10 Pickup 4 x 2
1991 GMC S15 Jimmy 4 x 2
1992 Chevrolet S10 Blazer 4 x 2
1992 Chevrolet S10 Pickup 4 x 2
1993 Chevrolet S10 Blazer 4 x 2
1993 Chevrolet S10 Pickup 4 x 2
1994 Chevrolet S10 Blazer 4 x 2
1994 Chevrolet S10 Pickup 4 x 2
1995 Chevrolet S10 Blazer 4 x 2
1995 Chevrolet S10 Pickup 4 x 2
1996 Chevrolet S10 Blazer 4 x 2
1996 Chevrolet S10 Pickup 4 x 2
1996 Isuzu Hombre 4 x 2
1997 Chevrolet S10 Blazer 4 x 2
1997 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear
1997 Isuzu Hombre 4 x 2
1998 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear
1998 Isuzu Hombre 4 x 2
1999 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear
1999 Isuzu Hombre 4 x 2
2000 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear
2000 Isuzu Hombre 4 x 2
2001 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear
2002 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear
