Wilwood 140-12099-BK D154 Front Brake Caliper Kit, Black Anodized

#83514012099BK

Wilwood 140-12099-BK D154 Front Brake Caliper Kit, Black Anodized

Name: Wilwood 140-12099-BK D154 Front Brake Caliper Kit, Black Anodized
Brand: Wilwood
SKU: 83514012099BK
Price: 501.07 USD
Availability: InStock

Write a Review

Ask a Question

Color:

Black

Red

$501.07

/each

Factory Shipped

$522.86

Save $21.79

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Two Caliper Pistons, Black, Wilwood Logo

See more details

Key Specs

Caliper Pistons	Two
Fitting Attachment 1	Banjo
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	Yes

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-12099-BK Details

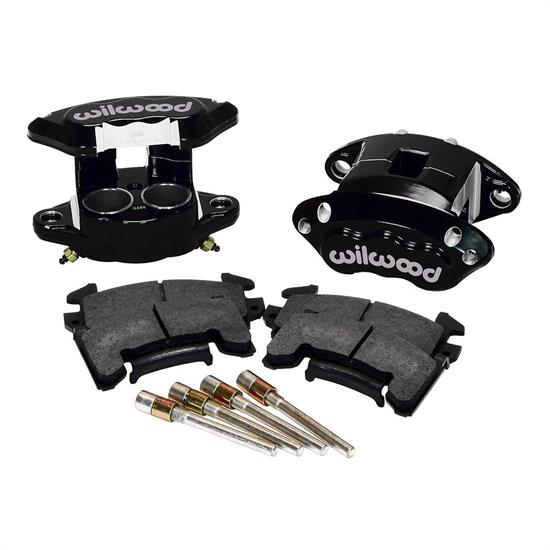

Wilwood's D154 Front Caliper Kit is a direct bolt-on 1 or 2 piston, lightweight, high-strength, extreme duty alternative to the OE cast iron "Metric" calipers that were used on a wide range of factory disc brake equipped mid size GM cars and small trucks beginning in 1978. Use of this caliper can still be found on some GM models as late as the year 2002. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D154 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D154 calipers mount in the stock location over stock rotors; use the original style OE D154 brake pads and an OE M10-1.5 banjo bolt brake line mounting. D154 Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.50" piston provide 4.90 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. The D154 is also available in a two piston version with 1.62 pistons, offering 4.12 square inches of area. Kits contain Wilwood's hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Custom stainless steel brake lines are also available.

Charts

Installation Instructions (PDF)

Guides & Documents

Brake Calipers Installation Instructions (83514012099BK)

Wilwood 140-12099-BK Specifications

KEY SPECS
MFG. Part #	140-12099-BK
Brand	Wilwood
Caliper Pistons	Two
Fitting Attachment 1	Banjo
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	Yes
Caliper Finish	Powder Coated
Material Type	Aluminum

GENERAL
Piston Diameter	1.62"
Caliper Material Type	Aluminum
Caliper Color	Black
Thread Size	M10 x 1.5
Bracket Included	No
Color	Black
Finish	Powder Coated
Total Piston Area	4.12 sq. in.
Pad Area	8.70 sq. in.
Pad Volume	2.90 cu. in.
Mount Type	Floating
Caliper Type	D154
Piston Type	Stainless
Brake Pad Compound	BP-10
Brake Pad Material	Semi-metallic
Position	Front
GTIN Code	889545015119
Notes	Fits models with 1.040 in. thick rotors.
Logo	Wilwood
