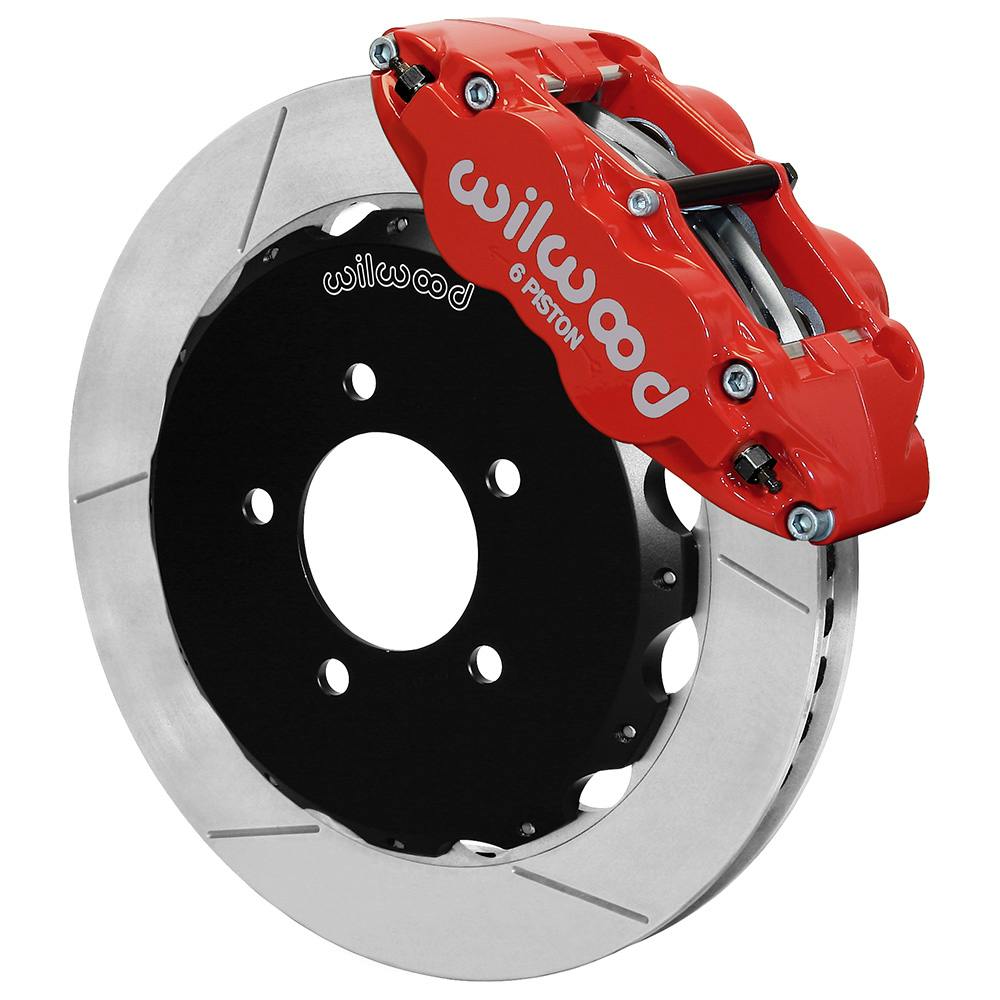

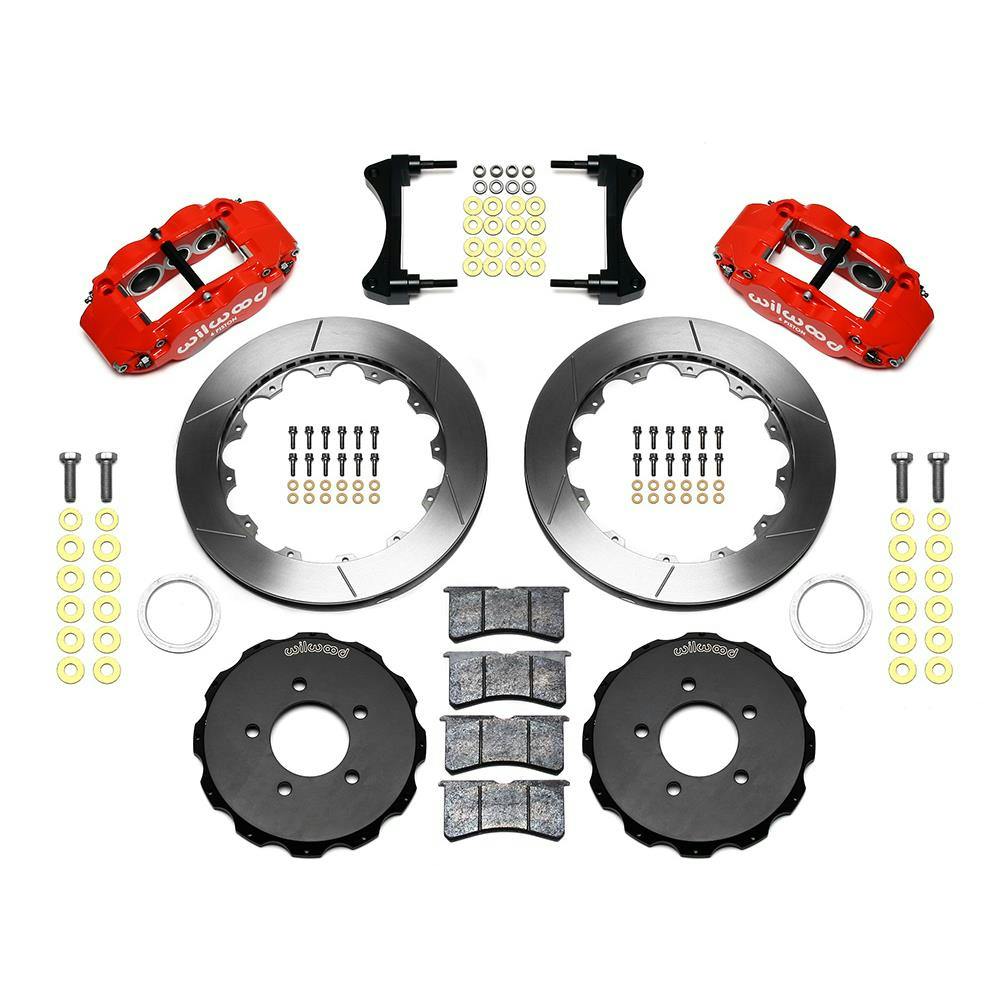

Wilwood 140-11978-R Forged Narrow Superlite Big Front Brake Kit

$182 Off

#83514011978R

Wilwood 140-11978-R Forged Narrow Superlite Big Front Brake Kit

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles
FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used

Rotor / Caliper Type:

Undrilled / Red

$2,216.93

/each

Factory Shipped

$2,399.00

Save $182.07

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.88 Inch Rotor Diameter, Red, Red

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles
FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used
Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines
Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application

See more details

Key Specs

MFG. Part #	140-11978-R
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Wheel Bolt Pattern (mm)	5x114.3 mm \| 5x120.65 mm
Rotor Diameter	12.88 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11978-R Details

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles
FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used
Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines
Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application

Application

2006 Honda Civic DX Coupe 1.8L (SOHC) DX / LX
2006 Honda Civic DX Sedan 1.8L (SOHC) DX / LX
2006 Honda Civic EX Coupe 1.8L (SOHC) EX
2006 Honda Civic EX Sedan 1.8L (SOHC) EX
2006 Honda Civic GX Sedan 1.8L (SOHC) GX
2006 Honda Civic Hybrid Sedan 1.3L (SOHC) Hybrid
2006 Honda Civic SI Coupe 2.0L (DOHC) SI
2007 Honda Civic DX Coupe 1.8L (SOHC) DX / LX
2007 Honda Civic DX Sedan 1.8L (SOHC) DX / LX
2007 Honda Civic EX Coupe 1.8L (SOHC) EX
2007 Honda Civic EX Sedan 1.8L (SOHC) EX
2007 Honda Civic GX Sedan 1.8L (SOHC) GX
2007 Honda Civic Hybrid Sedan 1.3L (SOHC) Hybrid
2007 Honda Civic SI Coupe 2.0L (DOHC) SI
2007 Honda Civic SI Sedan 2.0L (DOHC) SI
2008 Honda Civic DX Coupe 1.8L (SOHC) DX / LX
2008 Honda Civic DX Sedan 1.8L (SOHC) DX / LX
2008 Honda Civic EX Coupe 1.8L (SOHC) EX
2008 Honda Civic EX Sedan 1.8L (SOHC) EX
2008 Honda Civic GX Sedan 1.8L (SOHC) GX
2008 Honda Civic Hybrid Sedan 1.3L (SOHC) Hybrid
2008 Honda Civic SI Coupe 2.0L (DOHC) SI
2008 Honda Civic SI Sedan 2.0L (DOHC) SI
2009 Honda Civic DX Coupe 1.8L (SOHC) DX / LX
2009 Honda Civic DX Sedan 1.8L (SOHC) DX / LX
2009 Honda Civic EX Coupe 1.8L (SOHC) EX
2009 Honda Civic EX Sedan 1.8L (SOHC) EX
2009 Honda Civic GX Sedan 1.8L (SOHC) GX
2009 Honda Civic Hybrid Sedan 1.3L (SOHC) Hybrid
2009 Honda Civic SI Coupe 2.0L (DOHC) SI
2009 Honda Civic SI Sedan 2.0L (DOHC) SI
2010 Honda Civic DX Coupe 1.8L (SOHC) DX / LX
2010 Honda Civic DX Sedan 1.8L (SOHC) DX / LX
2010 Honda Civic EX Coupe 1.8L (SOHC) EX
2010 Honda Civic EX Sedan 1.8L (SOHC) EX
2010 Honda Civic GX Sedan 1.8L (SOHC) GX
2010 Honda Civic Hybrid Sedan 1.3L (SOHC) Hybrid
2010 Honda Civic SI Coupe 2.0L (DOHC) SI
2010 Honda Civic SI Sedan 2.0L (DOHC) SI
2011 Honda Civic DX Coupe 1.8L (SOHC) DX / LX
2011 Honda Civic DX Sedan 1.8L (SOHC) DX / LX
2011 Honda Civic EX Coupe 1.8L (SOHC) EX
2011 Honda Civic EX Sedan 1.8L (SOHC) EX
2011 Honda Civic GX Sedan 1.8L (SOHC) GX
2011 Honda Civic Hybrid Sedan 1.3L (SOHC) Hybrid
2011 Honda Civic SI Coupe 2.0L (DOHC) SI
2011 Honda Civic SI Sedan 2.0L (DOHC) SI
2011 Honda CR-Z All
2012 Honda Civic DX Coupe 1.8L (SOHC) DX / LX
2012 Honda Civic DX Sedan 1.8L (SOHC) DX / LX
2012 Honda Civic EX Coupe 1.8L (SOHC) EX
2012 Honda Civic EX Sedan 1.8L (SOHC) EX
2012 Honda Civic GX Sedan 1.8L (SOHC) GX
2012 Honda Civic Hybrid Sedan 1.3L (SOHC) Hybrid
2012 Honda Civic SI Coupe 2.0L (DOHC) SI
2012 Honda Civic SI Sedan 2.0L (DOHC) SI
2012 Honda CR-Z All

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011978R)

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Wilwood 140-11978-R Specifications

KEY SPECS
MFG. Part #	140-11978-R
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Wheel Bolt Pattern (mm)	5x114.3 mm \| 5x120.65 mm
Rotor Diameter	12.88 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	17 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.88 in./327.20mm
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No
Color	Red
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Piston Quantity	Six

GENERAL
Sold in Quantity	Kit
GTIN Code	889545014747
Rotor Thickness	1.1"
Stud Diameter	0.52"
Mount Type	Radial
Total Piston Area	3.46 sq. in.
Piston Type	Stainless
Pad Area	8.20 sq. in.
Pad Volume	3.8 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Natural
Rotor Material Type	Spec-37 Iron
Vane Count	48 Curved Vane
Bedded	No
Balanced	Yes
Hat Type	Big Brake Hat - Flared Bell
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	0.54"
Front Rotor Thickness	1.10"
Front Caliper Material	Forged Billet Aluminum
Front Caliper Color	Red
Brake Lines Included	No
Front Rotor Style	Slotted
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Front Rotor Construction	Vented
Hat Bolt Circle 1	5 x 4.50

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2006-2017 Honda Civic

2011-2015 Honda CR-Z
