Wilwood 140-11857-R D8-6 Front Caliper Kit, 65-82 Corvette C2/C3, Red

D8-6 Front calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Type III hard anodized forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-6 calipers provide low-maintenance performance, a huge weight savings, high temperature reliability, and the added benefit of six piston pad clamping power. D8-6 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most ’67 or newer production wheels. Some wheels, including the 1965-66 OE “JK” code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16” or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and high friction Promatrix brake pads.



Installation Instructions (PDF)

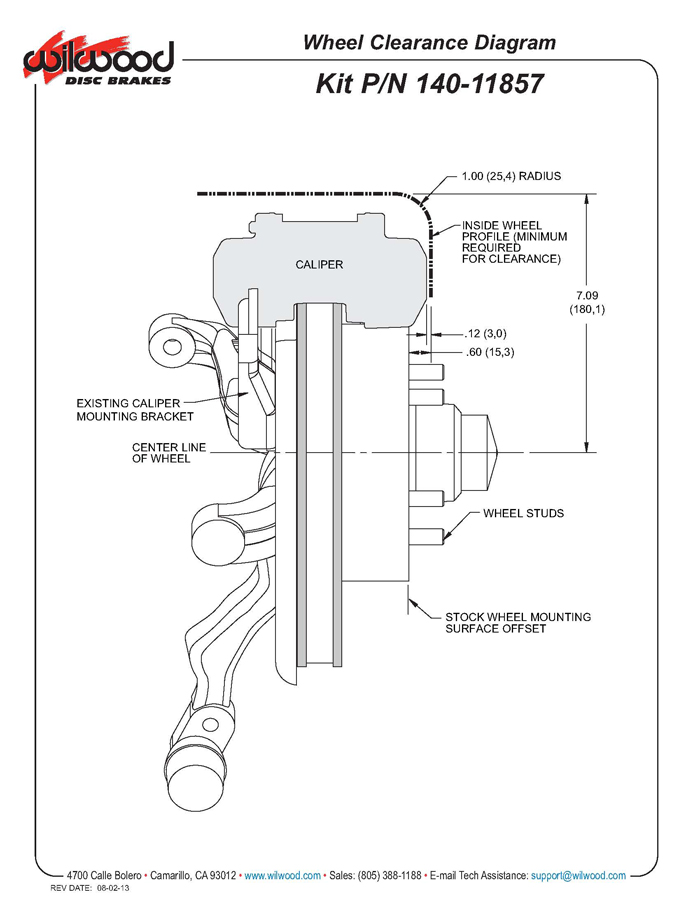

Wheel Clearance Diagram

1965 Chevrolet Corvette C-2
1966 Chevrolet Corvette C-2
1967 Chevrolet Corvette C-2
1968 Chevrolet Corvette C-3
1969 Chevrolet Corvette C-3
1970 Chevrolet Corvette C-3
1971 Chevrolet Corvette C-3
1972 Chevrolet Corvette C-3
1973 Chevrolet Corvette C-3
1974 Chevrolet Corvette C-3
1975 Chevrolet Corvette C-3
1976 Chevrolet Corvette C-3
1977 Chevrolet Corvette C-3
1978 Chevrolet Corvette C-3
1979 Chevrolet Corvette C-3
1980 Chevrolet Corvette C-3
1981 Chevrolet Corvette C-3
1982 Chevrolet Corvette C-3
