Wilwood 140-11857 D8-6 Front Caliper Kit, 65-82 Corvette C2/C3, Clear

-7%

#83514011857

Wilwood 140-11857 D8-6 Front Caliper Kit, 65-82 Corvette C2/C3, Clear

Name: Wilwood 140-11857 D8-6 Front Caliper Kit, 65-82 Corvette C2/C3, Clear
Brand: Wilwood
SKU: 83514011857
Price: 802.41 USD
Availability: InStock

Write a Review

Ask a Question

Color:

Anodize

Black Red

$802.41

/each

Factory Shipped

$868.31

Save $65.90

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

65-82 Chevy Corvette, Six Caliper Pistons, Gray

See more details

Key Specs

Caliper Pistons	Six
Parking Brake Provision	No
Fittings Included	Yes
Brake Pads Included	Yes
Caliper Finish	Type III Anodized

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11857 Details

D8-6 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-6 calipers provide low-maintenance performance, a huge weight savings, high temperature reliability, and the added benefit of six piston pad clamping power. D8-6 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most '67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16" or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound Smart Pads.

Application

1965 Chevrolet Corvette C-2
1966 Chevrolet Corvette C-2
1967 Chevrolet Corvette C-2
1968 Chevrolet Corvette C-3
1969 Chevrolet Corvette C-3
1970 Chevrolet Corvette C-3
1971 Chevrolet Corvette C-3
1972 Chevrolet Corvette C-3
1973 Chevrolet Corvette C-3
1974 Chevrolet Corvette C-3
1975 Chevrolet Corvette C-3
1976 Chevrolet Corvette C-3
1977 Chevrolet Corvette C-3
1978 Chevrolet Corvette C-3
1979 Chevrolet Corvette C-3
1980 Chevrolet Corvette C-3
1981 Chevrolet Corvette C-3
1982 Chevrolet Corvette C-3

Charts

Installation Instructions (PDF)

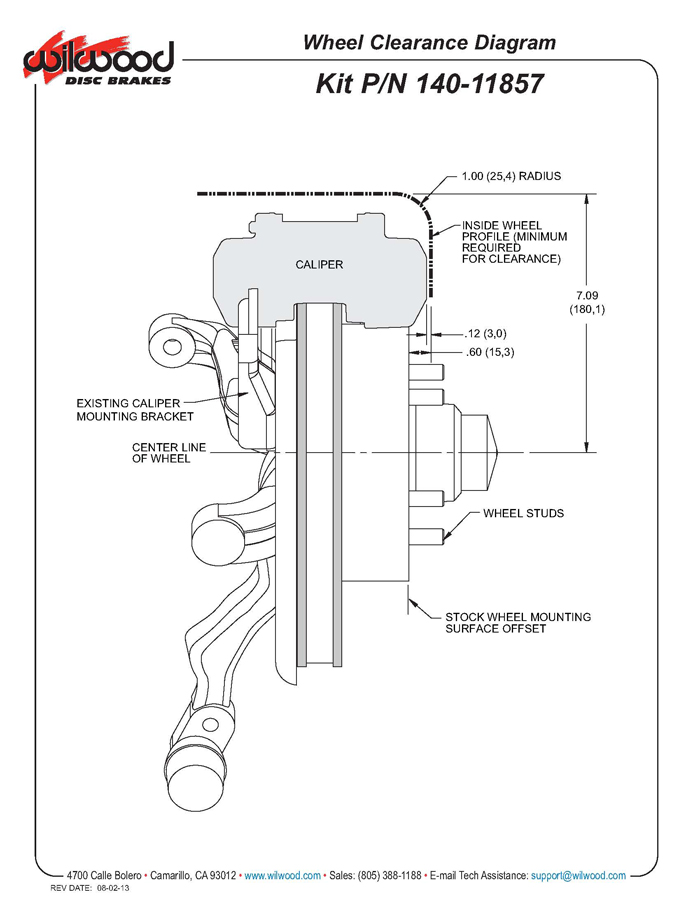

Wheel Clearance Diagram (JPG)

Guides & Documents

Brake Calipers Installation Instructions (83514011857)

Wilwood 140-11857 Specifications

KEY SPECS
MFG. Part #	140-11857
Brand	Wilwood
Caliper Pistons	Six
Parking Brake Provision	No
Fittings Included	Yes
Brake Pads Included	Yes
Caliper Finish	Type III Anodized
Material Type	Aluminum

GENERAL
Caliper Material Type	Aluminum
Caliper Color	Gray
Bracket Included	No
Color	Gray
Finish	Type III Anodized
Total Piston Area	5.51 sq. in.
Pad Volume	3.90 cu. in.
Spindle Type	Factory Disc Spindle
Mount Type	Lug
Caliper Type	D8-6
Piston Type	Stainless
Brake Pad Compound	BP-10
Brake Pad Material	Semi-metallic
Position	Front
GTIN Code	889545014228
Notes	Kit also includes stainless steel braided brake hoses.
Logo	Wilwood

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1965-1982 Chevy Corvette
