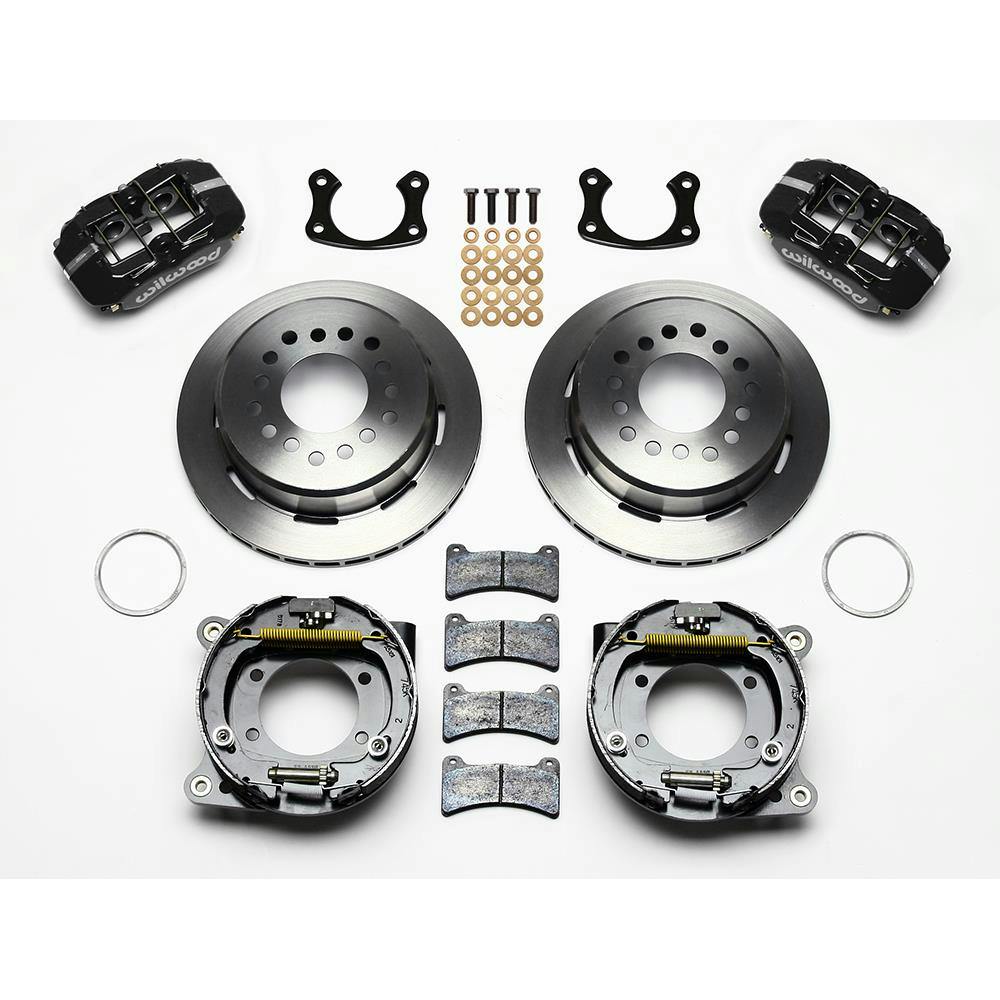

Wilwood 140-11389 FDLI LP Rear Brake Kit, New Big Ford 2.50 Off

$127 Off

Wilwood 140-11389 FDLI LP Rear Brake Kit, New Big Ford 2.50 Off
Wilwood

|

#83514011389

Wilwood 140-11389 FDLI LP Rear Brake Kit, New Big Ford 2.50 Off

  • 11" rotor is designed to clear 14"-up wheels
  • Features 4 piston calipers that are powder coated black for added style and corrosion protection
  • A neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
See More

Rotor / Caliper Type:

Undrilled

DrilledDrilled / RedUndrilled / Polished

$1,059.43

/each

In Stock

$1,186.56

Save $127.13


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Rear Position, 11 Inch Rotor Diameter

  • 11" rotor is designed to clear 14"-up wheels
  • Features 4 piston calipers that are powder coated black for added style and corrosion protection
  • A neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
  • High friction pads provide optimized and balanced braking for all types of custom applications
  • Discs come pre-drilled with the 5 on 4.5"/4.75"/5" multi bolt pattern
See more details

Key Specs

MFG. Part #140-11389
PositionRear
Rotor Diameter11 Inch
Rotor TypeVented
Caliper PistonsFour
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11389 Details

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00" to 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Charts

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Wilwood 140-11389 Specifications

KEY SPECS
MFG. Part #140-11389
BrandWilwood
PositionRear
Rotor Diameter11 Inch
Rotor TypeVented
Caliper PistonsFour
Caliper FinishPowder Coated
ColorBlack
Parking Brake ProvisionYes
Minimum Recommended Wheel Diameter14 Inch
Rotor ShapeRound
Hardware IncludedYes
Rotor StylePlain Face
Front Rotor IncludedNo
Front Rotor Diameter11 Inch
Front Caliper IncludedNo
Rear Caliper IncludedYes
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
Brake Hoses IncludedNo
Ford Bearing End StyleBig Ford New Style (Torino)
Rear Rotor IncludedYes
Bolt Pattern5 on 4.5" | 4.75"
Front Caliper Piston Quantity4
Front Caliper FinishAnodized
GENERAL
GTIN Code889545012859
Rotor Thickness0.81"
Axle Flange Offset2.50"
Mount TypeLug
Total Piston Area1.98 sq. in.
Piston TypeStainless
Pad Area5.1 sq. in.
Pad Volume1.71 cu. in.
Brake Pad CompoundBP-10
Caliper TypeLug
Rotor FinishPlain
Rotor Material TypeIron
Vane Count32 Straight Vane
BeddedNo
BalancedNo
Brake Lines IncludedNo
Caliper ColorBlack
Caliper Material TypeForged Aluminum
