Wilwood 140-11291 D52 Front Brake Caliper Kit, 2 In. Piston/1.04 Rotor

-7%

Wilwood 140-11291 D52 Front Brake Caliper Kit, 2 In. Piston/1.04 Rotor
Wilwood

|

#83514011291

Wilwood 140-11291 D52 Front Brake Caliper Kit, 2 In. Piston/1.04 Rotor

Color:

Anodize

BlackRed

$484.13

/each

In Stock

$522.86

Save $38.73

Order soon, only 3 left in stock!


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Buick, Cadillac, Chevy, GMC, Oldsmobile, Pontiac, Gray

    See more details

    Key Specs

    Caliper PistonsTwo
    Fitting Attachment 1Banjo
    Parking Brake ProvisionNo
    Fittings IncludedNo
    Brake Pads IncludedYes
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-11291 Details

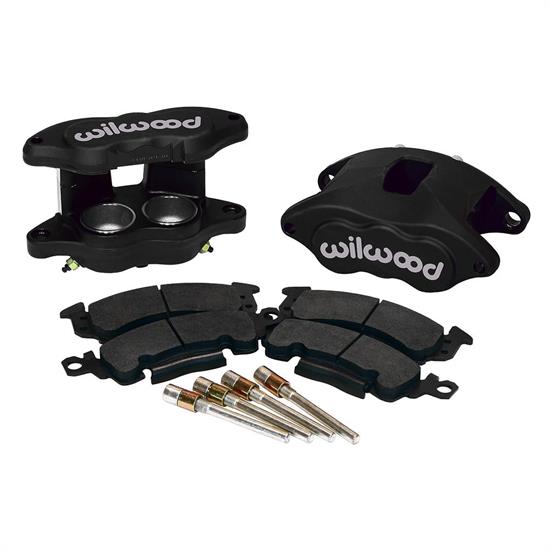

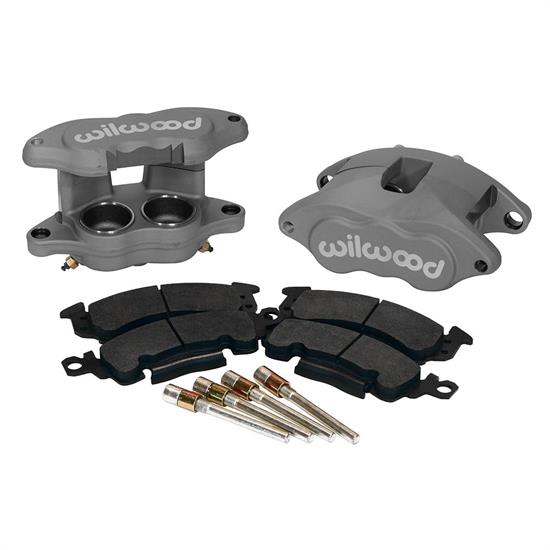

    Wilwood's D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00" piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood's hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new brake lines available below.

    Charts

    Wilwood 140-11291 Specifications

    KEY SPECS
    MFG. Part #140-11291
    BrandWilwood
    Caliper PistonsTwo
    Fitting Attachment 1Banjo
    Parking Brake ProvisionNo
    Fittings IncludedNo
    Brake Pads IncludedYes
    Caliper FinishType III Anodized
    Material TypeAluminum
    GENERAL
    Piston Diameter2.00"
    Caliper Material TypeAluminum
    Caliper ColorGray
    Thread Size7/16"-20
    Bracket IncludedNo
    Sold in QuantityKit
    Bore Size2"
    ColorGray
    Rotor Thickness1.04"
    FinishType III Anodized
    Total Piston Area6.28 sq. in.
    Pad Area10 sq. in.
    Pad Volume3.90 cu. in.
    Mount TypeFloating
    Caliper TypeD52
    Piston TypeStainless
    Brake Pad CompoundBP-10
    Brake Pad MaterialSemi-metallic
    PositionFront
    GTIN Code889545012538
    NotesPlease see the application chart under the Charts & Guide tab above. Fits GM vehicles from 1968-96 that have factory D52 single piston calipers and 1 in. thick rotors. Will not fit later models using Metric D154 calipers. The caliper inlet port is threaded for use with a 7/16-20 banjo bolt or a line adapter using crush washers as a seal. The OE rubber lines can be used from any vehicle equipped with a 7/16-20 banjo. For later model vehicles that were originally equipped with metric connections, a new line kit will be required.
    LogoWilwood

    Ratings & Reviews

    5

    3 Reviews

    Overall Assessment

    Customers praise the product's aesthetics and performance, highlighting its significant improvement to brake function, particularly in older vehicles. Users identify it as the best upgrade for brake systems, with top-notch practicality and usability. The superior material quality of the product stands out, affirming its reliability and safety. Compared to competitors, our product is frequently deemed unmatched, with numerous customers recommending it for its exceptional performance.

    Write A Review

    5

    3 reviews

    5

    3

    4

    0

    3

    0

    2

    0

    1

    0

    Filter by Ratings

    If only the worked with my drop spindles...

    5.0

    a year ago

    Chevydoc

    Cape May, NJ

    Verified

    Sadly had to return these. The spindle required a specific kit, so never installed these.

    Would Recommend

    Product worked graet

    5.0

    6 years ago

    Smokum

    Cottontown Tenn

    Verified

    Looks good and preformed great

    Would Recommend

    The best brake upgrade I ever did!

    5.0

    7 years ago

    Oscar

    Simi Valley, CA

    Verified

    Made my old '35 Ford hot rod brake performance match the rest of the car. Wilwood is the best.

    Would Recommend

    Showing 3 of 3 reviews

    Questions & Answers

    1 Question • 1 Answer

    Does this brake kit work with factory rotors, and if it does, will it improve stopping distance on a vehicle?

    by Camaro Craig

    • 8 years ago

    1 answer

    View Answer

    1 of 1 questions shown
