Wilwood 140-11291-BK D52 Front Caliper Kit, 2 In Piston, 1.04 In Rotor
Wilwood 140-11291-BK D52 Front Caliper Kit, 2 In Piston, 1.04 In Rotor
Wilwood

|

#83514011291BK

Wilwood 140-11291-BK D52 Front Caliper Kit, 2 In Piston, 1.04 In Rotor

  • Designed to be a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks
  • Features forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals
  • Engineered to overcome the rust, bore pitting, and seal failures that plague the OE caliper design
See More

Color:

Black

AnodizeRed

$501.07

/pair

In Stock

$522.86

Save $21.79


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Buick, Cadillac, Chevy, GMC, Oldsmobile, Pontiac, Black

  • Designed to be a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks
  • Features forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals
  • Engineered to overcome the rust, bore pitting, and seal failures that plague the OE caliper design
  • Provides low-maintenance performance and a huge weight savings with high temperature reliability for the street and track
  • Calipers can be used with most wheels that clear the OE calipers
See more details

Key Specs

Caliper PistonsTwo
Fitting Attachment 1Banjo
Parking Brake ProvisionNo
Fittings IncludedNo
Brake Pads IncludedYes
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11291-BK Details

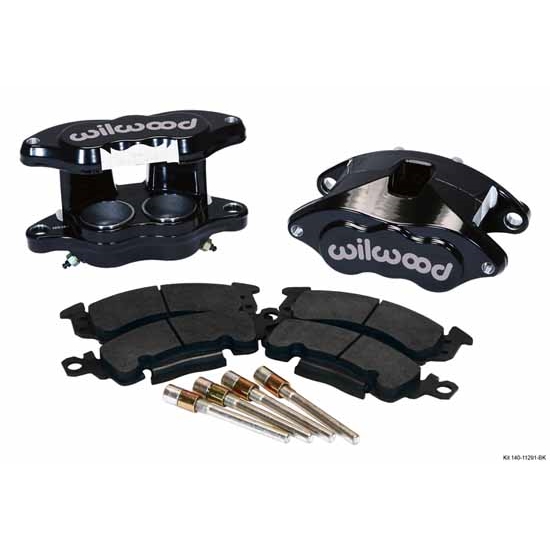

Wilwood's D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00" piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood's hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new brake lines available below.

Charts

Wilwood 140-11291-BK Specifications

KEY SPECS
MFG. Part #140-11291-BK
BrandWilwood
Caliper PistonsTwo
Fitting Attachment 1Banjo
Parking Brake ProvisionNo
Fittings IncludedNo
Brake Pads IncludedYes
Caliper FinishPowder Coated
Material TypeAluminum
GENERAL
Piston Diameter2.00"
Caliper Material TypeAluminum
Caliper ColorBlack
Thread Size7/16"-20
Bracket IncludedNo
Bore Size2"
ColorBlack
Rotor Thickness1.04"
FinishPowder Coated
Total Piston Area6.28 sq. in.
Pad Area10 sq. in.
Pad Volume3.90 cu. in.
Mount TypeFloating
Caliper TypeD52
Piston TypeStainless
Brake Pad CompoundBP-10
Brake Pad MaterialSemi-metallic
PositionFront
GTIN Code889545012545
NotesPlease see the application chart under the Charts & Guide tab above. Fits GM vehicles from 1968-96 that have factory D52 single piston calipers and 1 in. thick rotors. Will not fit later models using Metric D154 calipers. The caliper inlet port is threaded for use with a 7/16-20 banjo bolt or a line adapter using crush washers as a seal. The OE rubber lines can be used from any vehicle equipped with a 7/16-20 banjo. For later model vehicles that were originally equipped with metric connections, a new line kit will be required.
