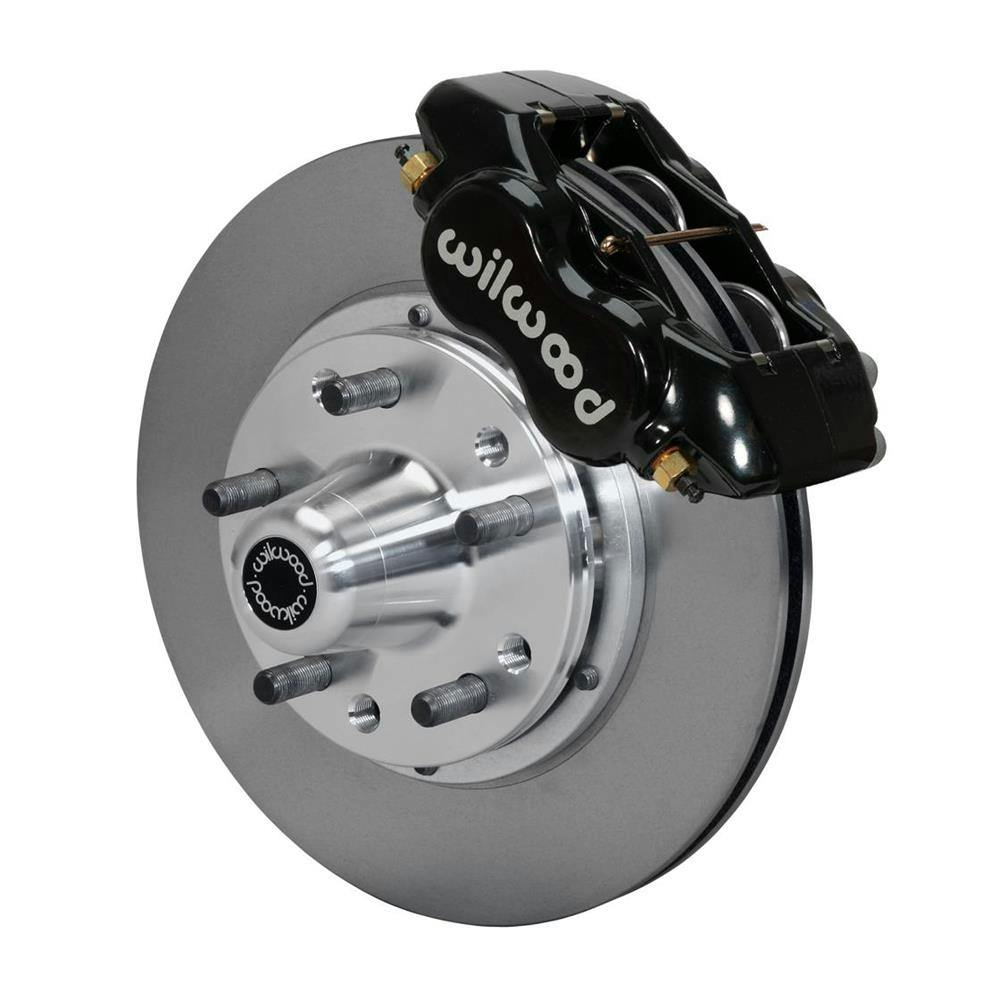

Wilwood 140-11022 Forged Dynalite Pro Series Front Brake Kit

-7%

#83514011022

Wilwood 140-11022 Forged Dynalite Pro Series Front Brake Kit

Wilwood's new limited offset FDL Pro-Series Front Hub Kits for Dodge & Plymouth 1962-1972 A-Body vehicles, offer disc brake upgrade solutions for OEM 9" inch drum brake spindles
We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position

Rotor / Caliper Type:

Undrilled

$1,125.68

/each

Factory Shipped

$1,218.13

Save $92.45

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11 Inch Rotor Diameter, Powder Coated

Wilwood's new limited offset FDL Pro-Series Front Hub Kits for Dodge & Plymouth 1962-1972 A-Body vehicles, offer disc brake upgrade solutions for OEM 9" inch drum brake spindles
We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position
Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast

See more details

Key Specs

MFG. Part #	140-11022
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Rotor Diameter	11 Inch
Rotor Type	Vented

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11022 Details

Wilwood's new limited offset FDL Pro-Series Front Hub Kits for Dodge & Plymouth 1962-1972 A-Body vehicles, offer disc brake upgrade solutions for OEM 9" inch drum brake spindles
We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position
This new kit narrows the track with by only -
08" from original Drum brake position
Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast
Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels
FDL Pro-Series kits can be used with either manual or power boost master cylinders
Kits come complete calipers, rotors, hub assembly, brackets and hardware
Requires purchase of additional brake lines shown below

Application

1960 Plymouth Valiant 9" Inch Drum Brake Spindle
1961 Dodge Lancer 9" Inch Drum Brake Spindle
1961 Plymouth Valiant 9" Inch Drum Brake Spindle
1962 Dodge Lancer 9" Inch Drum Brake Spindle
1962 Plymouth Valiant 9" Inch Drum Brake Spindle
1963 Dodge Dart 9" Inch Drum Brake Spindle
1963 Plymouth Valiant 9" Inch Drum Brake Spindle
1964 Dodge Dart 9" Inch Drum Brake Spindle
1964 Plymouth Barracuda 9" Inch Drum Brake Spindle
1964 Plymouth Valiant 9" Inch Drum Brake Spindle
1965 Dodge Dart 9" Inch Drum Brake Spindle
1965 Plymouth Barracuda 9" Inch Drum Brake Spindle
1965 Plymouth Valiant 9" Inch Drum Brake Spindle
1966 Dodge Dart 9" Inch Drum Brake Spindle
1966 Plymouth Barracuda 9" Inch Drum Brake Spindle
1966 Plymouth Valiant 9" Inch Drum Brake Spindle
1967 Dodge Dart 9" Inch Drum Brake Spindle
1967 Plymouth Barracuda 9" Inch Drum Brake Spindle
1967 Plymouth Valiant 9" Inch Drum Brake Spindle
1968 Dodge Dart 9" Inch Drum Brake Spindle
1968 Plymouth Barracuda 9" Inch Drum Brake Spindle
1968 Plymouth Valiant 9" Inch Drum Brake Spindle
1969 Dodge Dart 9" Inch Drum Brake Spindle
1969 Plymouth Barracuda 9" Inch Drum Brake Spindle
1969 Plymouth Valiant 9" Inch Drum Brake Spindle
1970 Dodge Dart 9" Inch Drum Brake Spindle
1970 Plymouth Duster 9" Inch Drum Brake Spindle
1970 Plymouth Valiant 9" Inch Drum Brake Spindle
1971 Dodge Dart 9" Inch Drum Brake Spindle
1971 Dodge Dart Demon 9" Inch Drum Brake Spindle
1971 Plymouth Duster 9" Inch Drum Brake Spindle
1971 Plymouth Valiant 9" Inch Drum Brake Spindle
1972 Dodge Dart 9" Inch Drum Brake Spindle
1972 Dodge Dart Demon 9" Inch Drum Brake Spindle
1972 Plymouth Duster 9" Inch Drum Brake Spindle
1972 Plymouth Valiant 9" Inch Drum Brake Spindle

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Everything You Need to Know About Converting Drum Brakes to Disc

Disc Brake Kits Installation Instructions (83514011022)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 140-11022 Specifications

KEY SPECS
MFG. Part #	140-11022
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Spindle Type	Factory Drum Spindle
Front Rotor Included	Yes
Front Rotor Diameter	11.00 in./279.40mm
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No
Color	Black
Front Caliper Piston Quantity	Four

GENERAL
Sold in Quantity	Kit
GTIN Code	889545012088
Notes	Includes 1/2 in.-20 wheel studs. Fits applications with factory 9 inch drum brake spindles. Wilwood hubs in this kit require a larger center hole in wheel than factory hub. Please verify that your wheel has a center hole at least 3.050 inch in diameter.
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Offset	0.08"
Mount Type	Lug
OE Hub Offset	-0.08"
Total Piston Area	4.80 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Natural
Rotor Material Type	Iron
Vane Count	30 Straight Vane
Bedded	No
Balanced	No
Front Rotor Thickness	.81"
Front Caliper Material	Forged Billet Aluminum
Front Caliper Color	Black
Brake Lines Included	No
Front Rotor Style	Solid
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Front Rotor Construction	Vented
Stud Diameter 2	1/2-20
