$147 Off

Wilwood 140-11022-D FDLI Pro Series Front Disc Brake Kit, 1960-72 Mopar

$147 Off

#83514011022D

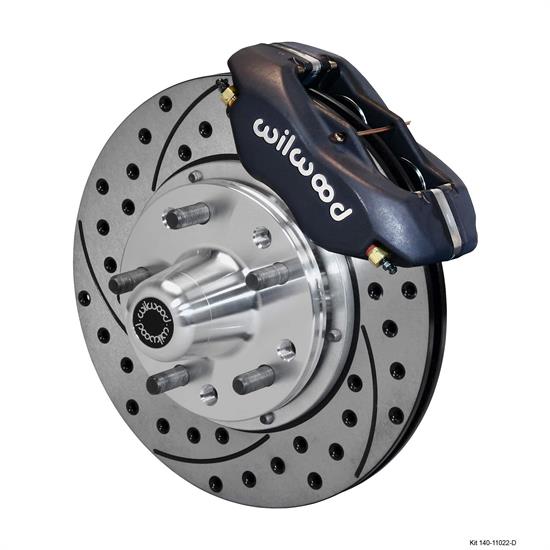

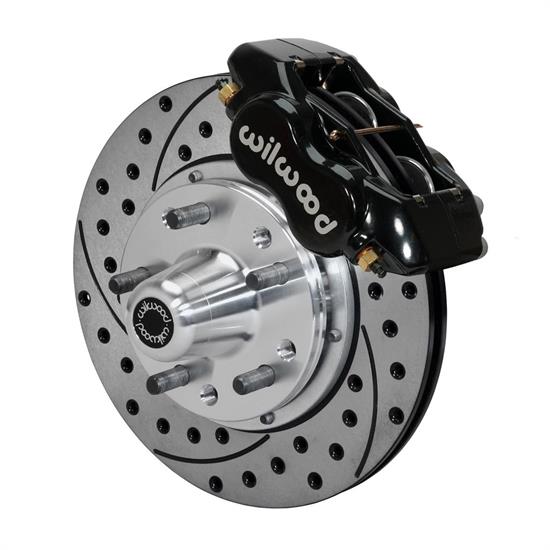

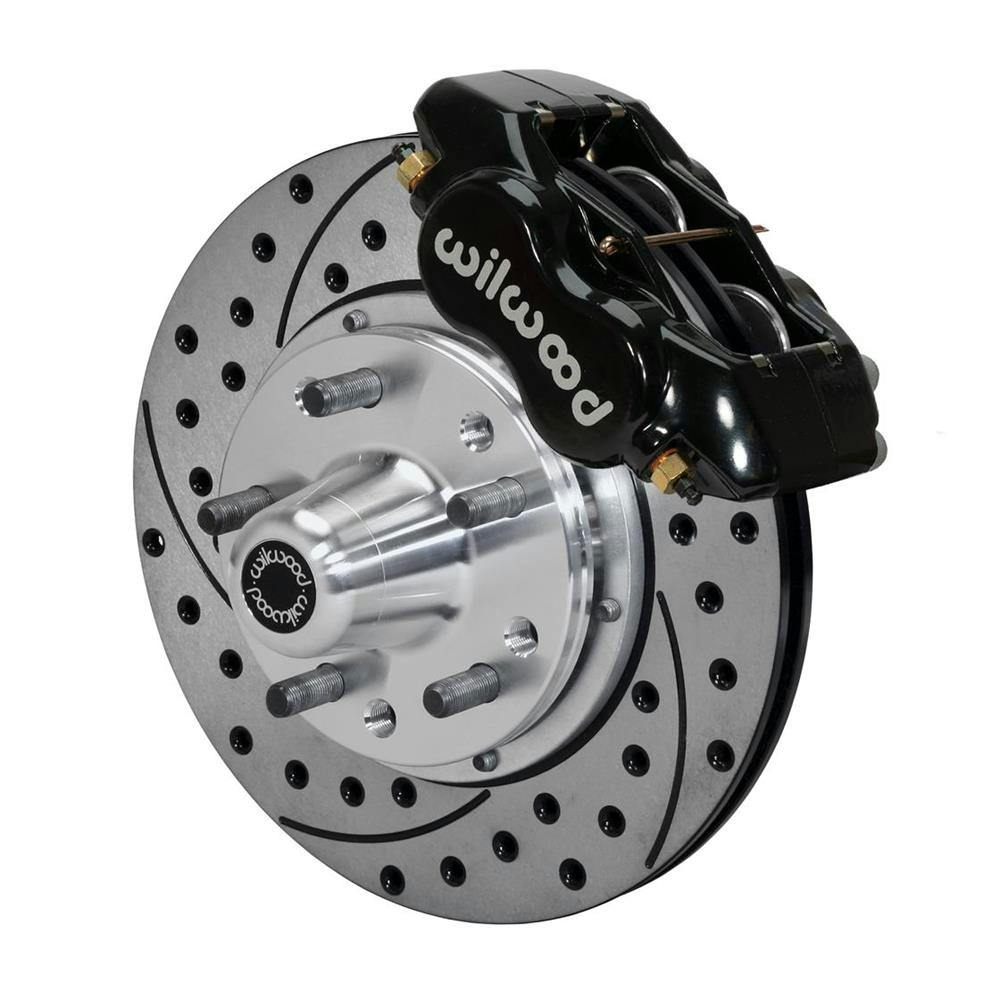

Wilwood 140-11022-D FDLI Pro Series Front Disc Brake Kit, 1960-72 Mopar

Name: Wilwood 140-11022-D FDLI Pro Series Front Disc Brake Kit, 1960-72 Mopar
Brand: Wilwood
SKU: 83514011022D
Price: 1225.11 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled

Undrilled Undrilled / Red

$1,225.11

/each

Factory Shipped

$1,372.13

Save $147.02

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-11022-D
Position	Front
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11022-D Details

Wilwood's new limited offset FDLI Pro-Series Front Hub Kits for Dodge & Plymouth 1962-1972 A-Body vehicles, offer disc brake upgrade solutions for OEM 9" inch drum brake spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit narrows the track with by only -.08" from original Drum brake position. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDLI Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete calipers, rotors, hub assembly, brackets and hardware. Requires purchase of additional brake lines shown below.

Application

1960 Plymouth Valiant 9" Inch Drum Brake Spindle
1961 Dodge Lancer 9" Inch Drum Brake Spindle
1961 Plymouth Valiant 9" Inch Drum Brake Spindle
1962 Dodge Lancer 9" Inch Drum Brake Spindle
1962 Plymouth Valiant 9" Inch Drum Brake Spindle
1963 Dodge Dart 9" Inch Drum Brake Spindle
1963 Plymouth Valiant 9" Inch Drum Brake Spindle
1964 Dodge Dart 9" Inch Drum Brake Spindle
1964 Plymouth Barracuda 9" Inch Drum Brake Spindle
1964 Plymouth Valiant 9" Inch Drum Brake Spindle
1965 Dodge Dart 9" Inch Drum Brake Spindle
1965 Plymouth Barracuda 9" Inch Drum Brake Spindle
1965 Plymouth Valiant 9" Inch Drum Brake Spindle
1966 Dodge Dart 9" Inch Drum Brake Spindle
1966 Plymouth Barracuda 9" Inch Drum Brake Spindle
1966 Plymouth Valiant 9" Inch Drum Brake Spindle
1967 Dodge Dart 9" Inch Drum Brake Spindle
1967 Plymouth Barracuda 9" Inch Drum Brake Spindle
1967 Plymouth Valiant 9" Inch Drum Brake Spindle
1968 Dodge Dart 9" Inch Drum Brake Spindle
1968 Plymouth Barracuda 9" Inch Drum Brake Spindle
1968 Plymouth Valiant 9" Inch Drum Brake Spindle
1969 Dodge Dart 9" Inch Drum Brake Spindle
1969 Plymouth Barracuda 9" Inch Drum Brake Spindle
1969 Plymouth Valiant 9" Inch Drum Brake Spindle
1970 Dodge Dart 9" Inch Drum Brake Spindle
1970 Plymouth Duster 9" Inch Drum Brake Spindle
1970 Plymouth Valiant 9" Inch Drum Brake Spindle
1971 Dodge Dart 9" Inch Drum Brake Spindle
1971 Dodge Dart Demon 9" Inch Drum Brake Spindle
1971 Plymouth Duster 9" Inch Drum Brake Spindle
1971 Plymouth Valiant 9" Inch Drum Brake Spindle
1972 Dodge Dart 9" Inch Drum Brake Spindle
1972 Dodge Dart Demon 9" Inch Drum Brake Spindle
1972 Plymouth Duster 9" Inch Drum Brake Spindle
1972 Plymouth Valiant 9" Inch Drum Brake Spindle

Charts

Installation Instructions (PDF)

Wheel Clearance Diagram (JPG)

Guides & Documents

Disc Brake Kits Installation Instructions (83514011022D)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-11022-D Specifications

KEY SPECS
MFG. Part #	140-11022-D
Brand	Wilwood
Position	Front
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Color	Black
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Drum Spindle
Front Rotor Included	Yes
Front Rotor Diameter	11 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Rear Rotor Included	No
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated
Bolt Pattern	5 on 4" \| 4.5"

GENERAL
GTIN Code	889545012095
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Mount Type	Lug
OE Hub Offset	-0.08"
Total Piston Area	4.80 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	30 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Stud Diameter 2	1/2-20

Ratings & Reviews

Be the first to write a review.

Fitment

1963-1972 Dodge Dart

1961-1962 Dodge Lancer

1964-1969 Plymouth Barracuda

1970-1972 Plymouth Duster

1960-1972 Plymouth Valiant
