$131 Off
$131 Off
|

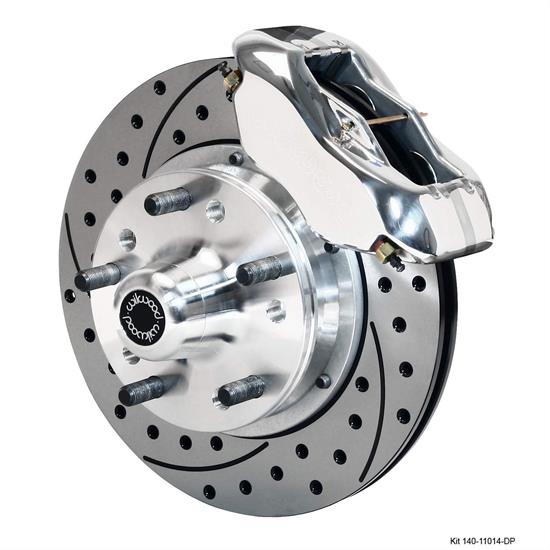

#83514011014DP
$1,589.61
/each
Factory Shipped
$1,720.17
Save $130.56
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 140-11014-DP |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm |
| Rotor Diameter | 11 Inch |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyApplication
Charts
Installation Instructions (PDF)
Wheel Clearance Diagram (JPG)
Specs
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-11014-DP |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm |
| Rotor Diameter | 11 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Polished |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 14 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Factory Drum Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 11 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Natural |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Polished |
| Application Type | 37-48 Ford Car Spindle |
| GENERAL | |
| GTIN Code | 889545011845 |
| Rotor Thickness | 0.81" |
| Stud Diameter | 1/2-20 |
| Front Suspension Type | Straight Axle |
| Mount Type | Lug |
| Total Piston Area | 4.12 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.1 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Iron |
| Vane Count | 30 Straight Vane |
| Bedded | No |
| Balanced | No |
| Brake Lines Included | No |
| Caliper Color | Polished |
| Caliper Material Type | Forged Aluminum |
| Stud Diameter 2 | 1/2-20 |
1 Question • 1 Answer
What's the difference between wilwood 140-11013-dp fdl and 11014-dp fdl? Thanks.
by Gary
• 8 years ago
1 answer
View Answer
1 of 1 questions shown
1937-1947 Ford 1 Ton Pickup
1937-1947 Ford 1/2 Ton Pickup
1937-1947 Ford 3/4 Ton Pickup
1939-1948 Ford Deluxe
1953-1954 Ford F-100
1948-1952 Ford F1
1948-1949 Ford F2
1948-1949 Ford F3
1948-1949 Ford F4
1949 Ford Ford
1941 Ford Model 1 GA Truck
1941 Ford Model 11 A
1942 Ford Model 2 GA Special
1942 Ford Model 21 A Deluxe
1937 Ford Model 74
1937 Ford Model 78
1938 Ford Model 81 A
1938 Ford Model 82 A
1938 Ford Model 85
1940 Ford Pickup
1937-1947 Ford Sedan Delivery
1939-1940 Ford Standard
1941-1948 Ford Super Deluxe
