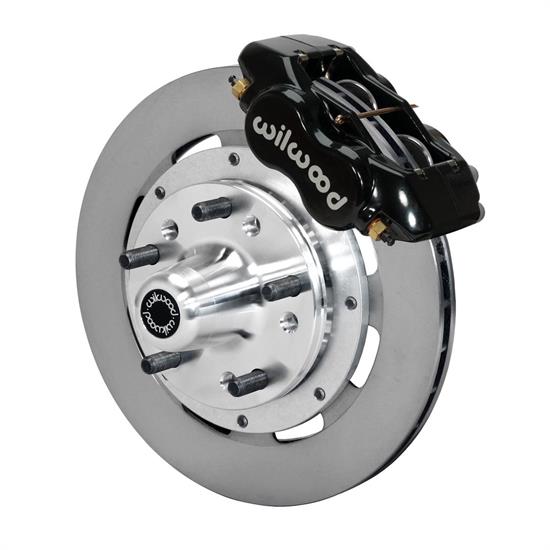

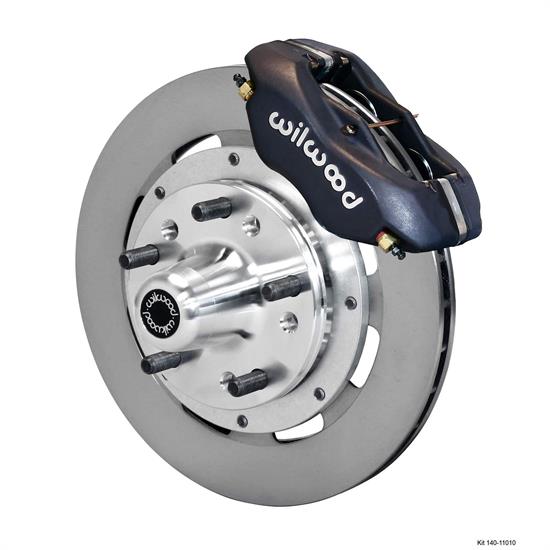

Wilwood 140-11010 FDLI Pro Series Front Disc Brake Kit, 1955-57 Chevy
Wilwood 140-11010 FDLI Pro Series Front Disc Brake Kit, 1955-57 Chevy

Wilwood 140-11010 FDLI Pro Series Front Disc Brake Kit, 1955-57 Chevy

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 11.75 Inch Rotor Diameter, Powder Coated

3 Reviews | 1 Answered Question
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-11010 FDLI Pro Series Front Disc Brake Kit, 1955-57 Chevy
Wilwood 140-11010 FDLI Pro Series Front Disc Brake Kit, 1955-57 Chevy
X
Zoomed In Image
Part # 83514011010
$827.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
11.75 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
MFG. Part #:
140-11010
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
.81"
Rotor Shape:
Round
Stud Diameter:
.50"
Thread Pitch:
1/2"-20
Hardware Included:
Yes
Sold in Quantity:
Kit
Notes:
Includes rotors, hubs, bearings and seals, calipers, caliper brackets, hardware, and pads.
Spindle Type:
Factory Drum Spindle
Mount Type:
Lug
OE Hub Offset:
0.30"
Total Piston Area:
4.80 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Plain Face
Caliper Type:
Forged Dynalite
Rotor Finish:
Natural
Rotor Material Type:
Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545011661

Info

This heavy duty Wilwood brake kit is just the ticket for your '55, '56 or '57 Chevy car. Features 4-piston billet Dynalite calipers, aluminum hubs, 11-3/4" vented rotors and required brackets and hardware. Calipers have 1/8" NPT inlet. Works with 15" and larger wheels.

Note: For stock 1955-1957 Chevy spindles ONLY - will not fit 2" drop aftermarket spindles.

835-14011010 Instructions (PDF)

Application

1955 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1955 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle
1956 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1956 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle
1957 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1957 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle

Notes

  1. If using steel wheels with this kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheelsfrom galling the aluminum hub.
  2. OEM rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Specs

  • OE Hub Offset:  +.30"  (Increase / Decrease Track Width)
  • Hub drilled for both 5x4-1/2" and 5x4-3/4" wheel bolt patterns
  • Rotor Diameter:  11.75"
  • Wheel Studs:  1/2"-20
Some parts are not legal for use in California or other states with similar laws/regulations
