$107 Off
$107 Off
|
#83514011010DR
$1,306.84
/each
Factory Shipped
$1,414.17
Save $107.33
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 140-11010-DR |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Rotor Diameter | 11.75 Inch |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyApplication
Charts
Installation Instructions (PDF)

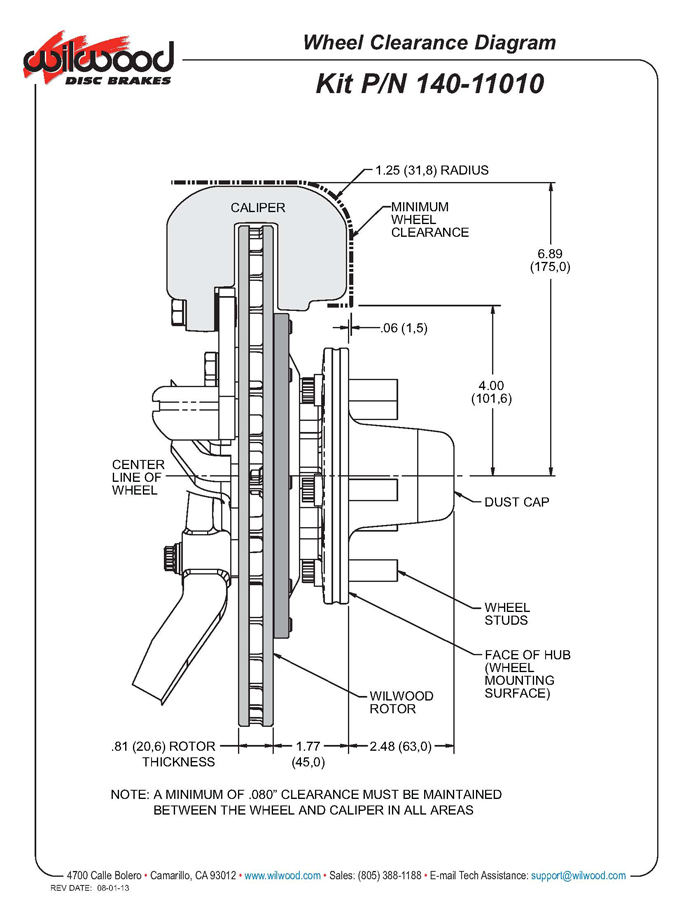

Wheel Clearance Diagram (JPG)
Specs
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-11010-DR |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Rotor Diameter | 11.75 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Factory Drum Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 11.75 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Red |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545011685 |
| Rotor Thickness | 0.81" |
| Stud Diameter | 1/2-20 |
| Front Suspension Type | IFS |
| Mount Type | Lug |
| OE Hub Offset | 0.3" |
| Total Piston Area | 4.80 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.1 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Iron |
| Vane Count | 32 Straight Vane |
| Bedded | No |
| Balanced | No |
| Brake Lines Included | No |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
| Stud Diameter 2 | 1/2-20 |
Be the first to ask a question.
1955-1957 Chevy Bel Air
1957 Chevy Del Ray
1955-1957 Chevy Nomad
1955-1957 Chevy One-Fifty Series
1955-1957 Chevy Sedan Delivery
1955-1957 Chevy Two-Ten Series
