-7%
-7%
|
#83514010996R
$1,094.29
/each
Factory Shipped
$1,184.16
Save $89.87
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle

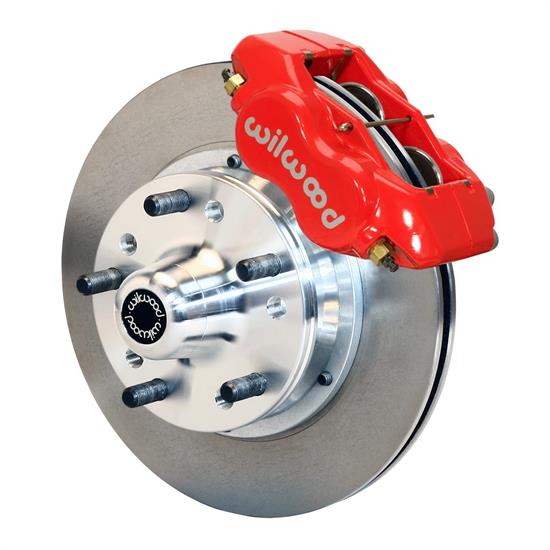

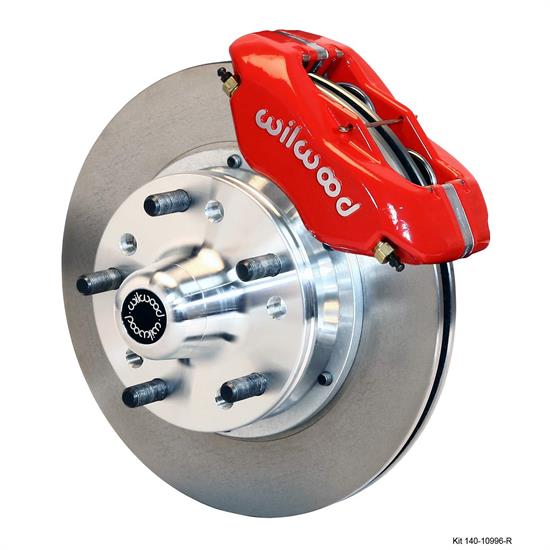

| MFG. Part # | 140-10996-R |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 11 Inch |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyApplication
Charts
Installation Instructions (PDF)
Wheel Clearance Diagram (JPG)
Specs
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-10996-R |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 11 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 14 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Plain Face |
| Spindle Type | Factory Drum, Factory Disc & Drop Spindles |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 11 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Red |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545011517 |
| Rotor Thickness | 0.81" |
| Stud Diameter | 1/2-20 |
| Mount Type | Lug |
| OE Hub Offset | 0.19" |
| Total Piston Area | 4.80 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.1 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Natural |
| Rotor Material Type | Iron |
| Vane Count | 30 Straight Vane |
| Bedded | No |
| Balanced | No |
| Brake Lines Included | No |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
| Stud Diameter 2 | 1/2-20 |
1 Question • 1 Answer
Will this disk brake kit fit the g-comp 2 inch drop spindles ?
by Barry
• 9 years ago
1 answer
View Answer
1 of 1 questions shown
1973-1974 Buick Apollo
1965-1967 Buick Gran Sport
1964-1972 Buick Skylark
1964-1969 Buick Special
1964-1972 Buick Sportwagon
1967-1969 Chevy Camaro
1964-1972 Chevy Chevelle
1964-1968 Chevy Chevy II
1964-1972 Chevy El Camino
1970-1972 Chevy Monte Carlo
1969-1974 Chevy Nova
1971-1972 GMC Sprint
1967-1971 Oldsmobile 442
1964-1972 Oldsmobile Cutlass
1964-1972 Oldsmobile F85
1973-1974 Oldsmobile Omega
1964-1972 Oldsmobile Vista Cruiser
1967-1969 Pontiac Firebird
1969-1972 Pontiac Grand Prix
1964-1972 Pontiac GTO
1964-1972 Pontiac LeMans
1964-1970 Pontiac Tempest
1971-1974 Pontiac Ventura
