$777.49

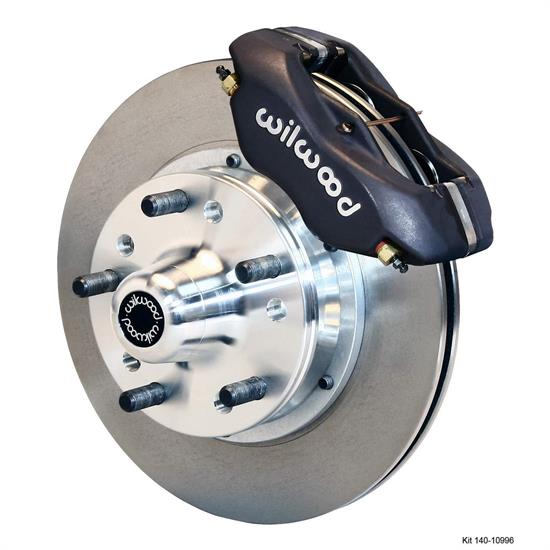

Wilwood 140-10996 FDLI Pro Series 11 In Front Disc Brake Kit, 64-74 GM
Wilwood 140-10996 FDLI Pro Series 11 In Front Disc Brake Kit, 64-74 GM
Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 11 Inch Rotor Diameter, Vented Rotor Type
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 140-10996 FDLI Pro Series 11 In Front Disc Brake Kit, 64-74 GM
X
Part # 83514010996
$777.49
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Comes with Wilwood BP-10 SmartPads that are low noise, low dust
- Engineered to provide plenty of clearance inside popular 15" wheels
- The 11.00" diameter Ultralite HP 30 Vane rotors have a plain finish
- Kit includes forged 4-piston Dynalite calipers with a black finish for added protection
- This kit is specifically designed to fit the GM 1967-1969 F-Body and 1964-1974 A-Body vehicles
Details
Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
No
MFG. Part #:
140-10996
Minimum Recommended Wheel Diameter:
14 Inch
Rotor Thickness:
.81"
Rotor Shape:
Round
Stud Diameter:
.50"
Thread Pitch:
1/2"-20
Hardware Included:
Yes
Sold in Quantity:
Kit
Notes:
Includes rotors, hubs, bearings and seals, calipers, caliper brackets, hardware, and pads.
Spindle Type:
Factory Disc & Drum Spindles
Mount Type:
Lug
OE Hub Offset:
0.18"
Total Piston Area:
4.80 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Plain Face
Caliper Type:
Forged Dynalite
Rotor Finish:
Natural
Rotor Material Type:
Iron
Vane Count:
30 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545011487
Front Rotor Included:
Yes
Front Rotor Diameter:
11 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
4
Front Caliper Finish:
Powder Coated Black
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Info
Wilwood's new limited offset FDL Pro-Series Front Hub Kits for GM 1967-1969 F-Body and 1964-1974 A-Body vehicles offer disc brake upgrade solutions for both OEM Disc & Drum spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position.
This new kit widens the track by only +.19" from original drum brake position or narrows by -.31" from the original disc brake rotor assembly. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels.
FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Installation requires purchase of additional brake lines shown below.
11.00" Pro Series Brakes feature:
- Forged 4-piston Dynalite Calipers - black finish
- 11.00" diameter Ultralite HP 30 Vane rotors - plain finish
- Wilwood BP-10 SmartPads - low noise, low dust
- Lightweight anodized aluminum Pro Street hubs
- Provides plenty of clearance inside popular 15” wheels
All kits include calipers, hubs, rotors, brackets and hardware needed. Brake hoses sold separately.
Application
1964 Buick Skylark All1964 Buick Special All
1964 Buick Sportwagon All
1964 Chevrolet Chevelle All
1964 Chevrolet Chevy II All
1964 Chevrolet El Camino All
1964 Oldsmobile Cutlass All
1964 Oldsmobile F85 All
1964 Oldsmobile Vista Cruiser All
1964 Pontiac GTO All
1964 Pontiac LeMans All
1964 Pontiac Tempest All
1965 Buick Gran Sport All
1965 Buick Skylark All
1965 Buick Special All
1965 Buick Sportwagon All
1965 Chevrolet Chevelle Drum Brake Spindle
1965 Chevrolet Chevy II Drum Brake Spindle
1965 Chevrolet El Camino Drum Brake Spindle
1965 Oldsmobile Cutlass All
1965 Oldsmobile F85 All
1965 Oldsmobile Vista Cruiser All
1965 Pontiac GTO All
1965 Pontiac LeMans All
1965 Pontiac Tempest All
1966 Buick Gran Sport All
1966 Buick Skylark All
1966 Buick Special All
1966 Buick Sportwagon All
1966 Chevrolet Chevelle Drum Brake Spindle
1966 Chevrolet Chevy II Drum Brake Front
1966 Chevrolet El Camino Drum Brake Spindle
1966 Oldsmobile Cutlass All
1966 Oldsmobile F85 All
1966 Oldsmobile Vista Cruiser All
1966 Pontiac GTO All
1966 Pontiac LeMans All
1966 Pontiac Tempest All
1967 Buick Gran Sport Disc Brake Spindle
1967 Buick Gran Sport Drum Brake Front
1967 Buick Skylark Disc Brake Spindle
1967 Buick Skylark Drum Brake Spindle
1967 Buick Special Disc Brake Spindle
1967 Buick Special Drum Brake Spindle
1967 Buick Sportwagon Disc Brake Spindle
1967 Buick Sportwagon Drum Brake Front
1967 Chevrolet Camaro Disc Brake Spindle
1967 Chevrolet Camaro Drum Brake Front
1967 Chevrolet Chevelle Disc Brake Spindle
1967 Chevrolet Chevelle Drum Brake Front
1967 Chevrolet Chevy II Disc Brake Spindle
1967 Chevrolet Chevy II Drum Brake Front
1967 Chevrolet El Camino Disc Brake Spindle
1967 Chevrolet El Camino Drum Brake Spindle
1967 Oldsmobile 442 Disc Brake Spindle
1967 Oldsmobile Cutlass Disc Brake Spindle
1967 Oldsmobile Cutlass Drum Brake Spindle
1967 Oldsmobile F85 Disc Brake Spindle
1967 Oldsmobile F85 Drum Brake Spindle
1967 Oldsmobile Vista Cruiser Disc Brake Spindle
1967 Oldsmobile Vista Cruiser Drum Brake Spindle
1967 Pontiac Firebird Disc Brake Spindle
1967 Pontiac Firebird Drum Brake Spindle
1967 Pontiac GTO Disc Brake Spindle
1967 Pontiac GTO Drum Brake Spindle
1967 Pontiac LeMans Disc Brake Spindle
1967 Pontiac LeMans Drum Brake Spindle
1967 Pontiac Tempest Disc Brake Spindle
1967 Pontiac Tempest Drum Brake Spindle
1968 Buick Skylark Disc Brake Spindle
1968 Buick Skylark Drum Brake Spindle
1968 Buick Special Disc Brake Spindle
1968 Buick Special Drum Brake Spindle
1968 Buick Sportwagon Disc Brake Spindle
1968 Buick Sportwagon Drum Brake Front
1968 Chevrolet Camaro Disc Brake Spindle
1968 Chevrolet Camaro Drum Brake Front
1968 Chevrolet Camaro Z/28 w/ 4 Wheel Disc
1968 Chevrolet Chevelle Disc Brake Spindle
1968 Chevrolet Chevelle Drum Brake Front
1968 Chevrolet Chevy II Disc Brake Spindle
1968 Chevrolet Chevy II Drum Brake Front
1968 Chevrolet El Camino Disc Brake Spindle
1968 Chevrolet El Camino Drum Brake Spindle
1968 Oldsmobile 442 Disc Brake Spindle
1968 Oldsmobile Cutlass Disc Brake Spindle
1968 Oldsmobile Cutlass Drum Brake Spindle
1968 Oldsmobile F85 Disc Brake Spindle
1968 Oldsmobile F85 Drum Brake Spindle
1968 Oldsmobile Vista Cruiser Disc Brake Spindle
1968 Oldsmobile Vista Cruiser Drum Brake Spindle
1968 Pontiac Firebird Disc Brake Spindle
1968 Pontiac Firebird Drum Brake Spindle
1968 Pontiac GTO Disc Brake Spindle
1968 Pontiac GTO Drum Brake Spindle
1968 Pontiac LeMans Disc Brake Spindle
1968 Pontiac LeMans Drum Brake Spindle
1968 Pontiac Tempest Disc Brake Spindle
1968 Pontiac Tempest Drum Brake Spindle
1969 Buick Skylark Disc Brake Spindle
1969 Buick Skylark Drum Brake Spindle
1969 Buick Special Disc Brake Spindle
1969 Buick Special Drum Brake Spindle
1969 Buick Sportwagon Disc Brake Spindle
1969 Buick Sportwagon Drum Brake Front
1969 Chevrolet Camaro Disc Brake Spindle
1969 Chevrolet Camaro Drum Brake Front
1969 Chevrolet Camaro Z/28 w/ 4 Wheel Disc
1969 Chevrolet Chevelle Disc Brake Spindle
1969 Chevrolet Chevelle Drum Brake Front
1969 Chevrolet El Camino Disc Brake Spindle
1969 Chevrolet El Camino Drum Brake Spindle
1969 Chevrolet Nova Disc Brake Spindle
1969 Chevrolet Nova Drum Brake Front
1969 Oldsmobile 442 Disc Brake Spindle
1969 Oldsmobile Cutlass Disc Brake Spindle
1969 Oldsmobile Cutlass Drum Brake Spindle
1969 Oldsmobile F85 Disc Brake Spindle
1969 Oldsmobile F85 Drum Brake Spindle
1969 Oldsmobile Vista Cruiser Disc Brake Spindle
1969 Oldsmobile Vista Cruiser Drum Brake Spindle
1969 Pontiac Firebird Disc Brake Spindle
1969 Pontiac Firebird Drum Brake Spindle
1969 Pontiac Grand Prix Disc Brake Spindle
1969 Pontiac Grand Prix Drum Brake Spindle
1969 Pontiac GTO Disc Brake Spindle
1969 Pontiac GTO Drum Brake Spindle
1969 Pontiac LeMans Disc Brake Spindle
1969 Pontiac LeMans Drum Brake Spindle
1969 Pontiac Tempest Disc Brake Spindle
1969 Pontiac Tempest Drum Brake Spindle
1970 Buick Skylark Disc Brake Spindle
1970 Buick Skylark Drum Brake Spindle
1970 Buick Sportwagon Disc Brake Spindle
1970 Buick Sportwagon Drum Brake Front
1970 Chevrolet Chevelle Disc Brake Spindle
1970 Chevrolet Chevelle Drum Brake Front
1970 Chevrolet El Camino Disc Brake Spindle
1970 Chevrolet El Camino Drum Brake Spindle
1970 Chevrolet Monte Carlo Disc Brake Spindle
1970 Chevrolet Nova Disc Brake Spindle
1970 Chevrolet Nova Drum Brake Front
1970 Oldsmobile 442 Disc Brake Spindle
1970 Oldsmobile 442 w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile Cutlass Disc Brake Spindle
1970 Oldsmobile Cutlass Drum Brake Spindle
1970 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile F85 Disc Brake Spindle
1970 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1970 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile Vista Cruiser Disc Brake Spindle
1970 Oldsmobile Vista Cruiser Drum Brake Spindle
1970 Pontiac Grand Prix Disc Brake Spindle
1970 Pontiac GTO Disc Brake Spindle
1970 Pontiac GTO Drum Brake Spindle
1970 Pontiac LeMans Disc Brake Spindle
1970 Pontiac LeMans Drum Brake Spindle
1970 Pontiac Tempest Disc Brake Spindle
1970 Pontiac Tempest Drum Brake Spindle
1971 Buick Skylark Disc Brake Spindle
1971 Buick Sportwagon Disc Brake Spindle
1971 Chevrolet Chevelle Disc Brake Spindle
1971 Chevrolet Chevelle Drum Brake Front
1971 Chevrolet El Camino Disc Brake Spindle
1971 Chevrolet El Camino Drum Brake Spindle
1971 Chevrolet Monte Carlo Disc Brake Spindle
1971 Chevrolet Nova Disc Brake Spindle
1971 Chevrolet Nova Drum Brake Front
1971 GMC Sprint Disc Brake Spindle
1971 GMC Sprint Drum Brake Spindle
1971 Oldsmobile 442 Disc Brake Spindle
1971 Oldsmobile 442 w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile Cutlass Disc Brake Spindle
1971 Oldsmobile Cutlass Drum Brake Spindle
1971 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile F85 Disc Brake Spindle
1971 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1971 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile Vista Cruiser Disc Brake Spindle
1971 Oldsmobile Vista Cruiser Drum Brake Spindle
1971 Pontiac Grand Prix Disc Brake Spindle
1971 Pontiac GTO Disc Brake Spindle
1971 Pontiac GTO Drum Brake Spindle
1971 Pontiac LeMans Disc Brake Spindle
1971 Pontiac LeMans Drum Brake Spindle
1971 Pontiac Ventura II Disc Brake Spindle
1971 Pontiac Ventura II Drum Brake Front
1972 Buick Skylark Disc Brake Spindle
1972 Buick Sportwagon Disc Brake Spindle
1972 Chevrolet Chevelle Disc Brake Spindle
1972 Chevrolet Chevelle Drum Brake Front
1972 Chevrolet El Camino Disc Brake Spindle
1972 Chevrolet El Camino Drum Brake Spindle
1972 Chevrolet Monte Carlo Disc Brake Spindle
1972 Chevrolet Nova Disc Brake Spindle
1972 Chevrolet Nova Drum Brake Front
1972 GMC Sprint Disc Brake Spindle
1972 GMC Sprint Drum Brake Spindle
1972 Oldsmobile Cutlass Disc Brake Spindle
1972 Oldsmobile Cutlass Drum Brake Spindle
1972 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1972 Oldsmobile F85 Disc Brake Spindle
1972 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1972 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1972 Oldsmobile Vista Cruiser Disc Brake Spindle
1972 Oldsmobile Vista Cruiser Drum Brake Spindle
1972 Pontiac Grand Prix Disc Brake Spindle
1972 Pontiac GTO Disc Brake Spindle
1972 Pontiac LeMans Disc Brake Spindle
1972 Pontiac LeMans Drum Brake Spindle
1972 Pontiac Ventura II Disc Brake Spindle
1972 Pontiac Ventura II Drum Brake Front
1973 Buick Apollo Disc Brake Spindle
1973 Buick Apollo Drum Brake Front
1973 Chevrolet Nova Disc Brake Spindle
1973 Chevrolet Nova Drum Brake Front
1973 Oldsmobile Omega Disc Brake Spindle
1973 Oldsmobile Omega Drum Brake Front
1973 Pontiac Ventura II Disc Brake Spindle
1973 Pontiac Ventura II Drum Brake Front
1974 Buick Apollo Disc Brake Spindle
1974 Buick Apollo Drum Brake Front
1974 Chevrolet Nova Disc Brake Spindle
1974 Chevrolet Nova Drum Brake Front
1974 Oldsmobile Omega Disc Brake Spindle
1974 Oldsmobile Omega Drum Brake Front
1974 Pontiac Ventura II Disc Brake Spindle
1974 Pontiac Ventura II Drum Brake Front
Notes
- OEM rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.
- Kit fits some 14" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Specs
Wilwood Kit Information (all kits):
- OE Hub Offset: +.18"
- Spindle Type: Disc
- Piston Area (Inches Squared): 4.8"
- Piston Type: Stainless
- Brake Pad Area (Inches Squared): 6.36"
- Brake Pad Volume (Inches Cubed): 2.1"
- Rotor Material: Iron
- Rotor Width: .81"
- Wheel Stud Diameter - 1/2"-20
Charts
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
Related Products
-
AFCO 1340CT Pro Touring Fixed Valve Coil-Over Shock, 4 Inch Stroke$199.99 -
AFCO 28400-1CR 8 Inch Extreme Chrome Coil-Over Spring, 400 Rate$59.99
More Like This
-
Wilwood 140-7675 FDLI 12.19 Inch Front Disc Brake Kit, 1964-74 GM$827.49
-
Wilwood 140-10996-D FDLI Pro Series 11 Front Disc Brake Kit, 64-74 GM$877.49
-
Wilwood 140-10996-DR FDLI Pro Series 11 Front Disc Brake Kit, 64-74 GM$877.49
-
Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM$954.99
-
Wilwood 140-13202-R DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM$854.99
-
Wilwood 140-10996-R FDLI Pro Series 11 Front Disc Brake Kit, 64-74 GM$777.49
-
Wilwood 140-13202-D DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM$954.99
-
Wilwood 140-12271 FNSL6R Pro Series Front Disc Brake Kit, 1964-74 GM$1,199.99
-
Wilwood 140-12271-D FNSL6R Pro Series Front Disc Brake Kit, 1964-74 GM$1,299.99
-
Wilwood 140-13203 DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM$904.99
Reviews
Q & A
Videos & Articles
-
Step by Step guide to installing a G-Comp front suspension on your Nova.
-
Today on our 410 sprint car, the guys are assembling the front axle. The process can be a bit messy, but the finished product is so worth it!
-
Learn how to assemble one of our bolt on nine-inch Ford disc brake kits in this step-by-step guide.
-
Learn how to assemble a rear axle assembly as we put together ours for the 410 Sprint Car Build. Our team of builders continues to make progress on the car!
-
After getting the control arms and drop spindles installed last time, we are dying to see what it looks like on the ground. Today we are working with the Speedway Deluxe Disc Brake Kit. Josh and Joe are on a roll!
