-7%
-7%
|
#83514010790R
$836.79
/each
Factory Shipped
$905.51
Save $68.72
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Caliper Pistons | Four |
| Fitting Attachment 1 | Female Threads |
| Parking Brake Provision | No |
| Fittings Included | Yes |
| Brake Pads Included | Yes |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyApplication
Charts
Installation Instructions (PDF)

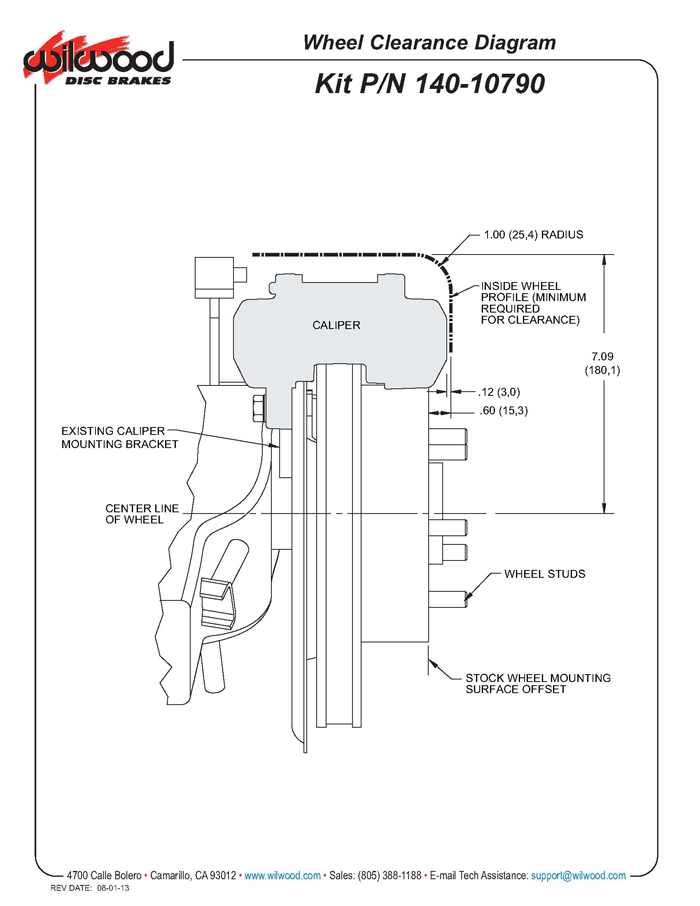

Wheel Clearance Diagram (JPG)
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-10790-R |
| Brand | Wilwood |
| Caliper Pistons | Four |
| Fitting Attachment 1 | Female Threads |
| Parking Brake Provision | No |
| Fittings Included | Yes |
| Brake Pads Included | Yes |
| Caliper Finish | Powder Coated |
| Material Type | Aluminum |
| GENERAL | |
| Piston Diameter | 1.38" |
| Caliper Material Type | Aluminum |
| Caliper Color | Red |
| Thread Size | 3/8"-24 |
| Bracket Included | No |
| Color | Red |
| Finish | Powder Coated |
| Total Piston Area | 3.00 sq. in. |
| Pad Volume | 3.90 cu. in. |
| Mount Type | Lug |
| Caliper Type | D8-4 |
| Piston Type | Stainless |
| Brake Pad Compound | BP-10 |
| Brake Pad Material | Semi-metallic |
| Position | Rear |
| GTIN Code | 889545010510 |
| Logo | Wilwood |
Be the first to ask a question.
1965-1982 Chevy Corvette
