Wilwood 140-10789-R D8-4 Front Caliper Kit, 65-82 Corvette C2/C3, Red

-7%

#83514010789R

Wilwood 140-10789-R D8-4 Front Caliper Kit, 65-82 Corvette C2/C3, Red

Name: Wilwood 140-10789-R D8-4 Front Caliper Kit, 65-82 Corvette C2/C3, Red
Brand: Wilwood
SKU: 83514010789R
Price: 836.79 USD
Availability: InStock

Write a Review

Ask a Question

Color:

Red

Anodize Black

Type:

Front

Rear

$836.79

/each

Factory Shipped

$905.51

Save $68.72

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

65-82 Chevy Corvette, Four Caliper Pistons, Red

See more details

Key Specs

Caliper Pistons	Four
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	Yes
Caliper Finish	Powder Coated

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-10789-R Details

D8-4 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-4 calipers provide low-maintenance performance, a huge weight savings, and high temperature reliability for street or track. D8-4 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most '67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16" or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound Smart Pads.

Application

1965 Chevrolet Corvette C-2
1966 Chevrolet Corvette C-2
1967 Chevrolet Corvette C-2
1968 Chevrolet Corvette C-3
1969 Chevrolet Corvette C-3
1970 Chevrolet Corvette C-3
1971 Chevrolet Corvette C-3
1972 Chevrolet Corvette C-3
1973 Chevrolet Corvette C-3
1974 Chevrolet Corvette C-3
1975 Chevrolet Corvette C-3
1976 Chevrolet Corvette C-3
1977 Chevrolet Corvette C-3
1978 Chevrolet Corvette C-3
1979 Chevrolet Corvette C-3
1980 Chevrolet Corvette C-3
1981 Chevrolet Corvette C-3
1982 Chevrolet Corvette C-3

Charts

Installation Instructions (PDF)

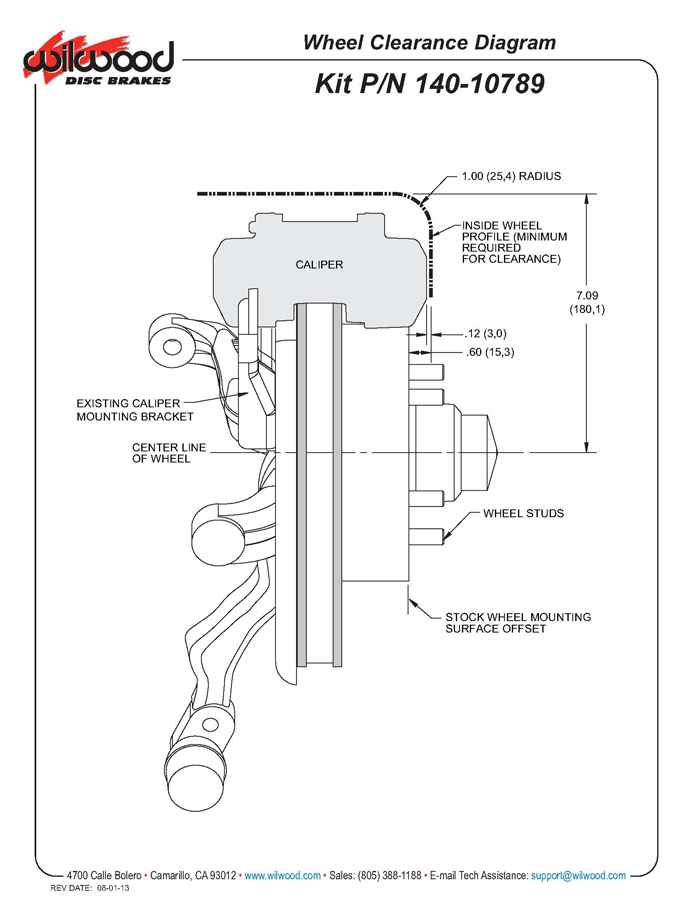

Wheel Clearance Diagram (JPG)

Guides & Documents

Brake Calipers Installation Instructions (83514010789R)

Wilwood 140-10789-R Specifications

KEY SPECS
MFG. Part #	140-10789-R
Brand	Wilwood
Caliper Pistons	Four
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	Yes
Caliper Finish	Powder Coated
Material Type	Aluminum

GENERAL
Piston Diameter	1.88"
Caliper Material Type	Aluminum
Caliper Color	Red
Bracket Included	No
Color	Red
Rotor Thickness	1.25"
Finish	Powder Coated
Total Piston Area	5.56 sq. in.
Pad Volume	3.90 cu. in.
Spindle Type	Factory Disc Spindle
Mount Type	Lug
Caliper Type	D8-4
Piston Type	Stainless
Brake Pad Compound	BP-10
Brake Pad Material	High-Friction Metallic
Position	Front
GTIN Code	889545010480
Notes	Kit contains 2 calipers, two brake lines and 1 set of pads.
Logo	Wilwood

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1965-1982 Chevy Corvette
