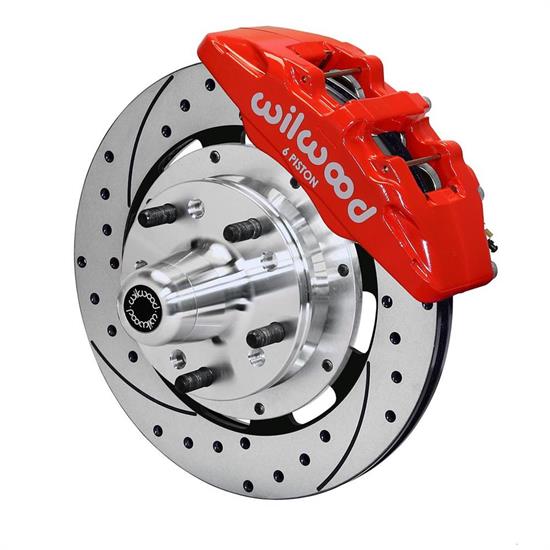

Wilwood 140-10742-DR DP6 Front Disc Brake Kit, 74-80 Pinto/Mustang II

Name: Wilwood 140-10742-DR DP6 Front Disc Brake Kit, 74-80 Pinto/Mustang II
Brand: Wilwood
SKU: 83514010742DR
Price: 1279.3 USD
Availability: LimitedAvailability
Rating: 5 (1 reviews)

1 Review

1 Question

Designed specifically for the 1974-1980 Fort Pinto/ Mustang II
Features a dual 5 on 4.5"/4.75" bolt pattern
12.19" rotors are designed to clear 15"-up wheels

$1,279.30

each

In Stock

Order soon, only 2 left in stock!

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern

Designed specifically for the 1974-1980 Fort Pinto/ Mustang II
Features a dual 5 on 4.5"/4.75" bolt pattern
12.19" rotors are designed to clear 15"-up wheels
Six piston calipers are powder coated red for added corrosion protection
Rotors feature a dilled and slotted design for enhanced heat dissipation

See more details

Key Specs

Position	Front
Bolt Pattern	Dual: 5 on 4.5" \| 4.75"
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-10742-DR Details

DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.

Application

1974 Ford Mustang II All
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All

Charts

Installation Instructions (PDF)

Wheel Clearance Diagram (JPG)

Guides & Documents

Disc Brake Kits Instruction Sheet (83514010742DR)

CA Prop 65

Wilwood 140-10742-DR Specifications

KEY SPECS
MFG. Part #	140-10742-DR
Brand	Wilwood
Position	Front
Bolt Pattern	Dual: 5 on 4.5" \| 4.75"
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Color	Red
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Spindle Type	Drop & Factory Disc Spindles
Rotor Style	Drilled & Slotted
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Front Caliper Piston Quantity	6
Front Caliper Finish	Powder Coated
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No

GENERAL
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Mount Type	Lug
OE Hub Offset	0"
Total Piston Area	5.06 sq. in.
Piston Type	Stainless
Pad Area	7.30 sq. in.
Pad Volume	2.4 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Stud Diameter 2	1/2-20
GTIN Code	889545010244
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum
