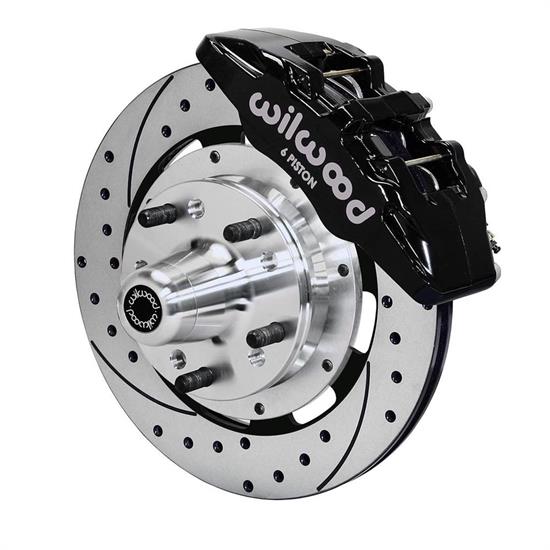

Wilwood 140-10742-D DP6 Front Disc Brake Kit, 74-80 Pinto/Mustang II
- This front brake disk kit is specifically designed for the 74-80 Pinto/Mustang II platform
- Kit includes DynaPro 6 forged billet calipers
- The 12.19" diameter rotors will work with 15 Inch-up wheels
$1,440.23
/each
In Stock
$1,613.05
Save $172.82
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 12.19 Inch Rotor Diameter, Black
- This front brake disk kit is specifically designed for the 74-80 Pinto/Mustang II platform
- Kit includes DynaPro 6 forged billet calipers
- The 12.19" diameter rotors will work with 15 Inch-up wheels
- Calipers have 6 pistons and are powder coated black for added protection
- A drilled and slotted design ensure proper heat dissipation
Key Specs
| MFG. Part # | 140-10742-D |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 12.19 Inch |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-10742-D Details
Wilwood 140-10742-D Details
DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.
Application
1974 Ford Mustang II All
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All
Charts
Installation Instructions (PDF)
Wheel Clearance Diagram (JPG)
Specs
Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.
Guides & Documents
Wilwood 140-10742-D Specifications
Wilwood 140-10742-D Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-10742-D |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Drop & Factory Disc Spindles |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 12.19 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Black |
| Front Caliper Piston Quantity | 6 |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545010237 |
| Rotor Thickness | 0.81" |
| Stud Diameter | 1/2-20 |
| Mount Type | Lug |
| OE Hub Offset | 0" |
| Total Piston Area | 5.06 sq. in. |
| Piston Type | Stainless |
| Pad Area | 7.30 sq. in. |
| Pad Volume | 2.4 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Iron |
| Vane Count | 32 Straight Vane |
| Bedded | No |
| Balanced | No |
| Brake Lines Included | No |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
| Stud Diameter 2 | 1/2-20 |
Ratings & Reviews
5
1 Review
Ratings & Reviews
5
1 Review
5
1 reviews
5
1
4
0
3
0
2
0
1
0
Filter by Ratings
Exactly what I needed/wanted
5.0
5 years ago
Mark
Idaho
Verified
Worked perfect on my 1949 Ford Woody with a Mustang II front clip. Shim washers between caliper and bracket are a PIA to get installed.
Showing 1 of 1 reviews
Questions & Answers
Questions & Answers
Be the first to ask a question.
Fitment
Fitment
1974-1978 Ford Mustang II
1974-1980 Ford Pinto
1975-1980 Mercury Bobcat
