Part # 83514010739

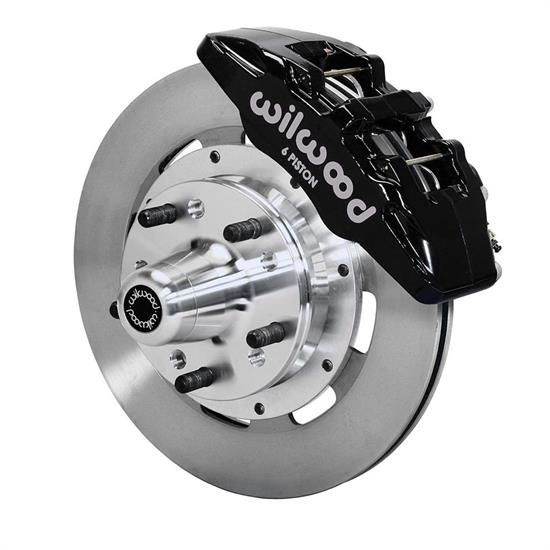

Wilwood 140-10739 DP6 12.19 Inch Front Disc Brake Kit, 1937-49 Ford
by
Wilwood
$1,160.86
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before August 29th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern
See more details
Key Specs
| MFG. Part # | 140-10739 |
| Brand | Wilwood |
| Position | Front |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.
Application
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
Charts
Installation Instructions (PDF)
Wheel Clearance Diagram (JPG)
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-10739 |
| Brand | Wilwood |
| Position | Front |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| GENERAL | |
| Bolt Pattern | Dual: 5 on 4.5" | 4.75" |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Color | Black |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Thickness | 0.81" |
| Stud Diameter | 1/2-20 |
| Front Suspension Type | Straight Axle |
| Spindle Type | Factory Drum Spindle |
| Mount Type | Lug |
| Total Piston Area | 5.06 sq. in. |
| Piston Type | Stainless |
| Pad Area | 7.30 sq. in. |
| Pad Volume | 2.4 cu. in. |
| Brake Pad Compound | BP-10 |
| Rotor Style | Plain Face |
| Caliper Type | Dynapro 6 |
| Rotor Finish | Natural |
| Rotor Material Type | Cast Iron |
| Vane Count | 32 Straight Vane |
| Bedded | No |
| Balanced | No |
| Stud Diameter 2 | 1/2-20 |
| GTIN Code | 889545010107 |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 12.19 Inch |
| Rear Rotor Included | No |
| Front Caliper Included | Yes |
| Front Caliper Piston Quantity | 6 |
| Front Caliper Finish | Powder Coated Black |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
