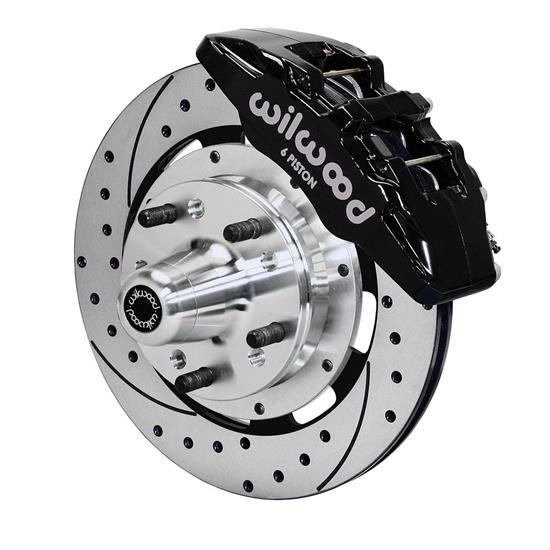

Wilwood 140-10739-D DP6 12.19 Inch Front Disc Brake Kit, 1937-49 Ford
Wilwood 140-10739-D DP6 12.19 Inch Front Disc Brake Kit, 1937-49 Ford

Wilwood 140-10739-D DP6 12.19 Inch Front Disc Brake Kit, 1937-49 Ford

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 12.19 Inch Rotor Diameter, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-10739-D DP6 12.19 Inch Front Disc Brake Kit, 1937-49 Ford
Wilwood 140-10739-D DP6 12.19 Inch Front Disc Brake Kit, 1937-49 Ford
X
Zoomed In Image
We estimate this item will ship on or before June 5th.
Part # 83514010739D
Save 10%
$1,074.99
$1,203.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Black
MFG. Part #:
140-10739-D
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
0.81"
Stud Diameter:
1/2-20"
Spindle Type:
Factory Drum Spindle
Mount Type:
Lug
Total Piston Area:
5.06 sq. in.
Piston Type:
Stainless
Pad Area:
7.30 sq. in.
Pad Volume:
2.4 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Dynapro 6
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545010114

Info

DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.

Installation Instructions (PDF)

Wheel Clearance Diagram

Application

Ford Ford 1 Ton Pickup 1937-1947 Base
  Ford Ford 1/2 Ton Pickup 1937-1947 Base
  Ford Ford 3/4 Ton Pickup 1937-1947 Base
  Ford Ford Deluxe 1939 All Tudor & Fordor (922A)
  Ford Ford Deluxe 1940-1948 Base
  Ford Ford Model 1 GA Truck 1941 Base
  Ford Ford Model 11 A 1941 Base
  Ford Ford Model 2 GA Special 1942 Base
  Ford Ford Model 21 A Deluxe 1942 Base
  Ford Ford Model 74 1937 All Tudor / Fordor / SW
  Ford Ford Model 78 1937 All Tudor / Fordor / SW
  Ford Ford Model 81 A 1938 All Tudor / Fordor / SW
  Ford Ford Model 82 A 1938 All Tudor / Fordor / SW
  Ford Ford Model 85 1938 Base
  Ford Ford Pickup 1940 Base
  Ford Ford Sedan Delivery 1937-1947 Base
  Ford Ford Standard 1939-1940 Base
  Ford Ford Super Deluxe 1941-1948 Base
Some parts are not legal for use in California or other states with similar laws/regulations
